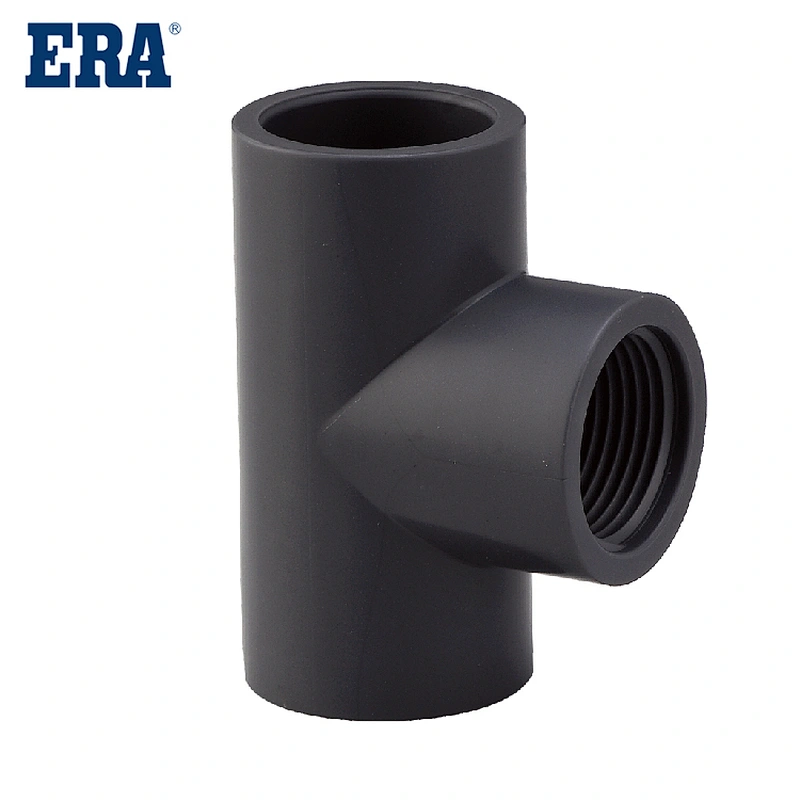

ERA Piping Systems, PVC Pipe Fitting ,Female Tee, BS005, BS4346 (BS 1452-3) ,Socket , Kitemark
System：
BS EN ISO 1452-3:2010 Plastics piping systems for water supply and for buried and above-ground drainage and sewerage under pressure - unplasticized poly(vinyl chloride) (PVC-u). Fittings (ISO 1452-3:2009, corrected version 2010-03-01)
System：
BS EN ISO 1452-3:2010 Plastics piping systems for water supply and for buried and above-ground drainage and sewerage under pressure - unplasticized poly(vinyl chloride) (PVC-u). Fittings (ISO 1452-3:2009, corrected version 2010-03-01)
BS EN 1452 the scope extended from the supply of water under pressure at approximately 20°C (cold water) to water mains and services buried in the ground, and buried / above ground drainage and sewerage under pressure up to and including 25°C (cold water).

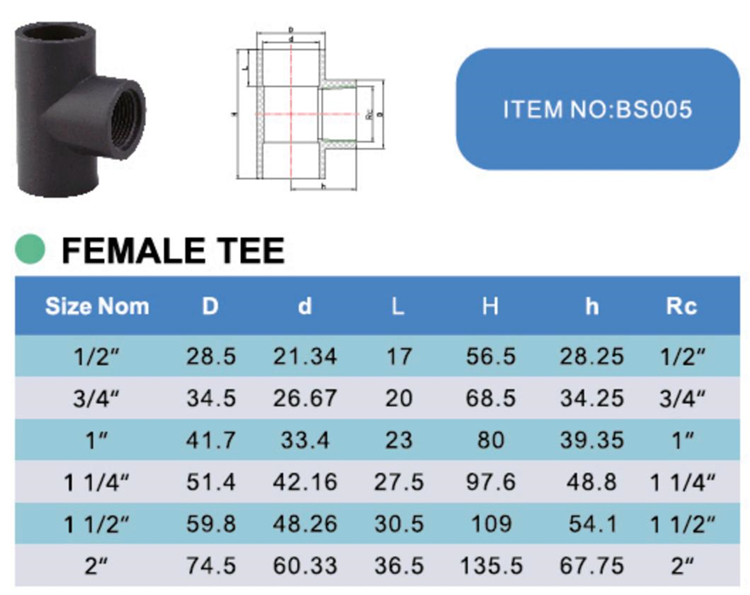

| Model Number | BS005 | Material | PVC |
| Description | FEMALE TEE | Standard | BS1452-3 |
| Temperature | Max 60°C / 140°F | Working Pressure | PN16，16Bar， 1.6Mpa |
| Size | 1/2‘’-2‘’ | Certificate | NSF UPC |
| Connection | Socket or Thread | Color | BLUE GREY |
What precautions should be taken when installing PVC pipes?
1. When installing, measure the size and break the pipe to ensure the fracture level.
2. Not all PVC pipes can be inserted before connection, so try to insert them into the socket. When gluing, if there is oil, dust or even moisture, it should be removed.
3. The inspection port should be set at the bottom and top of the drainage pipe, and the center of the inspection port should be one meter away from the ground.
4. During the installation process, the pipes should be lowered gently to avoid damage during installation and to ensure that the pipes are complete and clean. After installation, a pressure test should be performed to confirm that there is no leakage in each interface. Otherwise, it should be replaced and reinstalled immediately.
PVC water supply pipes have many advantages and uses. They not only play an important role in daily life, but are also an indispensable part of industry.
Main Products：
Some of the most important properties of PVC are:
• Density. PVC is dense compared to other plastics.
• low cost. PVC is readily available and inexpensive.
• Rigidity. Rigid PVC ranks among the best in terms of stiffness and durability.
• strength. Rigid PVC has excellent tensile strength, which means it takes a lot of force to stretch and break.
Advantages of using PVC
PVC is both durable and versatile, offering many advantages when it comes to plumbing.
1. Sturdy and durable. Compared to cast iron pipes, recyclable PVC pipes are less likely to crack or break. It can also last at least 50 years.
2. Economical and affordable. Compared to materials like wood or copper, PVC is cost-effective, giving you the best value for your money.
3. Light. PVC materials are lighter than other building materials, so shipping costs are lower.
4. Fireproof. PVC plastic's high chlorine and low oxygen content make it fire-resistant.
5. Resistant to chemical corrosion. PVC rarely reacts when in contact with other substances such as oils, mineral acids, fats, salts, alkalis, and alcohols.
6. Versatile. PVC can be molded into a variety of shapes and forms and can also be integrated into fabrics for increased durability.
FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
