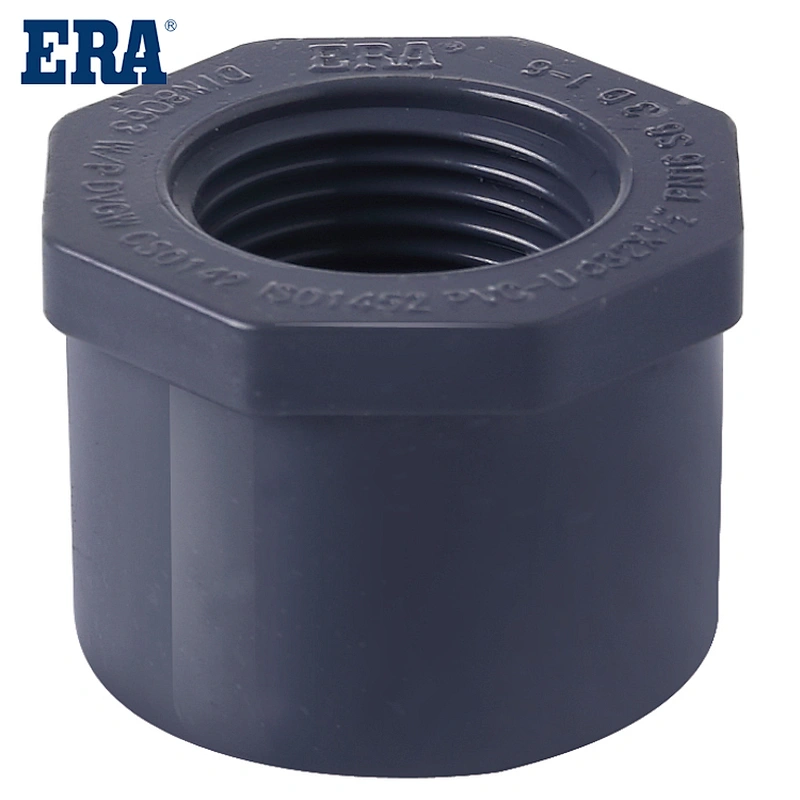

ERA Piping Systems, PVC Fittings , Female Reducing Ring , PN16(DIN8063) Socket, reducer bushing for DVGW
System：
Plastic piping systems used for the supply of water under pressure up to and including 25 °C, used for human consumption and for general purposes as well as for drainage and sewerage water under pressure.
EN ISO 1452, specifies the requirements for a piping system and its components intended to be used for water supply and drainage and sewerage under pressure made from PVC-U.
EN ISO 1452 Plastics piping systems is applicable to fittings in piping systems intended for the supply of water under pressure up to and including 25 °C (cold water), intended for human consumption and for general purposes as well as for waste water under pressure. It is also applicable to components for the conveyance of water and waste water up to and including 45 °C.
Scope：
Water mains and services buried in the ground.
Conveyance of water above ground for both outside and inside buildings.
Buried and above ground drainage and sewerage under pressure.

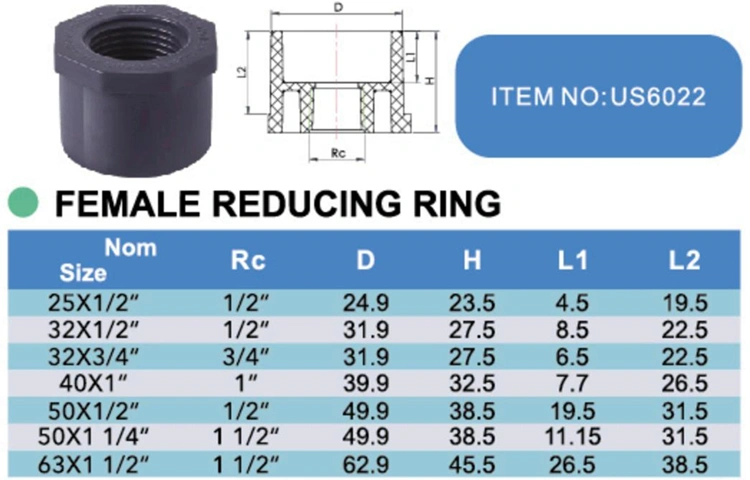

| Model Number | US6022 | Material | PVC |
| Description | FEMALE REDUCING RING | Size | 25*1/2''-63*1 1/2'' |
| Standard | DIN8063 | Color | BLUE GREY WHITE |
| Working Pressure | PN16 ,16Bar, 1.6Mpa | Temperature | Max 60°C / 140°F |
| Connection | Socket | Certificate | CE DVGW |
Fields of application：
Water supply in Building.
Governmental projects
Infrastructure construction and building.
Main Products：
Things to note
1. When transporting and installing pipelines, avoid touching sharp objects to prevent pipeline damage.
2. During pipeline installation, organic pollutants such as paint should be prevented from coming into contact with pipes and fittings.
3. When installing special pipe fittings with metal inserts connected to metal pipes, do not use excessive force to avoid damaging the threaded fittings and causing leakage at the connection.
4. When heating pipes and fittings, excessive heating should be prevented to cause the thickness to become thinner. The pipe is deformed within the pipe fitting.
5. Rotation is strictly prohibited during hot melt intubation and correction.
6. There must be no open flames at the operation site, and it is strictly prohibited to bend pipes with open flames.
7. Exposures where installation is interrupted or completed must be temporarily closed to prevent debris from entering.
