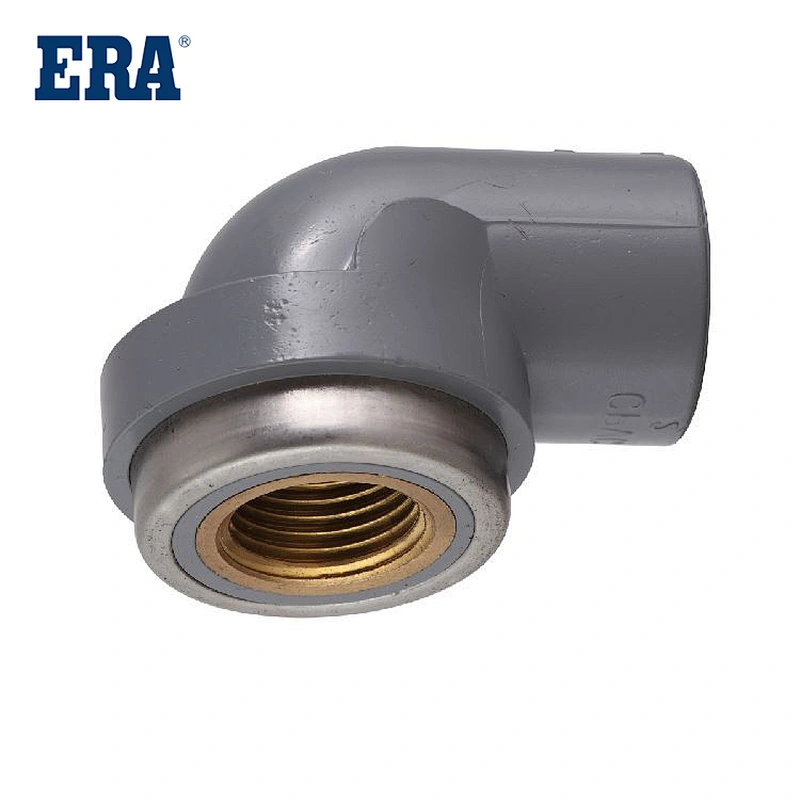

Female Elbow With Brass

Model NO.: UP8S016

Era Manufacturer Hot Sale PVC/UPVC/Pressure Pipe fittings NSF Certificate SCH80 Female Elbow With Brass
Main features of PVC pipes
1. Very light in weight, easy to load and unload, low in density and easy to construct.
2. It has good corrosion resistance, acid resistance, alkali resistance and corrosion resistance, and is very suitable for the chemical industry.
3. The fluid resistance is very small. The smoothness and roughness coefficient of the inner wall of the PVC pipe is only 0.009, and the fluid resistance is small, which greatly improves the hydraulic conditions of the pipe network and reduces the system operating cost.
4. High mechanical strength, good pressure resistance, impact resistance and tensile strength.
5. The construction is simple, the pipeline connection construction is quick and easy, and the construction cost is low.
6. Cheap cost, low price, convenient transportation and construction, long life, and low overall cost.
7. No impact on water quality. Dissolution experiments have proven that it does not impact water quality and is suitable for large-scale promotion and application.
8. The fluid resistance is very small, the PVC pipe wall is very smooth, and the friction coefficient of the pipe wall is very small, which can speed up the transportation time of the medium, so the transportation capacity is much better than concrete of the same diameter.
9. PVC material will not be bitten by rodents, and its service life will be much longer than that of materials that are easy to bite, so the use of PVC pipes in many fields can be guaranteed.

Product Description

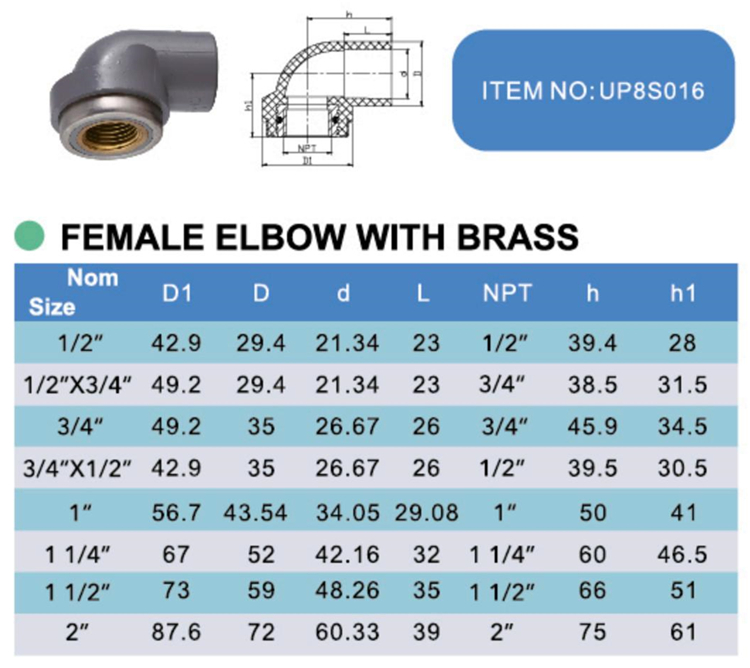

ERA Piping Systems, PVC Pressure Pipe, Female Elbow With Brass , UP8S016 , Schedule 80 (ASTM D2467), NSF-pw & UPC

System：PVC pipe system
Specification：

The schedule refers to the pipe wall thickness. The higher the schedule, the thicker is the pipe wall.For example: 2-inch nominal size steel pipe: schedule 40 has a wall thickness of 0.154 inches and schedule 80 has a wall thickness of 0.218 inches.Schedule 40 and Schedule 80 have the main difference of sizing and diameter. A schedule 80 pipe has a thicker wall even though its exterior diameter is similar to a schedule 40 pipe.

Referenced Standards：SCH80

Model Number	UP8S016	Material	PVC
Description	FEMALE ELBOW WITH BRASS	Standard	SCH80
Temperature	Max 60°C / 140°F	Working Pressure	PN16,16Bar, 1.6Mpa
Size	1/2''-2''	Certificate	NSF UPC
Connection	SOCKET OR THREAD	Color	BLUE GREY WHITE

PVC is both durable and versatile, offering many advantages when it comes to plumbing.
1. Sturdy and durable. Compared to cast iron pipes, recyclable PVC pipes are less likely to crack or break. It can also last at least 50 years.
2. Economical and affordable. Compared to materials like wood or copper, PVC is cost-effective, giving you the best value for your money.
3. Light. PVC materials are lighter than other building materials, so shipping costs are lower.
4. Fireproof. PVC plastic's high chlorine and low oxygen content make it fire-resistant.
5. Resistant to chemical corrosion. PVC rarely reacts when in contact with other substances such as oils, mineral acids, fats, salts, alkalis, and alcohols.
6. Versatile. PVC can be molded into a variety of shapes and forms and can also be integrated into fabrics for increased durability.

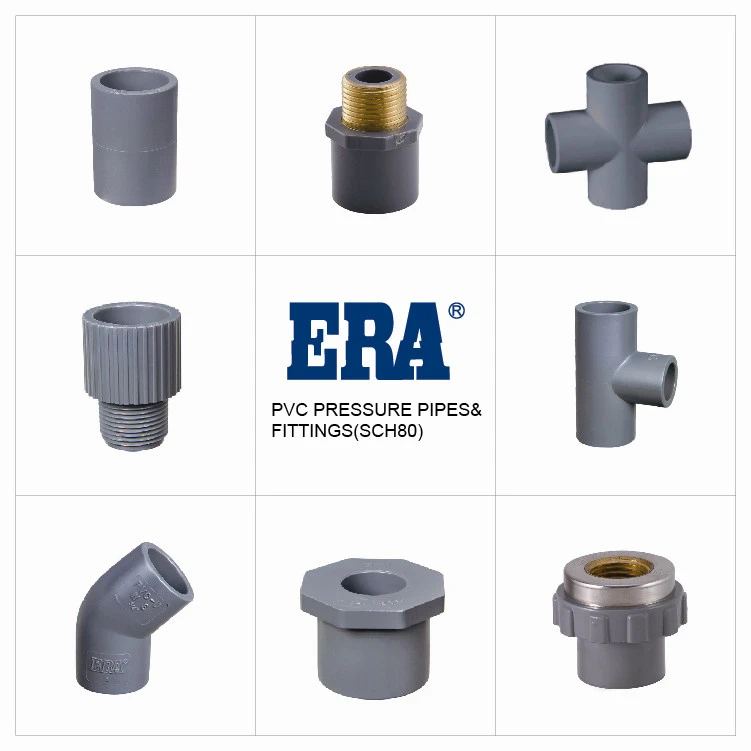

Main Products：

PVC pipe fittings product characteristics
1. High ring stiffness: The pipe wall adopts a reasonable hollow ring structure design, which greatly improves the ring stiffness of the pipe and can withstand greater environmental pressure under the same material.
2. Low fluid resistance: the inner wall is smooth and the friction resistance is significantly less than that of concrete pipes. Practice has proved that under the same slope, the same flow rate can be achieved by using a smaller diameter double-wall corrugated pipe. Under the same pipe diameter, double-wall corrugated pipes can reduce the slope and effectively reduce the amount of excavation.
3. Good connection tightness: The socket connection uses an elastic sealing ring, and the connection tightness is obviously better than that of metal pipes and concrete pipes.
4. Excellent corrosion resistance: It has excellent corrosion resistance against acid, alkali, salt and other media, and its corrosion resistance is significantly better than that of metal pipes and concrete pipes.
5. Simple construction: light weight, long length (fewer joints), low requirements for pipe trenches and foundations, convenient connection, fast construction, and low overall price.
6. Long service life: The pipe has strong wear resistance and long service life.
