ERA Piping Systems, PVC Pipe Fitting ,Female Adaptor , BS009, BS4346 (BS 1452-3) ,Socket , Kitemark
System：
BS EN ISO 1452-3:2010 Plastics piping systems for water supply and for buried and above-ground drainage and sewerage under pressure - unplasticized poly(vinyl chloride) (PVC-u). Fittings (ISO 1452-3:2009, corrected version 2010-03-01)
1.Piping networks for piping system in water treatment plant.
2.Piping networks for irrigation, normal water transport for industry.
3.Chemical Process Industry
4.Dimensions: BS EN 1452 Part 1 & 2 (formerly BS 3505)
5.Pipe length: 6m with plain ends

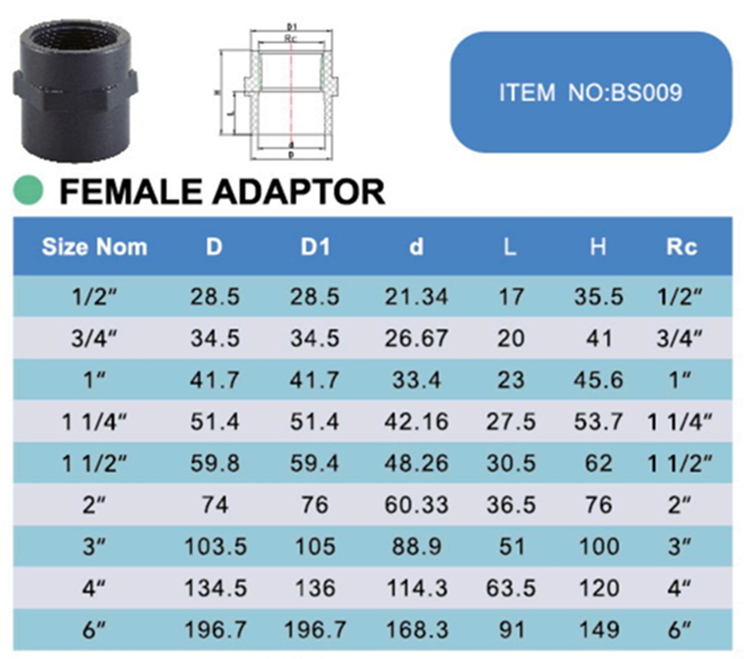

| Model Number | BS009 | Material | PVC |

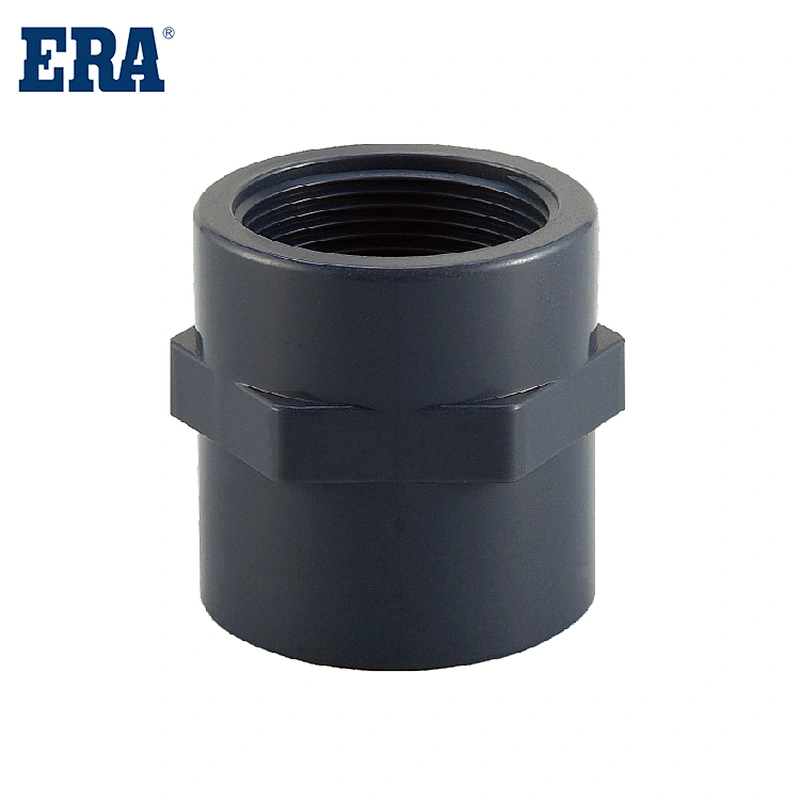

| Description | FEMALE ADAPTOR | Standard | BS1452-3 |
| Temperature | Max 60°C / 140°F | Working Pressure | PN16,16Bar, 1.6Mpa |
| Size | 1/2''-6'' | Certificate | KITEMARK |
| Connection | SOCKET OR THREAD | Color | BLUE GREY |
Things to note：
1. When transporting and installing pipelines, avoid touching sharp objects to prevent pipeline damage.
2. During pipeline installation, organic pollutants such as paint should be prevented from coming into contact with pipes and fittings.
3. When installing special pipe fittings with metal inserts connected to metal pipes, do not use excessive force to avoid damaging the threaded fittings and causing leakage at the connection.
4. When heating pipes and fittings, excessive heating should be prevented to cause the thickness to become thinner. The pipe is deformed within the pipe fitting.
5. Rotation is strictly prohibited during hot melt intubation and correction.
6. There must be no open flames at the operation site, and it is strictly prohibited to bend pipes with open flames.
7. Exposures where installation is interrupted or completed must be temporarily closed to prevent debris from entering.
Main Products：
Main features of PVC pipes：
1. Very light in weight, easy to load and unload, low in density and easy to construct.
2. It has good corrosion resistance, acid resistance, alkali resistance and corrosion resistance, and is very suitable for the chemical industry.
3. The fluid resistance is very small. The smoothness and roughness coefficient of the inner wall of the PVC pipe is only 0.009, and the fluid resistance is small, which greatly improves the hydraulic conditions of the pipe network and reduces the system operating cost.
4. High mechanical strength, good pressure resistance, impact resistance and tensile strength.
5. The construction is simple, the pipeline connection construction is quick and easy, and the construction cost is low.
6. Cheap cost, low price, convenient transportation and construction, long life, and low overall cost.
7. No impact on water quality. Dissolution experiments have proven that it does not impact water quality and is suitable for large-scale promotion and application.
8. The fluid resistance is very small, the PVC pipe wall is very smooth, and the friction coefficient of the pipe wall is very small, which can speed up the transportation time of the medium, so the transportation capacity is much better than concrete of the same diameter.
9. PVC material will not be bitten by rodents, and its service life will be much longer than that of materials that are easy to bite, so the use of PVC pipes in many fields can be guaranteed.
