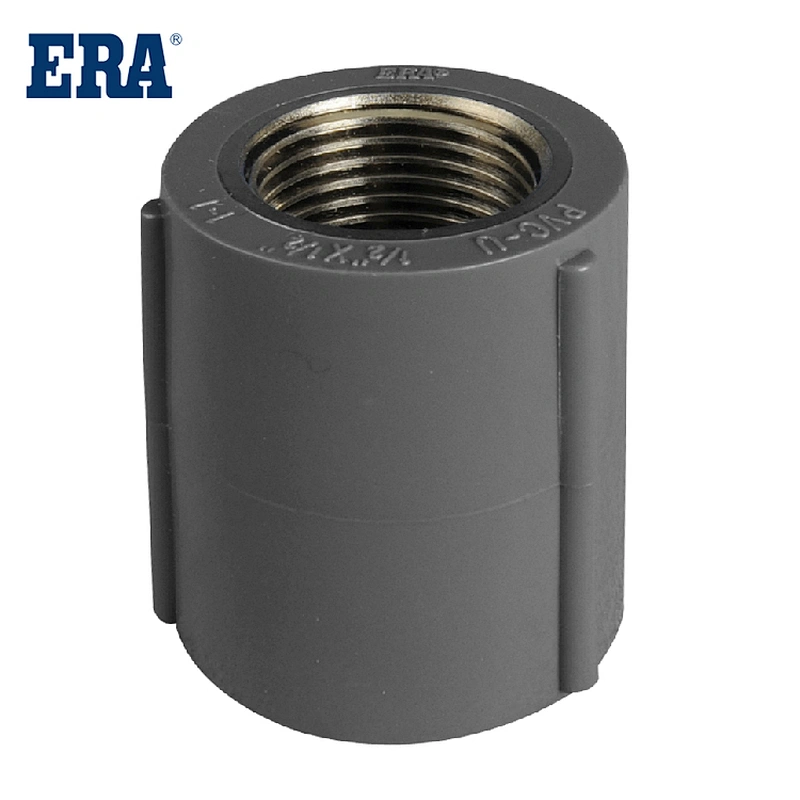

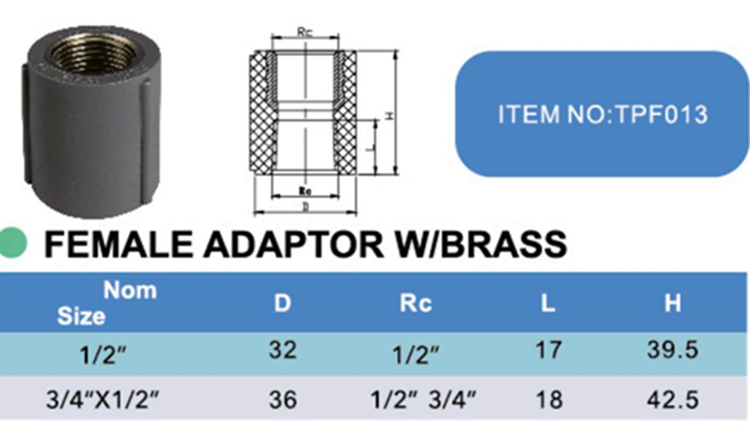

ERA Piping Systems, PVC Pipe Fitting, Female Adaptor W/Brass ，TPF013 ，BS STANDARD, CE

Specification：
Pipe and fittings shall be manufactured from virgid
Not UV resistant

Fields of application：
Piping networks for water supply in building.
Piping networks for irrigation, normal water transport for industry.

System：
Thread designation BSPP and BSPT
BSPT male threads seal against threads of fixed BSPT female.
BSPP male and BSPP female flat face swivel require a suitable soft washer between faces to seal.
Thread size refers to the nominal bore of the pipe.
PVC fittings have proven superior performance in the industrial-piping, water-treatment, commercial-plumbing, irrigation and pool markets.

Main Products：

Broad market prospects

The global development trend of PVC industry chain is rapid, and the market prospect is broad. All countries in the world are interested in the development potential of PVC and its benefits to ecological environment protection. PVC is proving its function and influence to everyone with its excellent and distinctive characteristics. Power is irreplaceable by all other commodities. It is necessary for social and economic development, and it is necessary for ecological and environmental protection. It is the general trend of the development of social civilization.

Application
PVC industrial suction pipe
The essence of PVC pipe is a vacuum plastic-absorbing film, which is used for the surface packaging of various types of panels. Therefore, it is also called decorative film and adhesive film. It is used in many industries such as building materials, packaging, medicine, etc. Among them, the building materials industry accounts for the largest proportion, accounting for 60%, followed by the packaging industry, and several other small-scale application industries.
PVC pipes have chloride ions precipitated after being used for a long time. They are not suitable for tap water pipes. They have poor impact resistance and are not suitable for gas pipelines. However, PVC pipes are cheap and have high hardness. They expand when heated and shrink when cooled due to the influence of temperature. Therefore, PVC pipes are classified as PVC. There are two types of water supply pipes and drainage pipes, which are used for municipal water supply and drainage, industrial water supply and drainage, civil water supply and drainage, irrigation, vegetation watering, etc.
construction maintenance
There are three main ways to connect PVC pipes: sealing rings, bonding and flange connections. Pipes with a diameter of 100 mm or more generally use rubber ring joints; pipes with a diameter of less than 100 mm generally use adhesive joints, and some use union joints. When pipes cross sewers or other pipes, metal pipes are generally used. In this case, plastic pipes and metal pipes are connected by flanges. The connections between the front and rear of the valve and the pipeline are also flanged.
1. When small-diameter pipes are bonded with solvent, the socket must be rounded to form a bevel, and the fracture must be flat and vertical to the axis, so that the bonding can be firm and water leakage can be avoided.
2 Generally, PVC pipes with a diameter of 100 mm or more use rubber ring interfaces. Before installation, personnel must be arranged to chamfer the pipe insertion part, and the quality of the rubber ring must also be checked to see if it is qualified. The socket, rubber rings, etc. must be wiped clean during installation.
3. The trench excavation for traditional pipeline installation only requires that the pipeline can be placed into the trench and sealed. When the original soil layer is not loosened, there is no need to pressurize and compact the cushion.
4 Generally, the branch pipes of PVC pipes can be split using tees or vertical water stoppers. During construction, you can add a saddle-shaped fitting and half a two-in-one tee, and tighten it with U-shaped bolts, thus thickening the pipe wall, and then directly drill holes on it to open teeth, and then use externally threaded plastic parts to connect them. The test shows that the pressure test and acceptance after construction using this method can fully meet the requirements of the specification. In addition, thrust piers should be installed at locations where the water flow in the pipe generates thrust, such as elbows, tees, and pipe end sealing plates, to withstand the thrust of the water flow.
5. As a new type of non-metallic pipe, PVC pipe cannot detect its specific location using existing metal pipe detection equipment. However, this problem can be easily solved by burying a wire on the pipe during pipeline construction.
