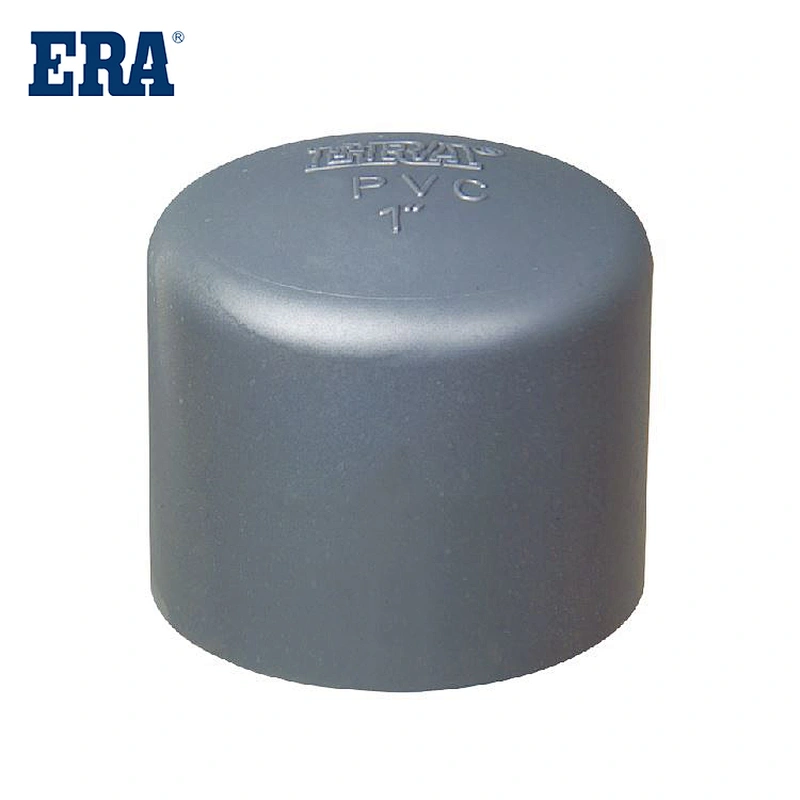

ERA Piping Systems, PVC Pressure Pipe, End Plug ,US8016, Schedule 80 (ASTM D2467), NSF-pw & UPC
Specification：
PVC Schedule 80 Fittings, ASTM D2467, NSF/ANSI Standard 14, NSF/ANSI Standard 61, 2,000 psi at 73F, Maximum service temperature 140F, Socket connection.
System：
PVC Schedule 80 Pressure Pipe and Fitting System
Scope：
For customers who do not require fabrication grade pipe, you can choose to use our Sch 40 brand. Schedule 80 PVC is gray in color and is more resistant to crushing and puncture than Schedule 40 PVC pipe and fittings.

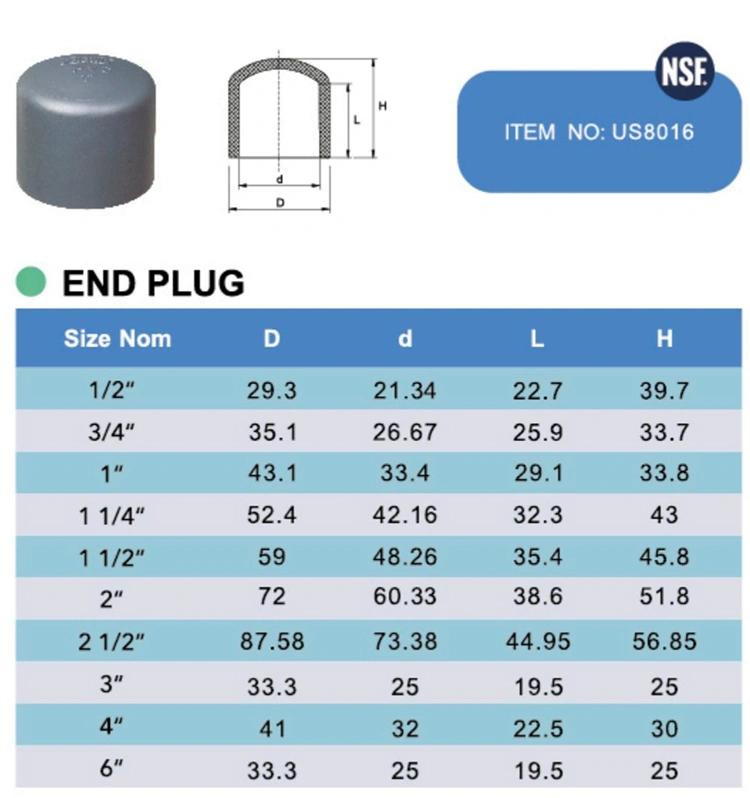

| Model Number | US8016 | Material | PVC |
| Description | END PLUG | Standard | SCH40 |
| Temperature | Max60°C / 140°F | Working Pressure | PN10，10Bar，1.0Mpa |
| Size | 1/2''-6' | Certificate | NSF UPC |
| Connection | SOCKET OR THREAD | Color | WHITE、GREY、BLACK |
FIELDS OF APPLICATION
1.Toxic and corrosive chemicals industry, for the flow of aggressive fluids.
2. Construction Industry for internal and external water pipelines network .
3.Solar water heating system
4.Barge loading and unloading Tank storage
5.Pipe rehabilitation in both plant and out of plant piping
Main products：
Advantages of pipes：
1. It has good tensile and compressive strength: but its flexibility is not as good as other plastic pipes.
2. Small fluid resistance: The pipe wall of PVC-U pipe is very smooth and has very little resistance to fluid. Its roughness coefficient is only 0.009. Its water delivery capacity can be 20% higher than that of cast iron pipes of the same diameter and 40% higher than that of concrete pipes. %.
3. Excellent corrosion resistance and chemical resistance: PVC-U pipes have excellent acid resistance, alkali resistance, corrosion resistance, and are not affected by moisture and soil pH. No anti-corrosion treatment is required when laying pipes.
4. Good water tightness: PVC-U pipes have good water tightness regardless of whether they are connected by bonding or rubber rings.
5. Anti-gnawing: PVC-U pipe is not a nutrient source, so it will not be eroded by rodents. According to tests conducted by the National Sanitation Foundation in Michigan, rats will not bite PVC-U pipes.
6. Performance test: curing time, shrinkage rate, splitting strength, tensile properties, peel strength, thermal stability, potency period, storage period, release of harmful substances.
