CPVC DIN PIPES AND FITTINGS
ERA Piping Systems, CPVC Pipe Fitting ,CPVC PRESSURE PIPES, CP001, (DIN809) , CE
System：CPVC DIN 8079 Hot and Cold Domestic Water Distribution
Scope：CPVC is used for higher temperature applications than PVC, especially for handling hot corrosive liquids. With similar chemical and corrosion resistance to PVC.
Increased chlorine content gives CPVC superior thermal resistance. CPVC is not recommended for use with chlorinated or aromatic hydrocarbons, esters, or polar solvents such as ketones.
ERA CPVC materials conform to ASTM Cell Classification 23447-B (formerly designated as Type IV, Grade 1). The maximum recommended service temperature of CPVC products is 93°C (200°F).
Specification：Pipe and fittings shall be manufactured from virgin rigid chlorinated poly(vinyl chloride
Referenced Standards：DIN standard
Specification：

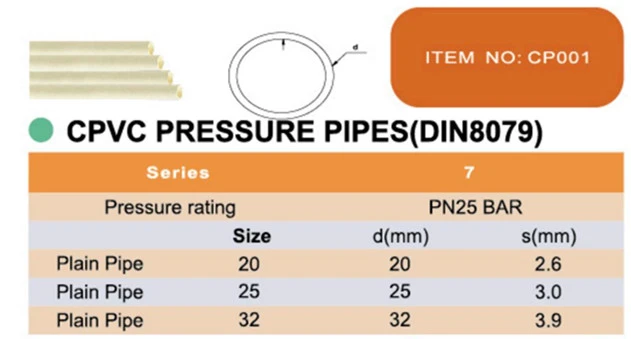

| Model Number | CP001 | Material | CPVC |
| Description | CPVC PRESSURE PIPES(DIN8079) | Size | 20-32MM |
| Standard | DIN8079 | Color | Ivory color |
| Brand | ERA | Temperature | 40-50°C（104-122°F） |
| Connection | Socket or Thread | Certificate | CE |
Product Advantages：
1. Good size stability
2. Low cost
3. Good weather resistance
4. With different proportions of plasticizer, can easily adjust the softness and hardness
Main Products：
CPVC is a new engineering plastic with broad application prospects. The resin is produced by chlorination modification of polyvinyl chloride (PVC) resin and is a new type of engineering plastic. The product is white or light yellow, tasteless, odorless, non-toxic loose granules or powder. After PVC resin is chlorinated, the irregularity of the molecular bonds increases and the polarity increases, which increases the solubility and chemical stability of the resin, thereby improving the material's heat resistance, acid resistance, alkali resistance, salt, oxidant resistance, etc. corrosion. Improved the mechanical properties of the heat distortion temperature of the resin, the chlorine content increased from 56.7% to 63-69%, the Vicat softening temperature increased from 72-82 ℃ to 90-125 ℃, the maximum operating temperature can reach 110 ℃, long-term use The temperature is 95°C. Among them, CORZAN CPVC has better performance indicators.
Advantage
1. Good dimensional stability
2. Low cost
3. Good weather resistance
4. Add plasticizer in different proportions to easily adjust the hardness and softness
FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
