DIN COMPRESSION FITTINGS PP FEMALE THREAD SOCKET
DIN COMPRESSION FITTINGS PP FEMALE THREAD SOCKET
DIN COMPRESSION FITTINGS PP FEMALE THREAD SOCKET
DIN COMPRESSION FITTINGS PP FEMALE THREAD SOCKET
DIN COMPRESSION FITTINGS PP FEMALE THREAD SOCKET
DIN COMPRESSION FITTINGS PP FEMALE THREAD SOCKET
DIN COMPRESSION FITTINGS PP FEMALE THREAD SOCKET
DIN COMPRESSION FITTINGS PP FEMALE THREAD SOCKET
DIN COMPRESSION FITTINGS PP FEMALE THREAD SOCKET
DIN COMPRESSION FITTINGS PP FEMALE THREAD SOCKET
DIN COMPRESSION FITTINGS PP FEMALE THREAD SOCKET
DIN COMPRESSION FITTINGS PP FEMALE THREAD SOCKET
DIN COMPRESSION FITTINGS PP FEMALE THREAD SOCKET

DIN COMPRESSION FITTINGS PP FEMALE THREAD SOCKET

PT008
ERA Piping Systems, PP Thread Fitting , FEMALE THREAD SOCKET , PT008 , (ENISO1587AS/NZS4129) , Watermark & WRAS More related products of PP THREAD FITTINGS TEE Production Process of PP THREAD FITTINGS TEE Company Introduction of PP THREAD FITTINGS TEE International Certificate of PP THREAD FITTINGS TEE
1. Odorless, tasteless and non-toxic. It is the lightest among commonly used resins
2. Good heat resistance, continuous use temperature can reach 110-120℃
3. Excellent electrical properties, good resistance to high-frequency electrical insulation, and good electrical insulation in humid environments

ERA PP Piping Systems, PP Compression Fitting Valves & Filters , PP Compression FEMALE THREAD SOCKET , male and female socket for PT008 , WRAS

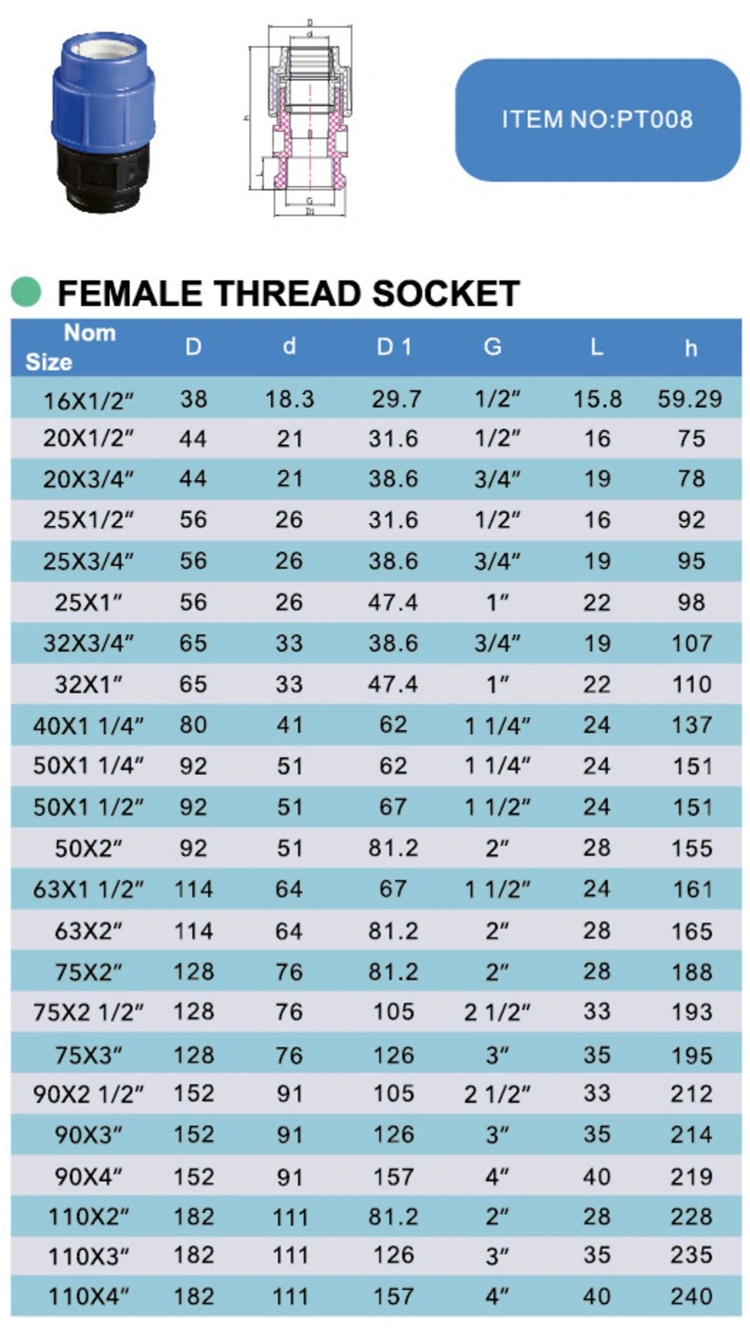

Model NumberPT008MaterialPP
DescriptionFEMALE THREAD SOCKETSize16*1/2''-110*4''
StandardENISO15874AS/NZS4129ColorBLUE CAP   BALCK BODY
Working PressurePN16 ,16Bar, 1.6MpaTemperatureMax 60°C / 140°F
ConnectionSocket OR BS THREADCertificateCE  WRAS  WATERMARK
PP FEMALE SOCKET
The high-quality material used in the product has an application in the area of water distribution, irrigation, swimming pools, and cable conduits.
Fast & Reliable Connection: Split ring opening has been optimized to make pipe insertion even easier.
PP Compression Fittings is fabricated and designed using premium quality basic material and progressive technology. Turning of pipes can be prevented by inner threaded during installation. The high-quality material used in the product has an application in the area of water distribution, irrigation, swimming pools, and cable conduits.
Specification：
Moreover, our PP Compression Fitting has an optimum sealing which works under all the conditions. With an adequate combination of these fittings it is possible to design and pressure piping application of fluide with PE pipes.
Referenced Standards：EN ISO1587 ; AS/NZS4129
Main Products：
What are the characteristics of PP?

The most important features of PP are as follows:

Chemical resistance: Diluted bases and acids do not react with PP, making it an ideal container for such liquids (e.g. cleaners, first aid products, etc.).

Elasticity and toughness: PP is elastic within a certain range of deflection and will undergo plastic deformation without breaking early in deformation, so it is generally considered to be a"ductile"material. Toughness is an engineering term defined as the ability of a material to deform (plastic rather than elastic) without breaking.

Fatigue resistance: PP retains its shape after extensive twisting and bending. This feature is especially valuable for making movable hinges.

Insulation: PP material has a high resistance, is an insulating material.

Transmittance: Can be made into a transparent color, but usually made into a natural opaque color, with a certain transmittance. If high transmittance is required, choose acrylic or PC.

PP is a thermoplastic with a melting point of about 130 degrees Celsius, at which point it becomes a liquid. Like other thermoplastics, PP can be heated and cooled repeatedly without significant degradation. Therefore, PP can be recycled and easy to recycle.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
