System:
Meets ASTM standard D2846 for hot and cold water distribution systems.
Meets NSF standard 61 for health effects of drinking water system components (NSF-pw G)
ERA CPVC will never pit or corrode like copper or other metal piping, ensuring a long lifespan without worry.
Scope:
The CPVC pipe has comparable corrosion resistance to PVC pipe yet it is suitable for handling corrosive material at temps 40 to 60 deg F higher than PVC.
CPVC fire sprinkler piping systems are approved for light hazard applications and for use in single and multifamily dwellings.
CPVC piping for potable hot and cold water distribution systems is recognized in all model plumbing codes.

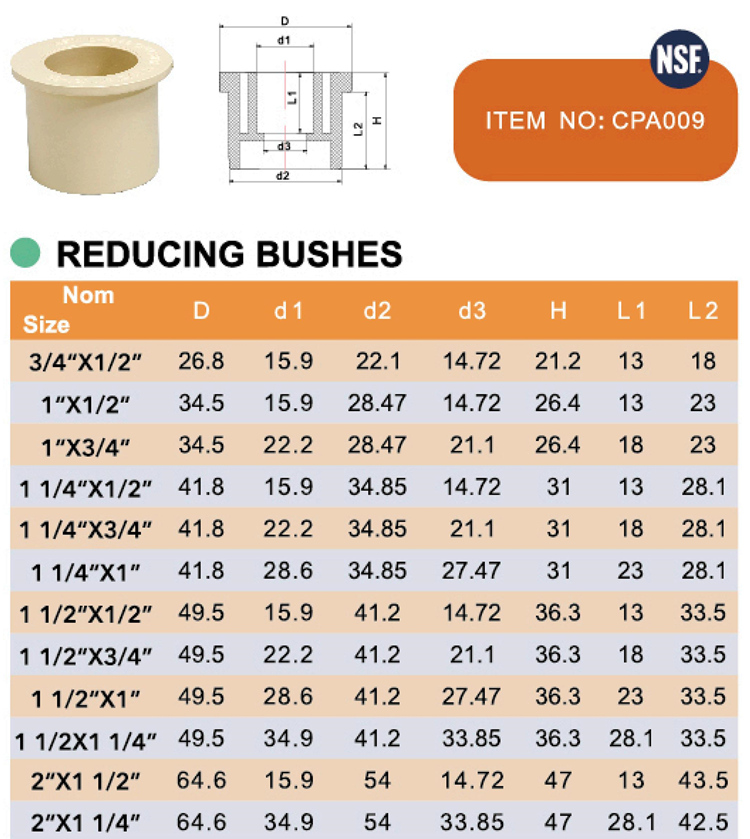

Specification:| Model Number | CPA009 | Material | CPVC |

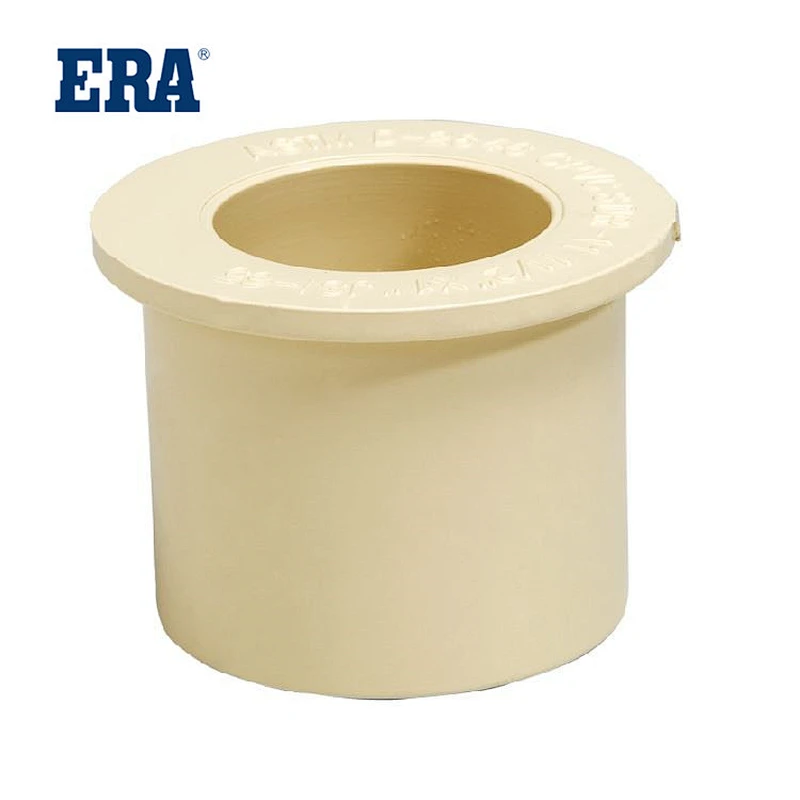

| Description | CPVC REDUCING BUSHES | Size | 3/4''x1/2''-2''x1 1/4'' |
| Standard | CTS / ASTM D2846 | Color | Ivory color |
| Brand | ERA | Temperature | Max82.2°C / 180°F |
| Connection | Socket or Thread | Certificate | NSF、UPC |



In addition to the general pvc drainage pipe light weight, corrosion resistance, scaling, long service life and other characteristics, but also has the following characteristics:
1, non-toxic, sanitary. Materials of molecular hydrogen, carbon, no toxic elements exist, sanitary and reliable, not only for hot and cold water pipes, but also can be used for pure drinking water systems.
2. Heat preservation and energy saving. pvc drainage pipe thermal conductivity 1/200 0.21w/mk, steel pipe.
3, good heat resistance. The softening point of the Vica pvc drain pipe is 131.5℃, and the highest working temperature can reach 95℃, which can meet the requirements of the building water supply and drainage standard hot water system.
4, long service life. Plastic pipe in the working temperature of 70℃, working pressure (P2) under the condition of 1.0mpa, the service life can reach 50 years; At room temperature (20℃), the service life can reach 100 years.
5, easy installation, reliable connection. pvc drainage pipe has good welding performance, pipe, pipe can be connected by hot melt and electric melt, easy installation, reliable connection, the strength of the connection is greater than the strength of dried vegetables themselves.
6. The use of recyclable materials. Plastic waste recycling cleaning, broken pipe, pipe fittings production. The recycled materials shall not exceed 10% of the total amount and shall not affect the product quality.
From ERA brand in China, ASTM F439 can be applied to hot and cold water pipes in sizes from 1/2 "to 6". 1. Sturdy: Since PVC-C is stronger than PP-R, PB and PEX, it requires fewer hooks and brackets. PVC-C can withstand greater pressure. At the same flow rate, compared with PP-R, PB and PEX pipes, PVC-C pipes can use smaller diameters. 2. Easy to install: It can be connected using special fusing agent, and no special tools are needed during installation. It is suitable for both surface and concealed installation. 3. Corrosion resistance: PVC-C is not easily permeable to oxygen, so the metal parts in the system will not corrode due to oxidation. 4. Good flame retardancy: The oxygen index of PVC-C is 60, its combustion ability is very low, it extinguishes immediately after leaving the fire, will not produce fire droplets, and can suppress the generation of smoke and toxic gases. 5. Not affected by residual water: Unlike polyhydrocarbon pipes, PVC-C pipes are not affected by residual water and will not crack or collapse after long-term use. 6. Alkali resistance: PVC-C has strong anti-corrosion ability against both alkali and alkali, and can be used to transport HCL and NaOH liquids.
It is most suitable for anti-corrosion equipment. It is easy to process, cut, weld and bend. High strength, high stiffness and high hardness: good electrical insulation; good chemical stability; self extinguishing; low water absorption: easy to bond and paint.
horter lengths offer convenience to customers,Can withstand higher pressure,50 year warranty,Guaranteed quality and high brand awareness,It is most suitable for anti-corrosion equipment. It is easy to process, cut, weld and bend. High strength, high stiffness and high hardness: good electrical insulation; good chemical stability; self extinguishing; low water absorption: easy to bond and paint.
Product advantages: The valve body is light in weight, has strong corrosion resistance, has a compact and beautiful appearance, is light in weight and is easy to install, has strong corrosion resistance, has a wide range of applications, the material is hygienic and non-toxic, wear-resistant, easy to disassemble, and is simple and easy to maintain. . By introducing the raw material requirements, design requirements, manufacturing requirements, performance requirements, test methods, system application requirements and the relationship between operating pressure and temperature in the international standards for plastic PVC valve products and test methods, you can understand the needs for plastic PVC valves Basic quality control requirements such as sealing test, torque test and fatigue strength test.
1. High quality corrosion resistance. 2. Light weight, convenient transportation and installation. 3. The project construction is convenient and has obvious economic benefits. 4. The electric tube also has the advantages of strong compressive strength, high temperature resistance, long service life, etc., and basically has no thermal conductivity.
Full size, good quality and low price, can be applied to hot and cold water, high brand popularity, good quality, 50 years warranty.From ERA brand in China, ASTM F439 can be applied to hot and cold water pipes in sizes from 1/2''-6''. CPVC is a new engineering plastic with broad application prospects. The resin is produced by chlorination modification of polyvinyl chloride (PVC) resin and is a new type of engineering plastic. The product is white or light yellow, tasteless, odorless, non-toxic loose granules or powder.
1. Light weight, convenient transportation and installation. 2. The project construction is convenient and has obvious economic benefits. 3. High quality corrosion resistance. 4. The electric tube also has the advantages The quality is guaranteed, the good price is cheap, the brand is well-known, the warranty is 50 years, in the peer product has been in the leading positionf strong compressive strength, high temperature resistance, long service life, etc., and basically has no thermal conductivity.
The tensile strength, flexural strength, flexural modulus and bearing capacity of cpvc are higher than those of pvc. Chemical corrosion resistance, heat resistance and weather resistance are higher than PVC pipes. The transportation of drinking water is not affected by chlorine in the water to ensure the quality of drinking water. Good flame retardancy, no dripping during combustion, slow combustion and diffusion, no toxic gas. Good flexibility, easy installation, can be connected with solvent.
