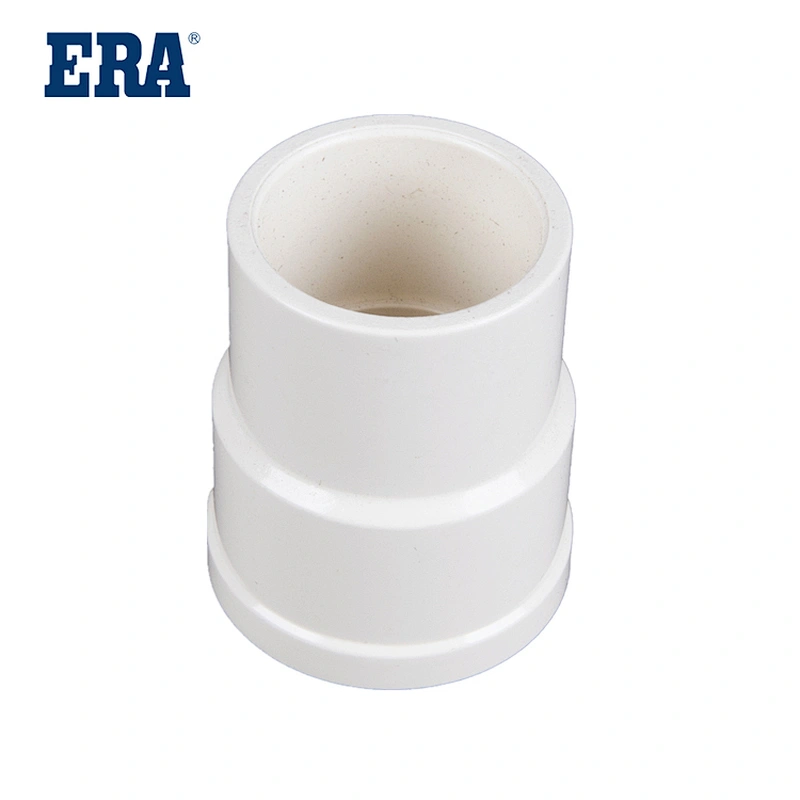

CPBS05
With different proportion of plasticizer, the hardness and softness can be easily adjusted
The chemical stability is increased, thus improving the heat resistance, acid resistance, alkali resistance, salt resistance, oxidant resistance, etc. of the material
Convenient construction with remarkable economic benefits
Excellent corrosion resistance
CPVC NBR PIPES AND FITTINGS
ERA Piping Systems, CPVC Pipe Fitting,  CPVC TO PVC TRANSITION COUPLING , CPBS05, NBR(ABNT NBR 15884) , NSF-pw & UPC

System：ERA CPVC has a rated working pressure of 100 PSI at 180 degrees Fahrenheit and 400 PSI at 73 degrees Fahrenheit.
Makes the job site safer by eliminating the need for an open flame to solder the joints together.

Scope：The CPVC pipe has comparable corrosion resistance to PVC pipe yet it is suitable for handling corrosive material at temps 40 to 60 deg F higher than PVC.
CPVC fire sprinkler piping systems are approved for light hazard applications and for use in single and multifamily dwellings.

Specification：The NBR plumbing products are made to copper tube outside diameter dimensions, in accordance with ABNT NBR 15884 specifications

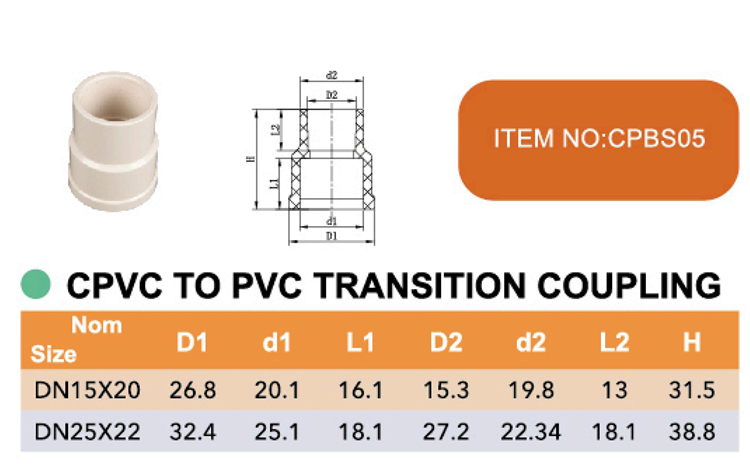

Model NumberCPBS05MaterialCPVC
DescriptionCPVC TO PVC TRANSITION COUPLINGSizeDN15x20-DN25x22
StandardNBR(ABNT NBR 15884)ColorIvory color
BrandERATemperatureMax82.2°C / 180°F
ConnectionSocket or ThreadCertificateNSF、UPC

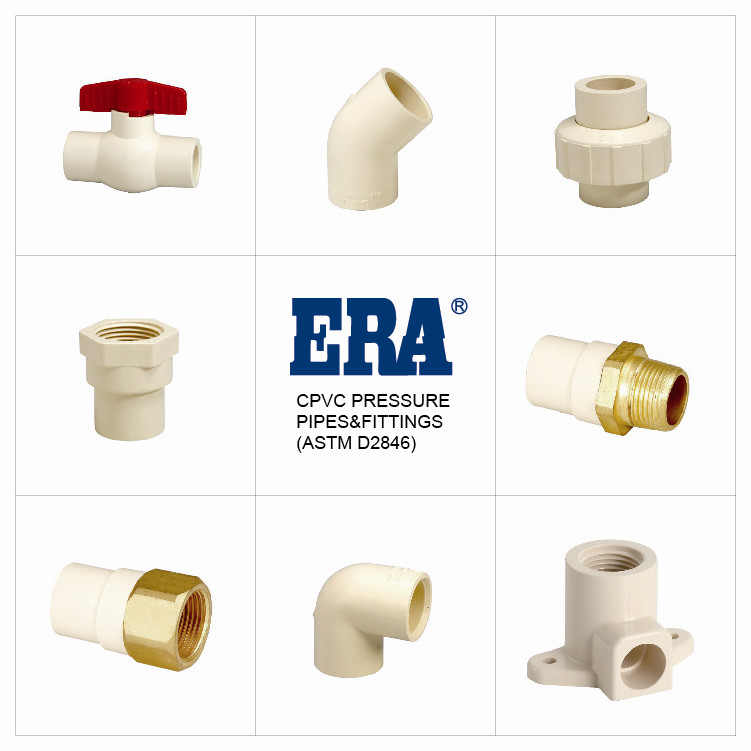

Main Products：
CPVC piping system consists of: CPVC pipe, CPVC 90° elbow, CPVC 45° elbow, CPVC straight through, CPVC looper flange, CPVC flange blind plate, CPVC equal diameter tee, CPVC reducing tee, CPVC concentric reducing pipe, CPVC eccentric reducing pipe, CPVC manual butterfly valve, CPVC manual ball valve, C PVC electric butterfly valve, CPVC check valve, CPVC manual diaphragm valve, tetrafluoron rubber compensator (KXTF-B), Butadiene rubber coated PTFE gasket, stainless steel (SUS304) bolts, channel steel bracket, equal Angle steel continuous support, U-shaped pipe card, etc

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
