CPVC NBR PIPES AND FITTINGS

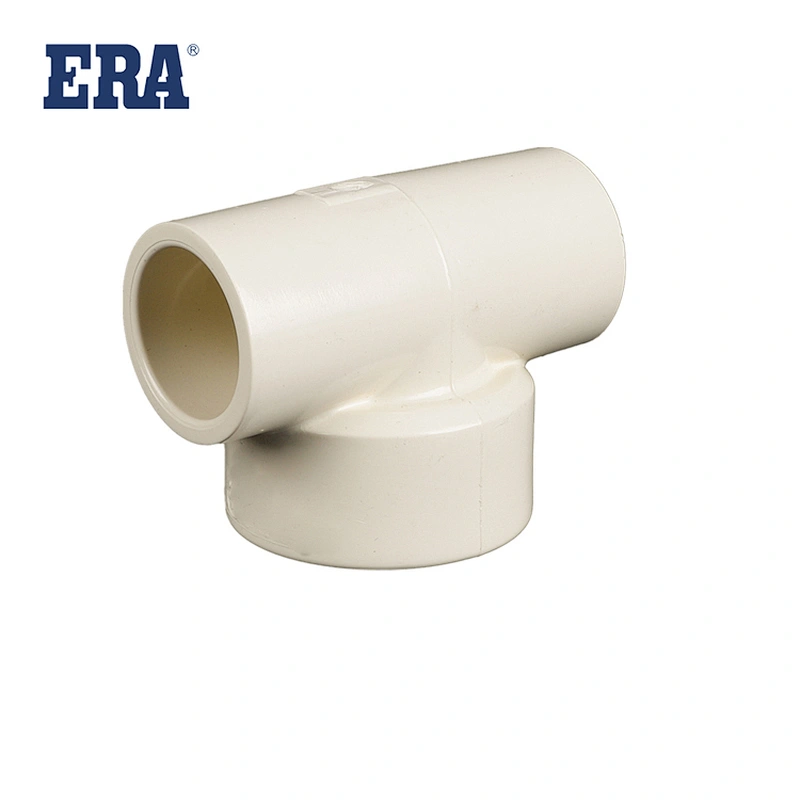

ERA Piping Systems, CPVC Pipe Fitting, BRASS THREADED FEMALE TEE, CPBB02, NBR(ABNT NBR 15884) , NSF-pw & UPCSystem：ERA CPVC has a rated working pressure of 100 PSI at 180 degrees Fahrenheit and 400 PSI at 73 degrees Fahrenheit.
Makes the job site safer by eliminating the need for an open flame to solder the joints together.
Scope：The CPVC pipe has comparable corrosion resistance to PVC pipe yet it is suitable for handling corrosive material at temps 40 to 60 deg F higher than PVC.
CPVC fire sprinkler piping systems are approved for light hazard applications and for use in single and multifamily dwellings.
International market：ERA trademark has been registered in nations and regions as Japan,America, Germany,etc and also registered in international intellectual property rights organizations as Madrid ,African and other international intellectual property organization.
Most products for different standards：Products conform to dozens of the standards as Japanese, German, Australian ,etc.

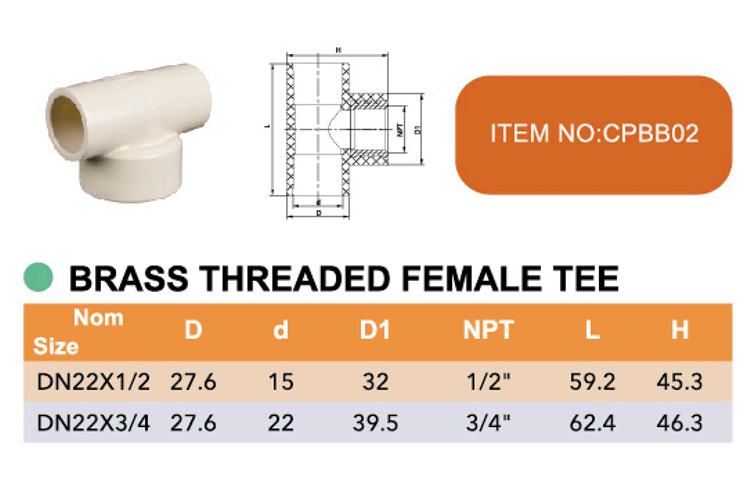

| Model Number | CPBB02 | Material | CPVC |
| Description | BRASS THREADED FEMALE TEE | Size | DN22x1/2''、DN22x3/4'' |
| Standard | NBR(ABNT NBR 15884) | Color | Ivory color |
| Brand | ERA | Temperature | Max82.2°C / 180°F |
| Connection | Socket or Thread | Certificate | NSF、UPC |
Main Products：
CPVC appearance is white powder, specific gravity is 1.48~1.58, higher than PVC, forming shrinkage rate is 0.3~0.7%, easy to bond. CPVC is widely used in a variety of extruded products: pipe, plate, profile, sheet and so on. Its application is mainly some chemical industry corrosion environment, fire protection requirements, heat resistance requirements, and the performance of ordinary PVC resin can not meet the requirements.
The resin is made by chlorination modification of polyvinyl chloride (PVC) resin and is a new type of engineering plastic. The product is white or light yellow, tasteless, odorless, non-toxic loose granules or powder. After PVC resin is chlorinated, the irregularity of the molecular bonds increases and the polarity increases, which increases the solubility and chemical stability of the resin, thereby improving the material's heat resistance, acid resistance, alkali resistance, salt, oxidant resistance, etc. corrosion. The mechanical properties of the numerical heat distortion temperature have been improved, the chlorine content has been increased from 56.7% to 63-69%, the Vicat softening temperature has been increased from 72-82 ℃, (to 90-125 ℃), and the maximum operating temperature can reach 110 ℃. The long-term use temperature is 95°C. Among them, CORZAN CPVC has better performance indicators. Therefore, CPVC is a new engineering plastic with broad application prospects.
FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
