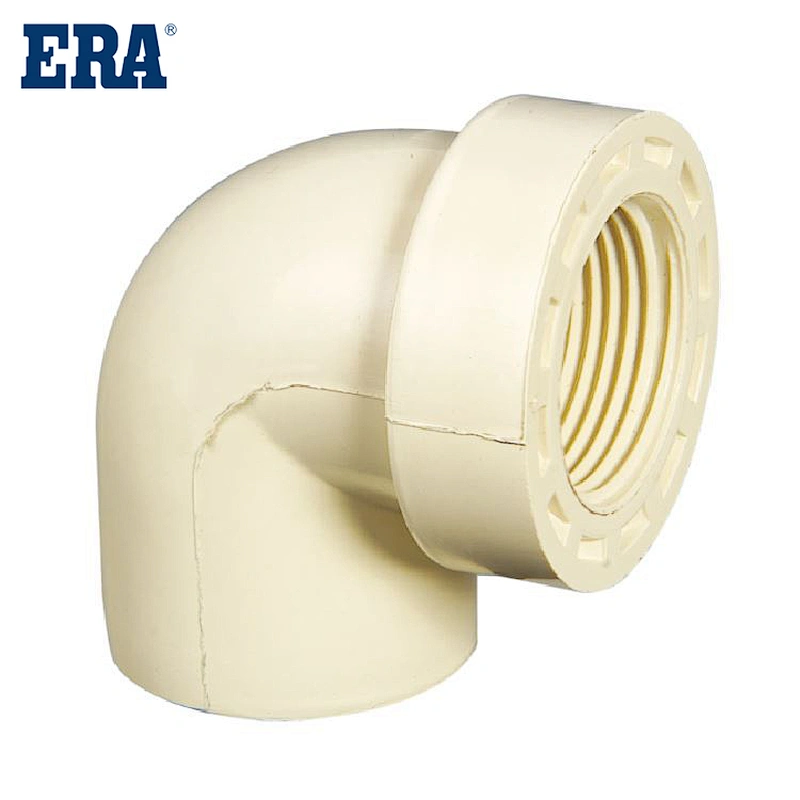

CPVC FITTINGS REDUCED FEMALE THREADED ELBOW

Model NO.: CP013

1. Light weight, more convenient and fast transportation and installation.
2. The project construction is convenient, the design scheme is more efficient, the construction is convenient, the construction period can be shortened directly, and there is no radioactive carcinogen, which has obvious economic benefits and economic benefits.
3. High quality corrosion resistance and no cracking in contact with vegetable oil.
4. CPVC pipe also has the advantages of strong compressive strength, high temperature resistance, long service life, etc. Moreover, this pipe eliminates the previous ordinary PVC pipe, so there is no disadvantage of poor weather resistance. Its compressive strength can replace the seamless steel pipe to avoid the corrosion of the seamless steel pipe, which directly forms a closed equivalent circuit, leading to overheating and damage of the single core cable. The fire resistance rating of CPVC pipe fittings is FV-0, which can not self ignite, the mysterious flame is extinguished, the fire resistance rating is 40%, and there is basically no thermal conductivity.

Product Description

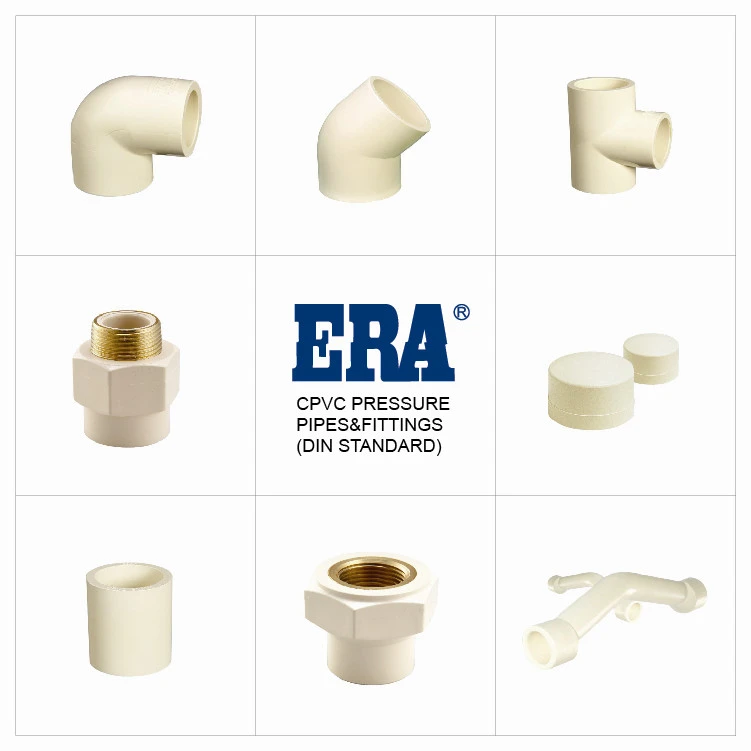

CPVC DIN PIPES AND FITTINGS
ERA Piping Systems, CPVC Pipe Fitting, REDUCED FEMALE THREADED ELBOW, CP013, (DIN STANDARD), CE

System:

The ERA brand CPVC fittings is ideally suited for hot and cold water pressure distribution systems in residential and commercial applications.

Scope:

For hot and cold water applications

For use with solvent weld connections

Specification:

PVC-C has an operational temperature range of 0°C - 80°C (32°F - 176°F), which is suitable for high temperature environments. The excellent mechanical characteristics, high tensile strength, stiffness, and impact strength are evident even at increased temperatures.

Fields of application:

Air conditioning Drain Systems.

Building Technology

Water and Wastewater Treatment

Specification:

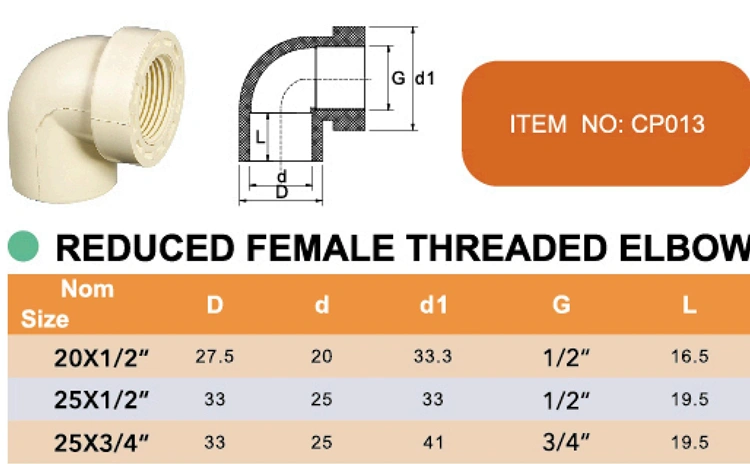

Model Number	CP013	Material	CPVC
Description	CPVC REDUCED FEMALE THREADED ELBOW	Size	20x1/2''-25x3/4''
Standard	DIN8079	Color	Ivory color
Working Pressure	PN16,16 Bar,1.6Mpa	Temperature	Max 82.2℃ / 180°F
Connection	Socket or Thread	Certificate	CE

Main Products

Company introduction

Certificate exhibition

1, pipe: CPVC is mainly used for the production of plate, bar, pipe transportation of hot water and corrosive medium, can maintain enough strength when not more than 100 ℃, and can be used for a long time under high internal pressure. The weight of CPVC is 1/6 of copper, 1/5 of steel, and has very low thermal conductivity, therefore, the pipe made of CPVC, light weight, good thermal insulation performance, no insulation.

2. CPVC tube can be used as hot sewage pipe, electroplating solution pipe, thermochemical reagent conveying pipe, wet chlorine gas conveying pipe of chlorine alkali factory.

3, injection parts: CPVC resin can produce water supply pipe fittings, filter materials, dehydrators, but also can produce electrical and electronic parts. Such as wire groove, conductor protective layer, electric switch, fuse protective cover, cable insulation material.
