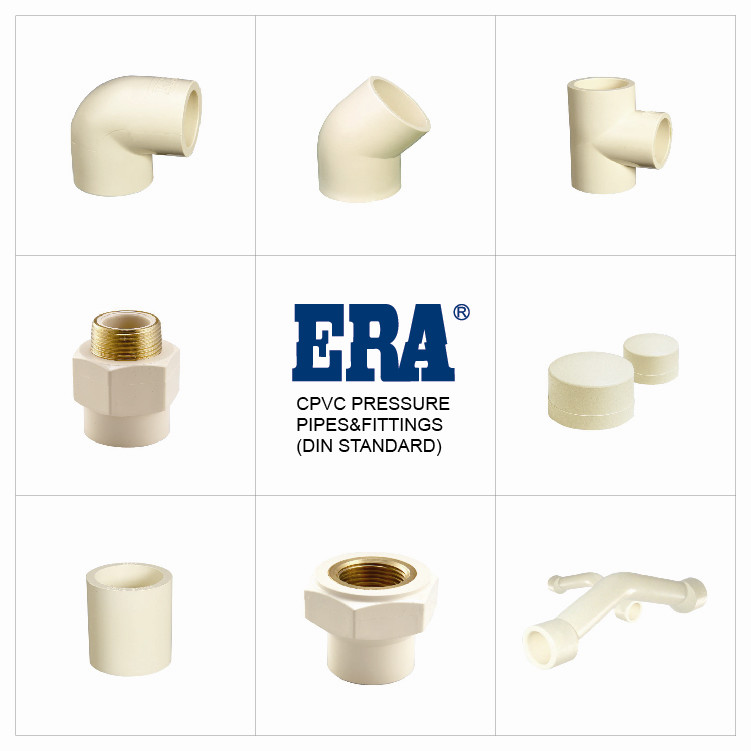

CPVC DIN PIPES AND FITTINGS

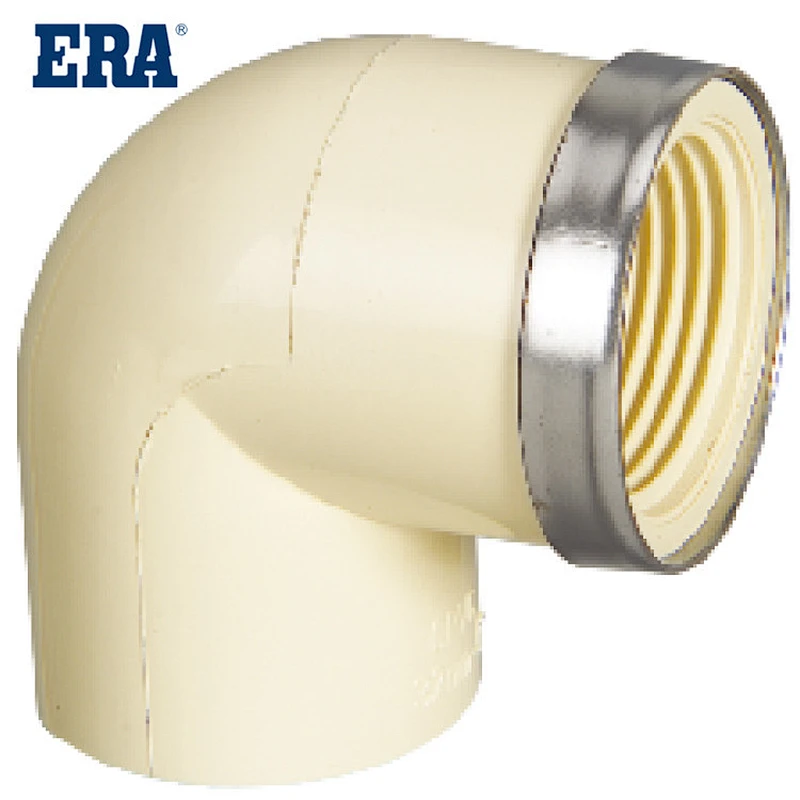

ERA Piping Systems, CPVC Pipe Fitting, FEMALE THREADED ELBOW, CP009, (DIN STANDARD), CESystem：The ERA brand CPVC fittings is ideally suited for hot and cold water pressure distribution systems in residential and commercial applications.
Scope：
For hot and cold water applications
For use with solvent weld connections
Specification：
CPVC has an operational temperature range of 0°C - 80°C (32°F - 176°F), which is suitable for high temperature environments. The excellent mechanical characteristics, high tensile strength, stiffness, and impact strength are evident even at increased temperatures.

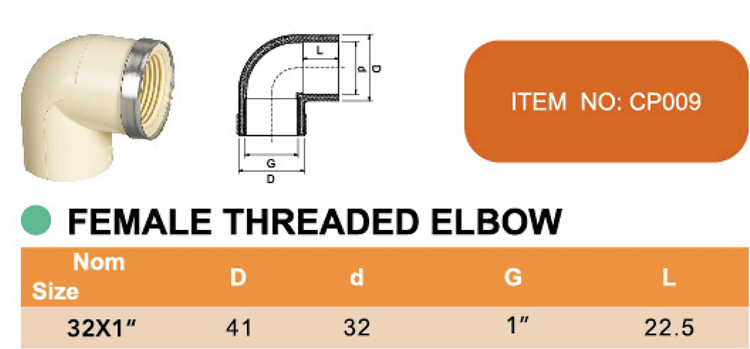

Specification：| Model Number | CP009 | Material | CPVC |
| Description | CPVC FEMALE THREADED ELBOW | Size | 32x1'' |
| Standard | DIN8079 | Color | Ivory color |
| Working Pressure | PN16,16 Bar,1.6Mpa | Temperature | Max 82.2℃ / 180°F |
| Connection | Socket or Thread | Certificate | CE |
Main Products：
1, strong: because PVC-C is stronger than PP-R, PB and PEX, it needs fewer hooks and supports. PVC-C can withstand higher pressures and can use smaller pipe diameters than PP-R, PB, and PEX tubes at the same rate.
2, easy installation: the use of special fusion agent can be connected, installation without special tools, that is suitable for open, also suitable for dark installation. 3. Corrosion resistance: PVC-C is not easy to penetrate oxygen, so the metal parts in the system will not cause corrosion due to oxidation.
4, good flame retardant: the oxygen index of PVC-C is 60, the combustion capacity is very low, out of the fire, will not produce fire drops, more can inhibit the production of smoke and toxic gases.
5, not affected by the residual: different from the polyhydrocarbon pipe, PVC-C pipe after long-term use, is not affected by the residual water, there will be no cracks and leakage.
6, alkali resistance: PVC-C, whether on or on alkali has a strong anti-corrosion ability, can be used as the transport of HCL and NaOH liquid.
Advantages and characteristics of cpvc pipe
1. The tensile strength, flexural strength, flexural modulus and pressure-bearing capacity of chlorinated polyvinyl chloride pipes are higher than those of polyethylene pipes, polyvinyl chloride pipes and polypropylene pipes.
2. The chemical corrosion resistance, heat resistance and weather resistance are higher than those of polyvinyl chloride pipes.
3. When transporting drinking water, it will not be affected by chlorine in the water, ensuring the quality of drinking water.
4. Excellent flame retardancy, no dripping when burning, slow combustion diffusion, and no toxic gases.
5. Good flexibility, easy to install, and can be connected with solvent.
FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
