CPVC DIN PIPES AND FITTINGS

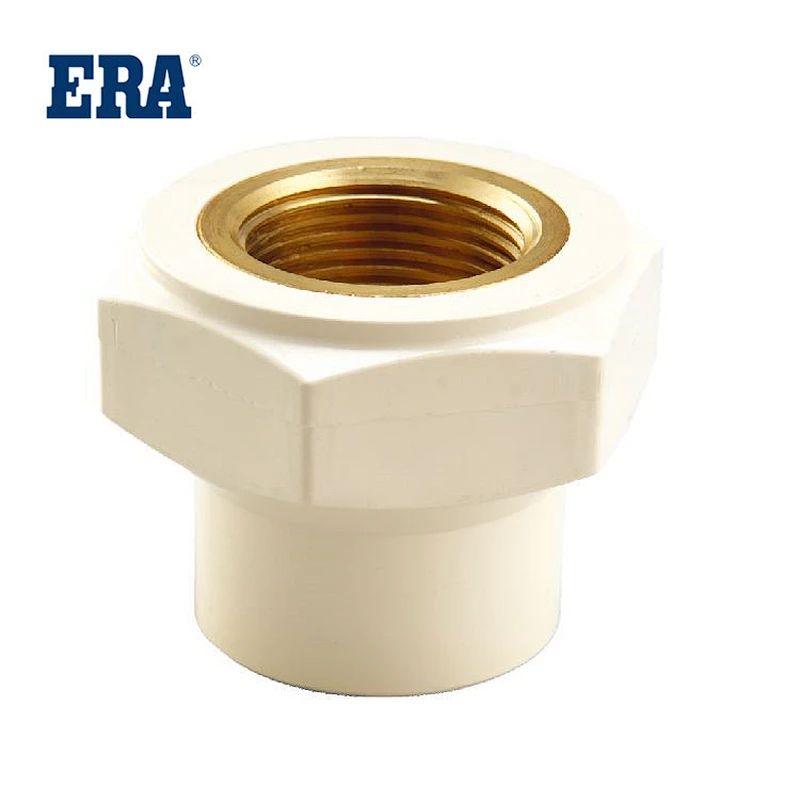

ERA Piping Systems, CPVC Pipe Fitting, FEMALE ADAPTOR WITH BRASS INSERT, CP021, (DIN STANDARD), CESystem：
CPVC DIN 8049 Hot and Cold Domestic Water Distribution
CPVC is used for higher temperature applications than PVC, especially for handling hot corrosive liquids. With similar chemical and corrosion resistance to PVC. Increased chlorine content gives CPVC superior thermal resistance. CPVC is not recommended for use with chlorinated or aromatic hydrocarbons, esters, or polar solvents such as ketones. ERA CPVC materials conform to ASTM Cell Classification 23447-B (formerly designated as Type IV, Grade 1). The maximum recommended service temperature of CPVC products is 93°C (200°F).
Scope：
For hot and cold water applications
Used to join straight lengths of CPVC tubing
Specification：
CPVC has an operational temperature range of 0°C - 80°C (32°F - 176°F), which is suitable for high temperature environments. The excellent mechanical characteristics, high tensile strength, stiffness, and impact strength are evident even at increased temperatures.
Metric Chlorinated Polyvinyl Chloride is corrosion-resistant, has a long service life in an aggressive and/or corrosive environment, and a high safety factor.

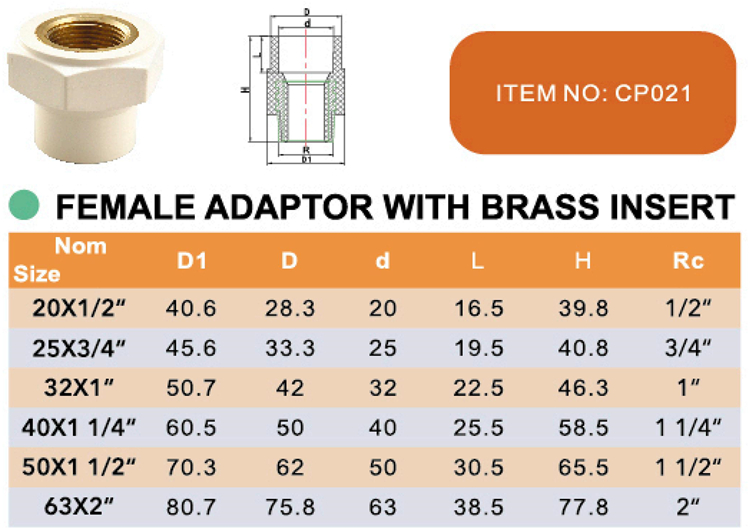

Specification：| Model Number | CP021 | Material | CPVC |
| Description | CPVC FEMALE ADAPTOR WITH BRASS INSERT | Size | 20x1/2''-63x2'' |
| Standard | DIN8079 | Color | Ivory color |
| Working Pressure | PN16,16 Bar,1.6Mpa | Temperature | Max 82.2℃ / 180°F |
| Connection | Socket or Thread | Certificate | CE |

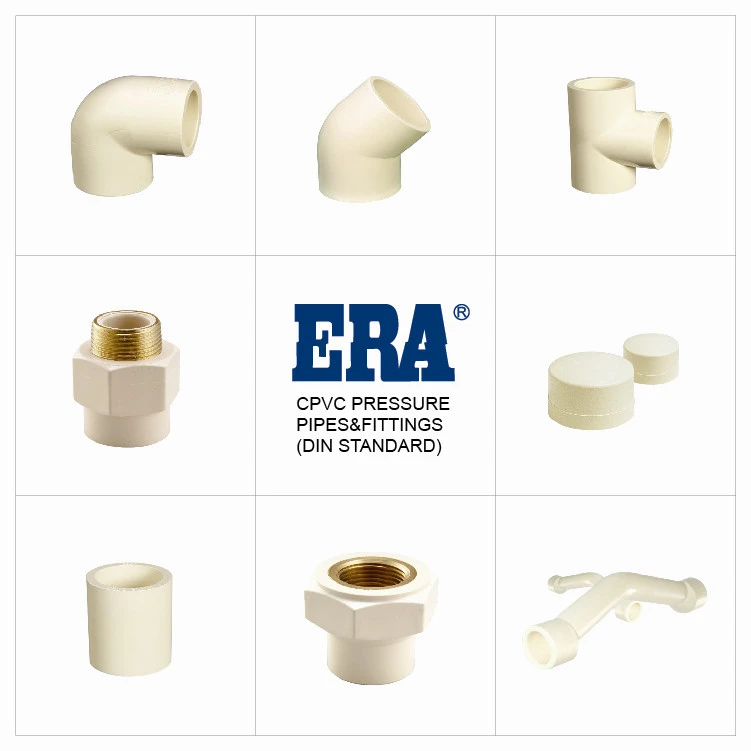

Main Products：
The advantage of CPVC pipe characteristics
1, chlorinated polyvinyl chloride (PVC) pipe tensile strength, bending strength, bending modulus and bearing capacity is higher than that of polyethylene pipe, PVC pipe and polypropylene.
2, chemical corrosion resistance, heat resistance and weather resistance is higher than the PVC pipe.
3, delivery is not affected by chlorine gas in water when drinking water, ensure the quality of drinking water.
4, good flame retardant, do not produce dripping during burning, burning spread slowly, do not produce poisonous gas.
5, good flexibility, easy installation, can be connected with solvent.
What are the characteristics of CPVC pipes?
1. Light weight, because the relative density of CPVC is 1350 to 1500KG/M3, and its net weight is usually 1/10 of similar working pressure pipes and 1/6 of seamless steel pipes, making transportation and installation more convenient and faster.
2. Corrosion resistance, and CPVC is resistant to some organic chemicals and organic solvents such as acids, alkali and salts, and will not crack in contact with vegetable oil.
3. CPVC pipes have the advantages of strong compressive strength, high temperature resistance, and long service life. Moreover, this kind of pipe has eliminated the previous ordinary PVC pipes, so it will not have the disadvantage of poor weather resistance. Its compressive strength can replace seamless steel pipes to prevent seamless steel pipes from corrosion. The fire resistance grade of CPVC pipe fittings is FV-0, it cannot spontaneously ignite, the mysterious flame goes out, the flame retardant grade is 40%, and it has basically no thermal conductivity.
