CPVC CTS PIPES AND FITTINGS

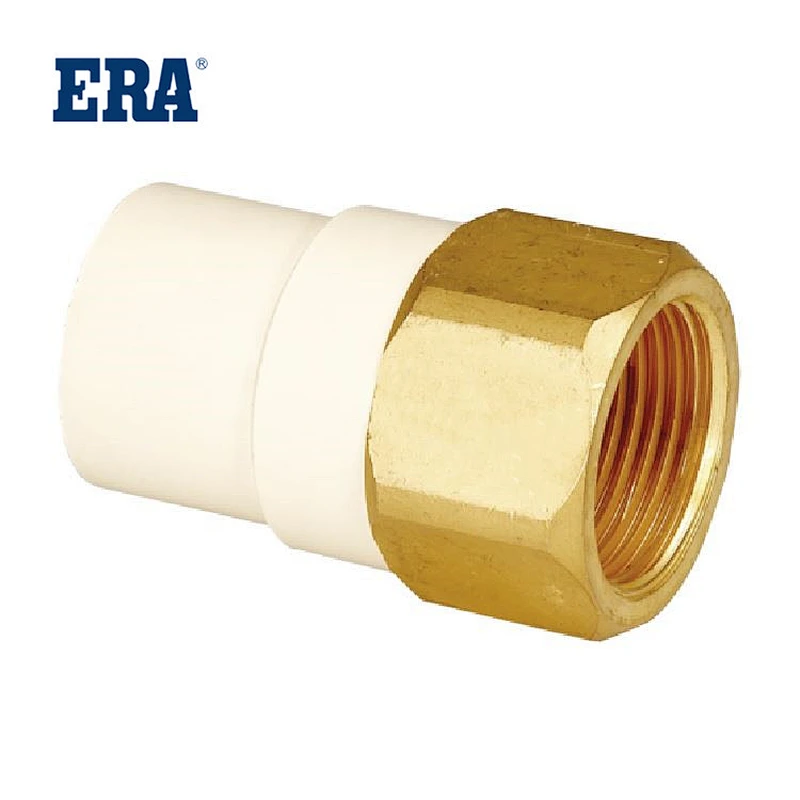

ERA Piping Systems, CPVC Pipe Fitting , BRASS THREADED FMALE ADAPTOR，CPAB04, CTS (ASTM 2846) , NSF-pw & UPC System：CPVC Copper Tube Size (CTS) Hot and Cold Domestic Water Distribution
Used for potable hot and cold water distribution，with solvent weld joints, and is easy to install.
Scope：This specification covers Copper Tube Size (CTS) CPVC manufactured to standard dimensional ratio (SDR) 11 for hot and cold domestic water distribution. This system is intended for pressure applications where the operating temperature will not exceed 180°F at 100psi.
Specification：Pipe and fittings shall be manufactured from virgin rigid chlorinated poly(vinyl chloride).
It is lightweight, easy to assemble and install. Job-site erection of a leakproof joint can be made in only a minute with solvent cement, or by threading.Do not use with compressed air or other gases.

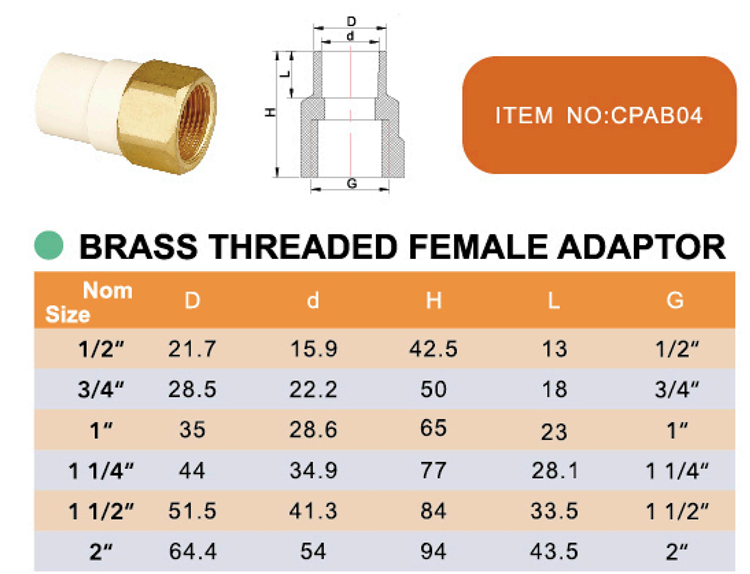

Specification：| Model Number | CPAB04 | Material | CPVC |
| Description | BRASS THREADED FMALE ADAPTOR | Size | 1/2''-2'' |
| Standard | CTS / ASTM D2846 | Color | Ivory color |
| Brand | ERA | Temperature | Max82.2°C / 180°F |
| Connection | Socket or Thread | Certificate | NSF、UPC |
Main Products：
The thermal conductivity and elastic modulus are small, and compared with cast iron drainage pipes, the anti-freezing performance is excellent; the pipes and fittings can be connected by bonding, the construction method is simple, the operation is convenient, and the installation efficiency is high. The surface hardness and tensile strength of PVC drainage pipe are excellent, and the pipeline safety factor is high; the aging resistance of PVC drainage pipe is good, and the normal service life is long, which can reach more than 50 years.

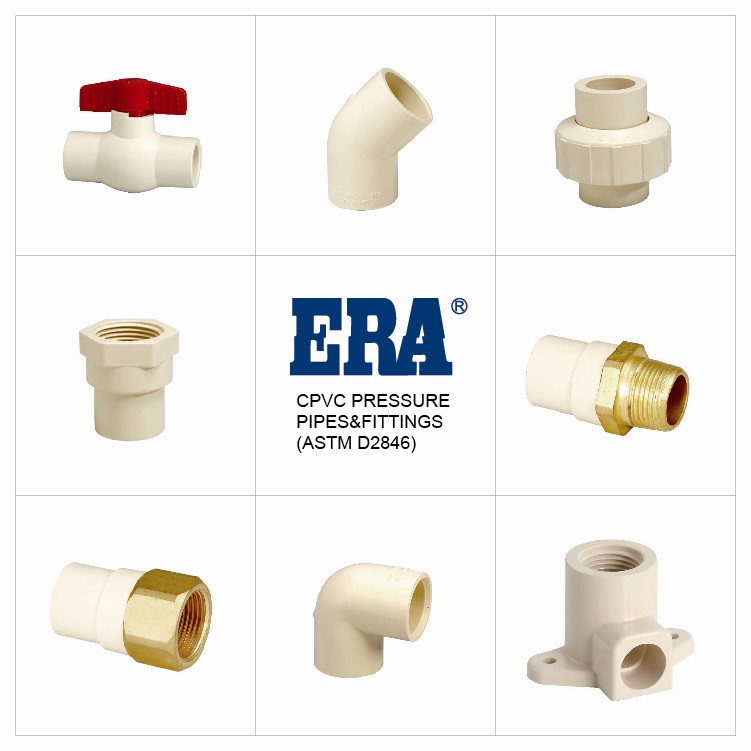

CPVC piping system consists of: CPVC pipe, CPVC 90° elbow, CPVC 45° elbow, CPVC straight through, CPVC looper flange, CPVC flange blind plate, CPVC equal diameter tee, CPVC reducing tee, CPVC concentric reducing pipe, CPVC eccentric reducing pipe, CPVC manual butterfly valve, CPVC manual ball valve, C PVC electric butterfly valve, CPVC check valve, CPVC manual diaphragm valve, tetrafluoron rubber compensator (KXTF-B), Butadiene rubber coated PTFE gasket, stainless steel (SUS304) bolts, channel steel bracket, equal Angle steel continuous support, U-shaped pipe card, etc
Characteristics of CPVC pipes：
1. Wide operating temperature range: -40℃-95℃;
2. Has good strength and toughness;
3. Has good chemical corrosion resistance;
4. The flame retardant property is self-extinguishing;
5. Low thermal conductivity, about 1/200 of steel;
6. The heavy ion content in the medium reaches the ultrapure water standard;
7. The hygienic performance meets the requirements of national hygienic standards;
8. The pipe wall is clean and smooth: it has small friction resistance and adhesion when transporting fluid;
9. Light weight: equivalent to 1/5 of steel pipe and 1/6 of steel pipe;
10. Easy to install: can be connected by bonding, threading, welding, etc.;
11. Excellent aging resistance and UV resistance, long normal service life.
FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
