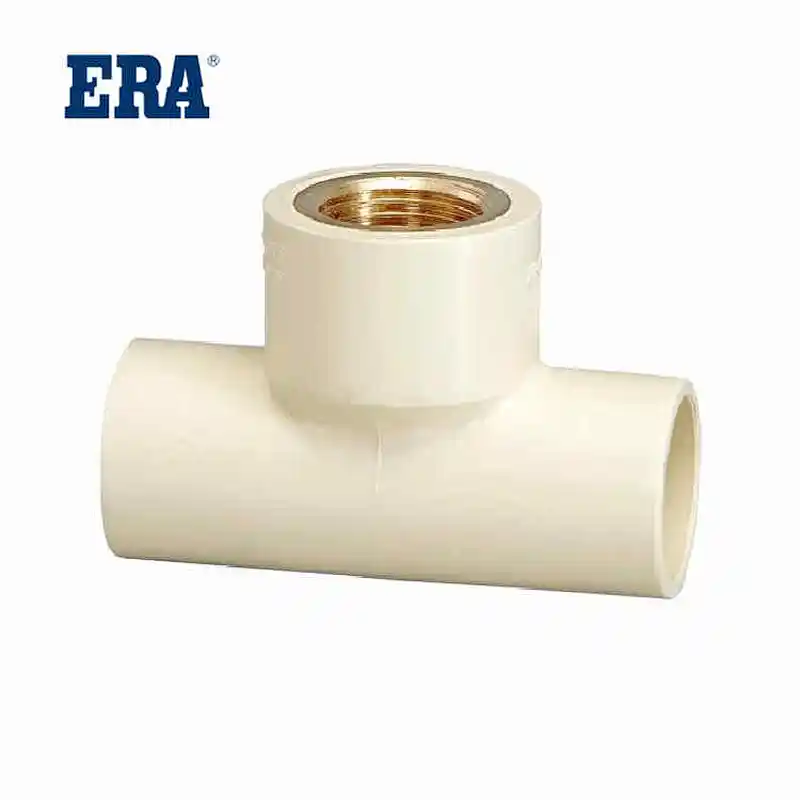

CPVC BRASS THREADED FEMALE TEE
CPVC BRASS THREADED FEMALE TEE
CPVC BRASS THREADED FEMALE TEE
CPVC BRASS THREADED FEMALE TEE
CPVC BRASS THREADED FEMALE TEE
CPVC BRASS THREADED FEMALE TEE
CPVC BRASS THREADED FEMALE TEE
CPVC BRASS THREADED FEMALE TEE
CPVC BRASS THREADED FEMALE TEE
CPVC BRASS THREADED FEMALE TEE
CPVC BRASS THREADED FEMALE TEE

CPVC BRASS THREADED FEMALE TEE

CPAB02
1. The tensile strength, bending strength, bending modulus and bearing capacity of CPVC are higher than those of PVC and PP
2. Chemical corrosion resistance, heat resistance and weather resistance are higher than PVC
3. The transportation of drinking water is not affected by chlorine in the water to ensure the quality of drinking water.
4. Good flame retardancy, no dripping during combustion, slow combustion and diffusion, no toxic gas.
5. Good flexibility, easy installation, can be connected with solvent.
CPVC CTS PIPES AND FITTINGS
ERA Piping Systems, CPVC Pipe Fitting ,CPVC PRESSURE PIPES, BRASS THREADED FEMALE TEE, CPAB02, CTS (ASTM 2846) , NSF-pw & UPC

System：CPVC Copper Tube Size (CTS) Hot and Cold Domestic Water Distribution

Scope：
This specification covers Copper Tube Size (CTS) CPVC manufactured to standard dimensional ratio (SDR) 11 for hot and cold domestic water distribution. This system is intended for pressure applications where the operating temperature will not exceed 180°F at

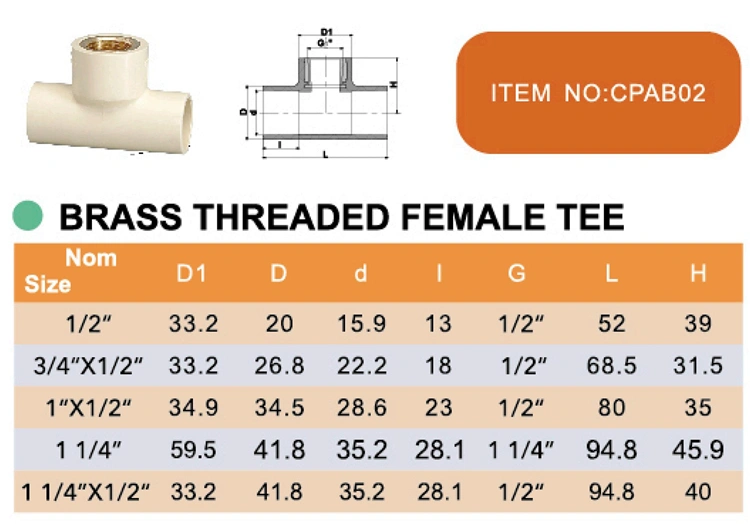

Specification：
Model NumberCPAB02MaterialCPVC
DescriptionBRASS THREADED FEMALE TEESize1/2''-1 1/4''x1/2''
StandardCTS / ASTM D2846ColorIvory color
BrandERATemperatureMax82.2°C / 180°F
ConnectionSocket or ThreadCertificateNSF、UPC

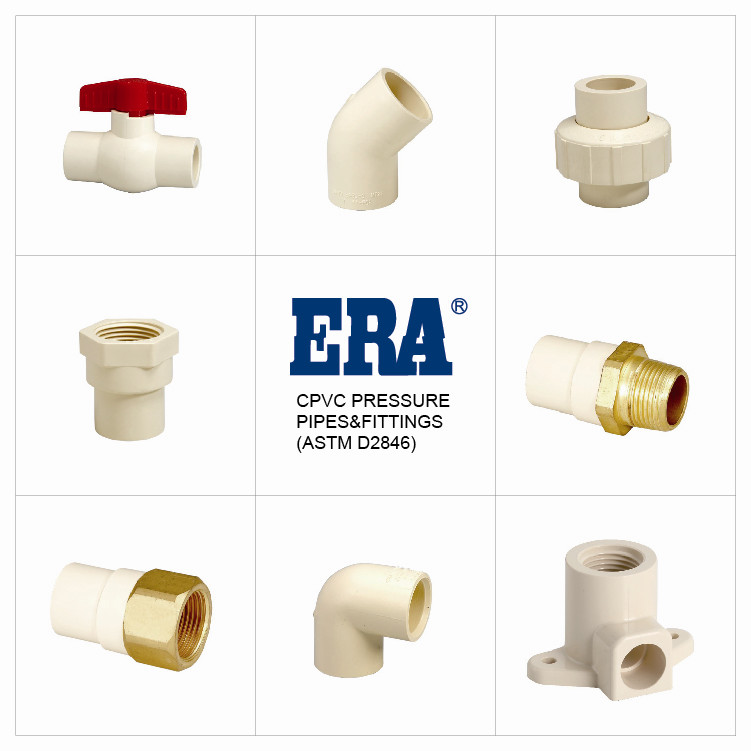

  Main Products：

The advantage of CPVC water supply pipe is relatively high temperature resistance. If the raw material forming CPVC tube has a relatively large proportion of graphite filler, it can also be used as a thermal conductivity tube. The application of this pipe in China has only begun in recent years, and it is used in cold and hot water water transmission, thermochemical solution and waste liquid transportation pipeline. The long-term use of infusion temperature can reach 120 degrees Celsius, and the life span is as long as 40 years.

1. The tensile strength, bending strength, bending modulus and bearing capacity of chlorinated PVC pipe are higher than that of polyethylene pipe, PVC pipe and polypropylene pipe.

2, chemical corrosion resistance, heat resistance and weather resistance is higher than PVC pipe.

3, the delivery of drinking water is not affected by chlorine gas in the water, to ensure the quality of drinking water.

4, excellent flame retardant, combustion does not produce dripping, combustion diffusion is slow, does not produce toxic gas.

5, good flexibility, easy installation, solvent can be connected.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.
2.What is your delievery time?
 The time of delievery is around 30-45days.
3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
