PVC-U INSULATING ELECTRICAL PIPE AND FITTINGS

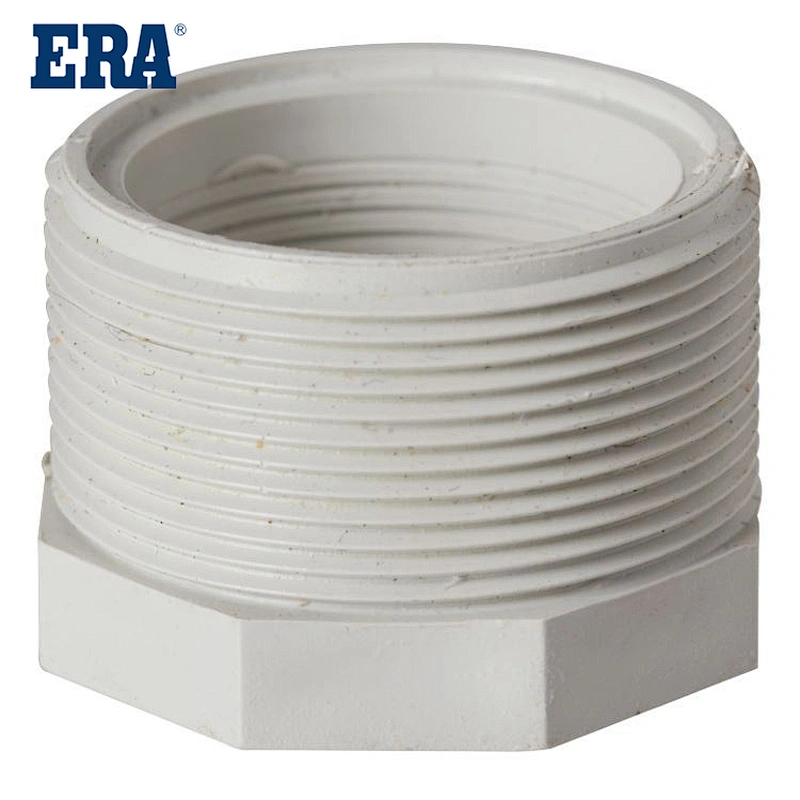

ERA PVC-U INSULATING ELECTRICAL PIPE AND FITTINGS, THREAD REDUCER, AED034,AS/NZS 2053,WATERMARKFusion Joints
HDPE piping systems can be joined with heat fusion welds. Heat fusion involves the heating of two HDPE surfaces then bringing them together to form a permanent, monolithic, leak-free system.
Unlike the fusion process developed for other plastics pipes, the fusion process for HDPE is proven and has been used by the natural gas industry for over 40 years. Approximately 95% of all gas distribution piping in the United States is polyethylene pipe joined by heat fusion.
Fusing HDPE pipe is not difficult and personnel can be trained in the process.
Adaptability
In addition to joining HDPE with heat fusion, HDPE pipe can also be joined with Stab or Mechanical Fittings.
There are a wide range of these fittings available, specific to your pipe size and application.

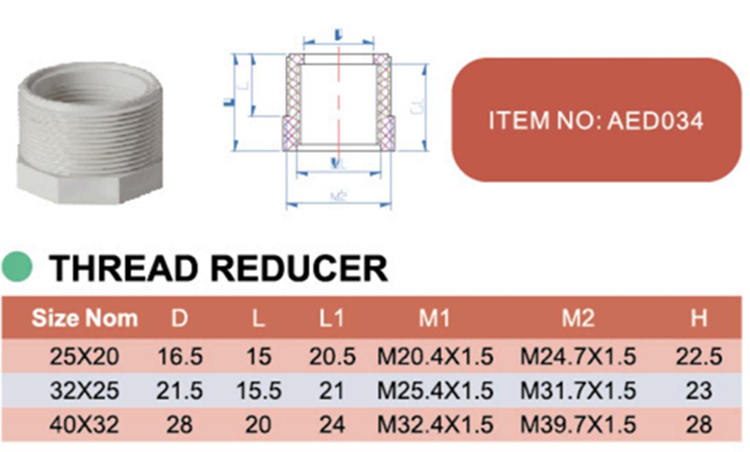

Specification：| Model Number | AED034 | Material | PVC-U |
| Description | PVC-U THREAD REDUCER | Size | 20x25-40x32MM |
| Standard | AS/NZS 2053 | Color | Grey |
| Working Pressure | / | Temperature | Max 60°C / 140°F |
| Connection | Socket & Thread | Certificate | WATERMARK |
1. The inner and outer walls of the pipe fittings with small friction coefficient are smooth, reducing the resistance of wires and cables in the pipe.
2, pressure resistance, good toughness, good heat resistance to withstand strong pressure from the outside, can be installed or dark in the concrete, the casing in the concrete pouring process, by the normal tamping impact will not be compressed deformation and rupture; Under the condition of low temperature (-5℃ above), it is not easy to crack when the spring is manually bent. In the construction process, the pipe will not be soft under the action of condensation heat.
3. Corrosion and moisture-proof, anti-damage netcom PVC-U sleeve has excellent acid and alkali moisture-proof performance, will not be corroded, so it is more suitable for use in corrosive environment; The joints are bonded with PVC-U adhesive according to the regulations, which can be waterproof and permeate into the pipe, and the moisture prevention effect is better. The pipe does not contain plasticizer to prevent the worm from biting and damaging the circuit.
4, good flame retardant, ensure the safety of the pipe after leaving the flame 30 seconds can self-extinguish, avoid the fire along the pipeline spread. Its non-thermal conductivity can effectively protect the safety of the line.
5, good insulation performance The pipe has excellent insulation performance, can withstand high voltage (AC2000V, 50Hz under the state of immersion) without breakdown, effectively avoid leakage, electric shock risk. The international trend is that insulation is better than grounding in preventing accidental electric shock
FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
