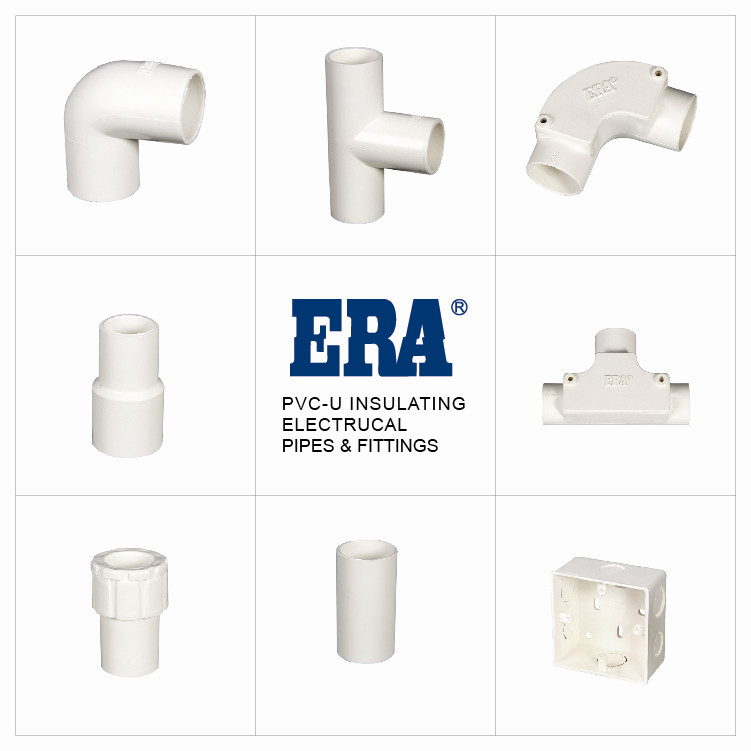

PVC-U INSULATING ELECTRICAL PIPE AND FITTINGS
ERA PVC-U INSULATING ELECTRICAL PIPE AND FITTINGS, MOUNTING CLIP, AED017,AS/NZS 2053,WATERMARKSupported by Modern Equipment
We are equipped by 900 injection machines, 210extrusion machines and 10,000moulds, we have reach a sales turnover of $570million in 2016, including export sales of $55 million covering 224 countries worldwide.
Implementing Strict Quality Control
We strictly follow ISO 9001 quality system and ISO 14001 environment system to arrange manufacturing. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, we ensure that every single product meets the corresponding inspection standard.

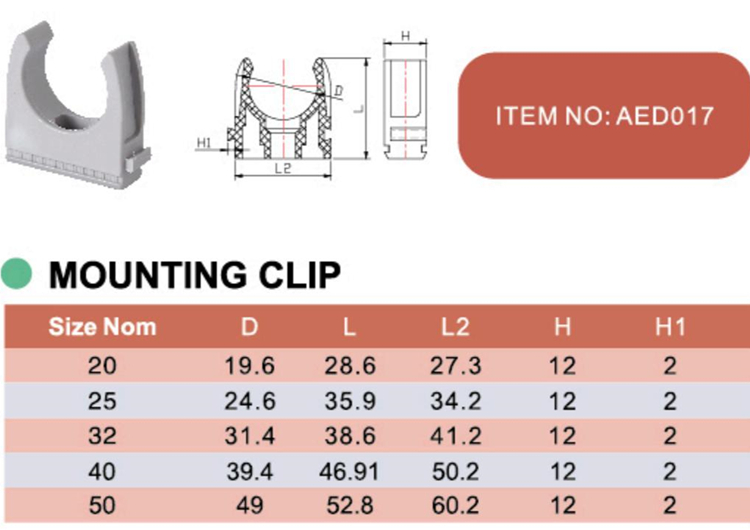

Specification：| Model Number | AED017 | Material | PVC-U |

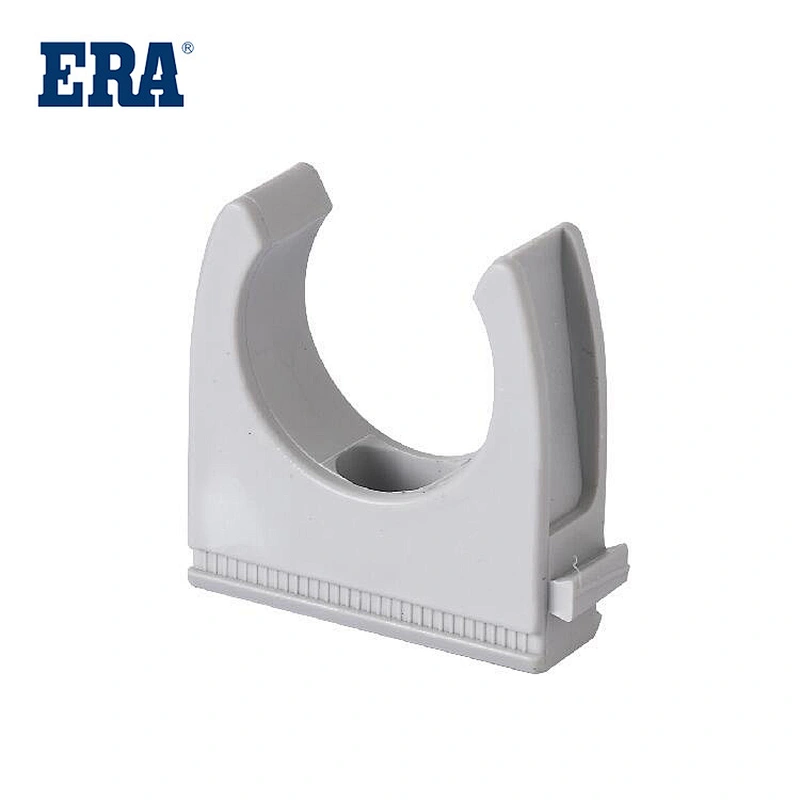

| Description | PVC-U MOUNTING CLIP | Size | 20-50MM |
| Standard | AS/NZS 2053 | Color | Grey |
| Working Pressure | / | Temperature | Max 60°C / 140°F |
| Connection | Socket & Thread | Certificate | WATERMARK |

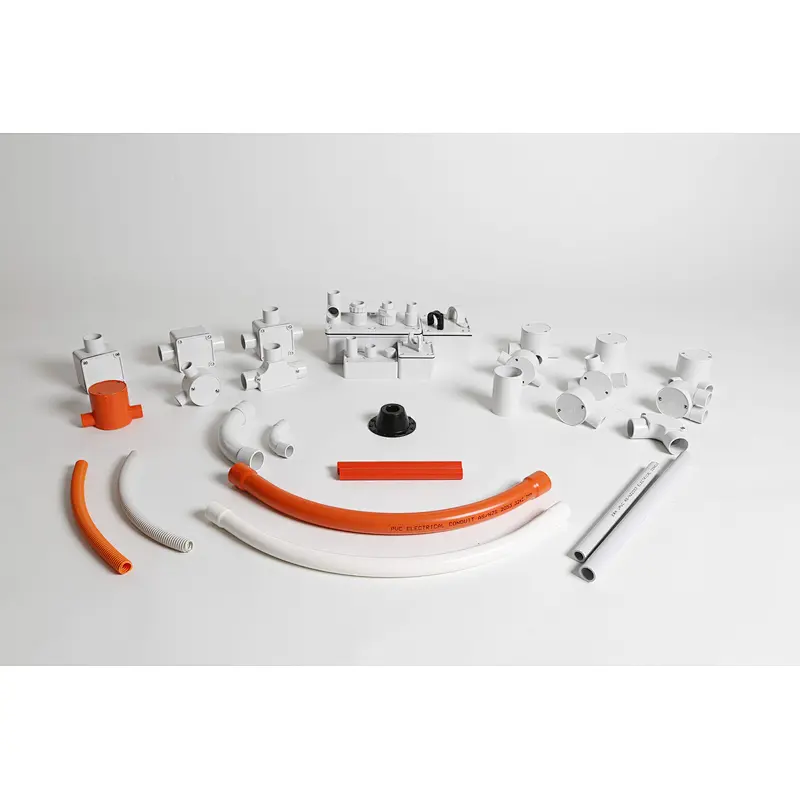

Main Products：
Pressure resistance: medium conduit and heavy conduit can withstand the pressure of 750N and 1250N, so it can also be installed in the concrete, not compression rupture, heavy pipe series is especially suitable for dark compress in rammed vibration concrete.
Impact and heat resistance: the concrete pouring process of the conduit can withstand the normal tamping impact without breaking, and under the action of concrete condensation, will not soften deformation.
Flame retardant: with high oxygen index value, so the conduit is not easy to burn, and from the fire is self-extinguishing, the flame will not spread along the pipeline.
Corrosion resistance and insect control: PVC conduit has excellent acid and alkaline resistance, no corrosion, and does not contain plasticizer, no odor to attract insects and mice, so no insect pests.
Insulation: 2000V and AC50Hz will not break down in the state of immersion, excellent insulation performance, so it can effectively prevent accidental leakage and electric shock accidents.
Convenient construction: It is convenient to cut off the conduit. The corresponding special spring is inserted into the conduit below D32, and it can be bent to the required Angle at room temperature. With PVC adhesive, the conduit can be easily connected into the shape required for construction.
FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
