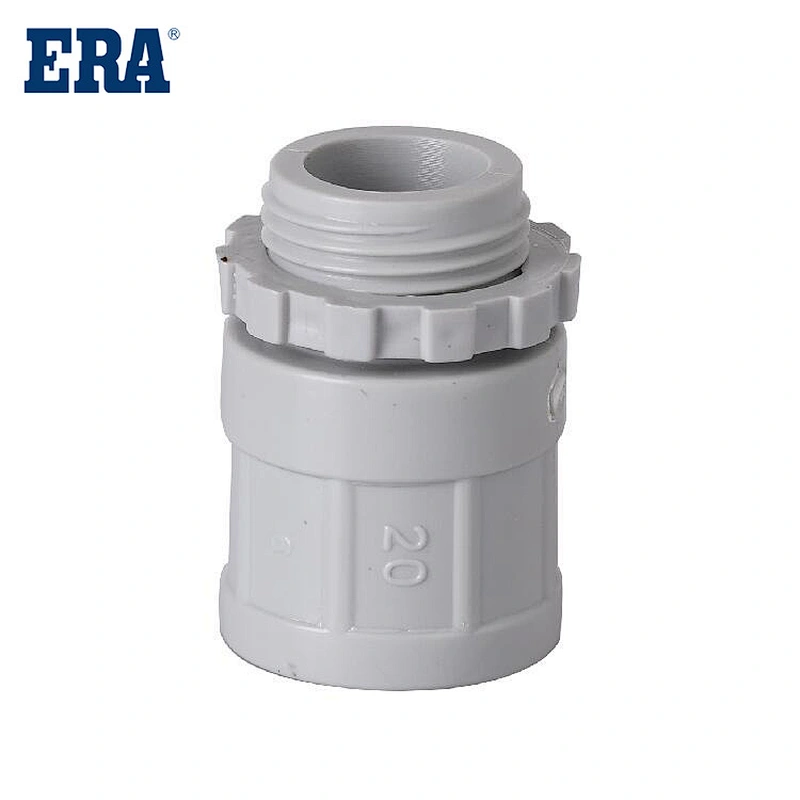

PVC-U CONDUIT ADAPTOR WITH LOCKRING-PLAIN TO THREADED
PVC-U CONDUIT ADAPTOR WITH LOCKRING-PLAIN TO THREADED
PVC-U CONDUIT ADAPTOR WITH LOCKRING-PLAIN TO THREADED
PVC-U CONDUIT ADAPTOR WITH LOCKRING-PLAIN TO THREADED
PVC-U CONDUIT ADAPTOR WITH LOCKRING-PLAIN TO THREADED
PVC-U CONDUIT ADAPTOR WITH LOCKRING-PLAIN TO THREADED
PVC-U CONDUIT ADAPTOR WITH LOCKRING-PLAIN TO THREADED
PVC-U CONDUIT ADAPTOR WITH LOCKRING-PLAIN TO THREADED
PVC-U CONDUIT ADAPTOR WITH LOCKRING-PLAIN TO THREADED
PVC-U CONDUIT ADAPTOR WITH LOCKRING-PLAIN TO THREADED
PVC-U CONDUIT ADAPTOR WITH LOCKRING-PLAIN TO THREADED

PVC-U CONDUIT ADAPTOR WITH LOCKRING-PLAIN TO THREADED

AED008
1. It can withstand strong pressure, so it can be laid in the concrete surface (concealed), and is not afraid of pressure cracking
2. PVC pipe has excellent acid and alkali resistance. At the same time, because PVC pipe does not contain plasticizer, it is not harmful to insects and rats.
3. After the PVC pipe leaves the flame barbecue, the self igniting flame can be extinguished quickly to prevent the fire from spreading along the pipe; Colleagues, due to its poor heat transfer performance, it can effectively protect the circuit for a long time in case of fire, ensure the operation of the electrical control system, and facilitate personnel evacuation.
4. It can withstand high voltage without breakdown, effectively avoiding metal and electric shock hazards.
PVC-U INSULATING ELECTRICAL PIPE AND FITTINGS
ERA PVC-U INSULATING ELECTRICAL PIPE AND FITTINGS, CONDUIT ADAPTOR WITH LOCKRING-PLAIN TO THREADED, AED008 , AS/NZS 2053,WATERMARK

Fusion Joints

HDPE piping systems can be joined with heat fusion welds. Heat fusion involves the heating of two HDPE surfaces then bringing them together to form a permanent, monolithic, leak-free system.

Unlike the fusion process developed for other plastics pipes, the fusion process for HDPE is proven and has been used by the natural gas industry for over 40 years. Approximately 95% of all gas distribution piping in  the United States is polyethylene pipe joined by heat fusion.

Fusing HDPE pipe is not difficult and personnel can be trained in the process.

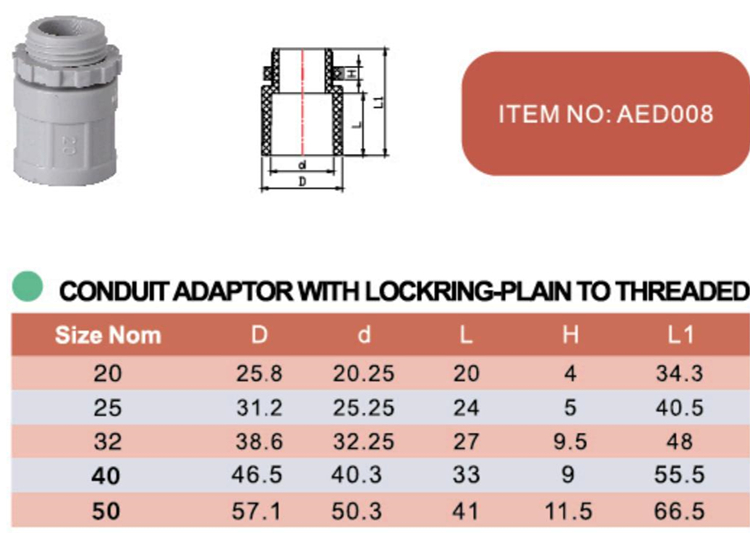

Specification：
Model NumberAED008MaterialPVC-U
DescriptionPVC-U CONDUIT ADAPTOR WITH LOCKRING-PLAIN TO THREADEDSize20-50MM
StandardISO3633ColorGrey
Working Pressure    /TemperatureMax 60°C / 140°F
ConnectionSocket & ThreadCertificateWATERMARK

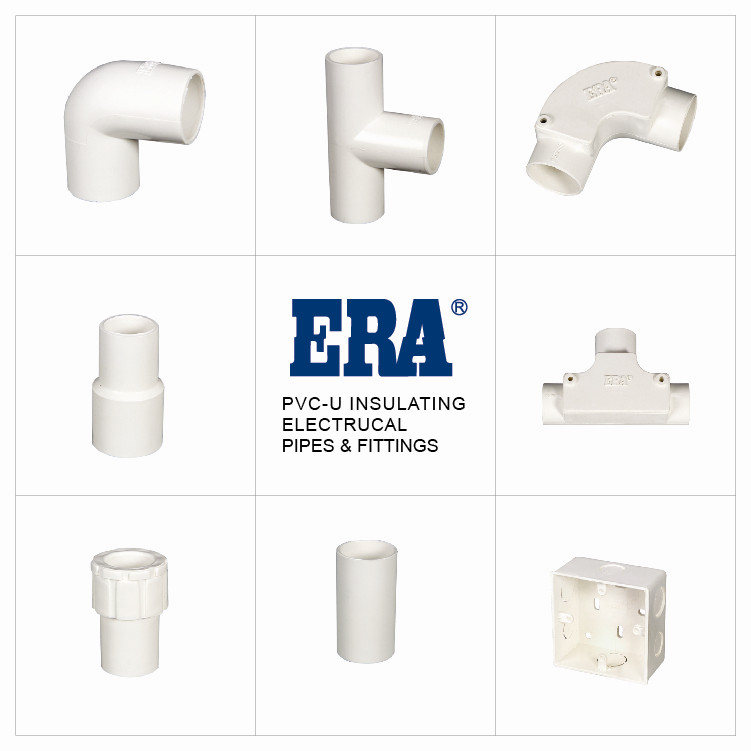

Main Products：
What are the characteristics of PVC electrical casing

1, strong pressure resistance

High resistance heavy pipe series and high impact resistance medium pipe series can withstand strong pressure, so it can be bright (dark) in the concrete, not afraid of compression rupture, among which heavy pipe series is especially suitable for dark compress in rammed and vibration concrete.

2, corrosion resistance, pest control

PVC pipe has excellent acid and alkaline resistance, at the same time, because PVC pipe does not contain plasticizer, so there is no pest.

3, good flame retardant performance

PVC pipe in the flame barbecue left, spontaneous flame can quickly extinguish, avoid the spread of the fire along the pipeline; At the same time, due to its poor heat transfer performance, in the case of fire, it can effectively protect the line for a long time, ensure the operation of the electrical control system, and facilitate personnel evacuation.

4. Strong insulation performance

Can withstand high voltage without breakdown, effectively avoid metal, electric shock danger.

5. Easy construction

(1) Light weight: only one fifth of the weight of the steel pipe, easy for vehicle transportation and manual handling, construction and installation of light and save.

(2) Easy to bend: as long as a section of bending tube spring provided by our company is inserted into the pipe, it can be artificially bent and formed at room temperature.

(3) Convenient splicing: Only with the special pipe cutter provided by the basic company, it can be convenient to cut short PVC pipe with diameter below 32, and then with special adhesive and related accessories, it can be quickly and conveniently connected to the PVC pipe into the required shape.

(4) Save investment: compared with steel pipe, PVC pipe can greatly reduce the material cost and construction and installation fee.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
