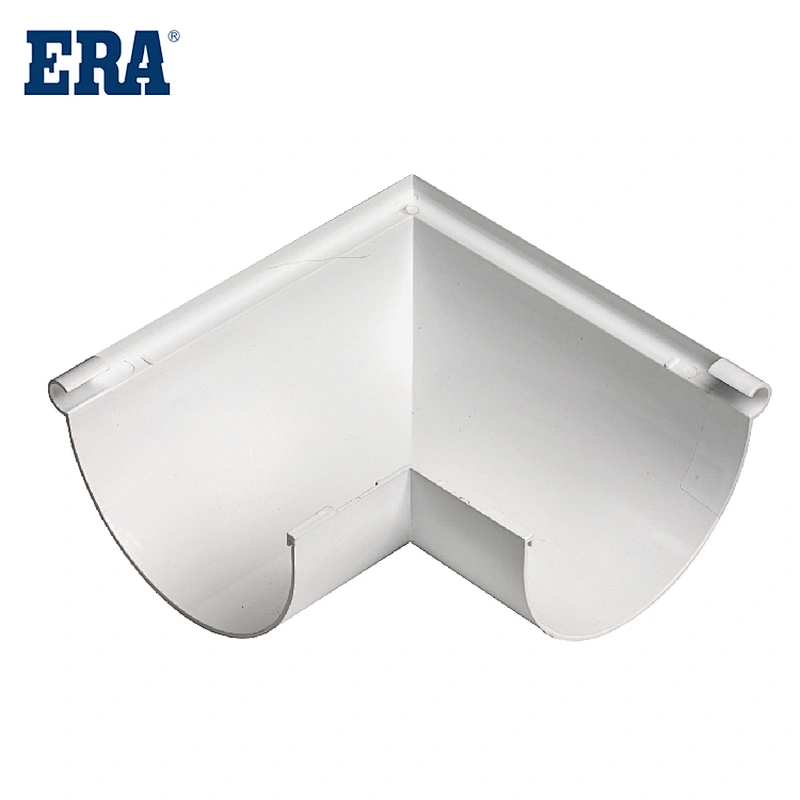

PVC ANGLE CONNECTOR LEFT

Model NO.: RWGL004-1

1. Good toughness and low temperature impact resistance; It can resist the pressure of impact, ladder and snow; And it is not easy to appear depression, bending resistance or deformation;
2. PVC has special anti ultraviolet characteristics, which can resist long-term sunlight exposure, and also increase the resistance to phenol rain and air pollution;
3. High tide resistance, good aging resistance, acid, alkali and mildew resistance, as new as ever, no need to repair and paint;
4. Easy to cut, easy to install, no special tools;
5. Mature formula technology to maintain the stability of product performance;
6. The noble sub white makes the whole falling water system more beautiful in appearance and more elegant in color.

Product Description

PVC GUTTERS AND FITTINGS BS EN607/EN12200/EN1462
ERA Piping Systems ,PVC RAIN GUTTER AND FITTINGS,ANGLE CONNECTOR LEFT, RWGL004-1, (BS EN607/EN12200/EN1462), KITEMARK
PVC RAIN GUTTER AND FITTINGS, CLAMP has strong corrosion resistance and is easy to process. High strength, high stiffness and high hardness; Good electrical insulation; Good chemical stability; Self extinguishing; Low water absorption; Easy to bond and paint. Low prices, etc.
System:  PVC rain guttter
Scope:    A rain gutter, eavestrough or surface water collection channel is a component of a water discharge system for a building.
Referenced Standards:     BS EN607/EN12200/EN1462

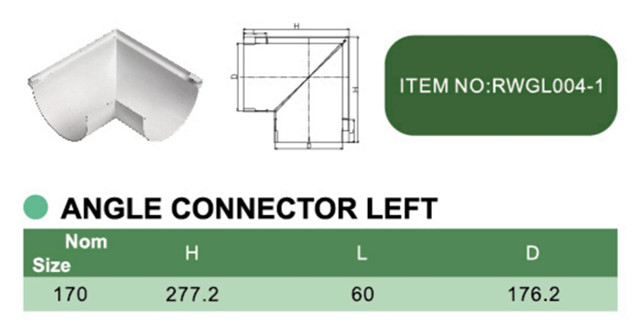

Specification:

Model Number	RWGL004-1	Material	PVC
Description	PVC ANGLE CONNECTOR LEFT	Size	170MM
Standard	BS EN607/EN12200/EN1462	Color	White
Working Pressure	/	Temperature	Max 60°C / 140°F
Connection	SOCKET	Certificate	KITEMARK

Main Products

The varieties and applications of plastic pipes have developed rapidly in the past few years. China's plastic pipes have developed into a building material industry with complete varieties and large production capacity. The main types of plastic pipes are UPVC pipe, CPVC pipe, PE pipe, PAP pipe, PE-X pipe, PP-B pipe, PP-R pipe, PB pipe, ABS pipe, steel-plastic composite pipe, glass fiber reinforced pipe and so on.

Performance characteristics of PVC drainage pipes
1. The surface tensile strength and hardness of pipes are excellent, and the pipeline safety factor is relatively high.
2. The anti-aging performance is good, and the service life of normal PVC drainage pipes can reach more than 50 years.
3. The pipeline has excellent corrosion resistance to inorganic acids, alkalis, and salts, making it suitable for the transportation and discharge of industrial wastewater.
4. The internal friction coefficient of the pipeline is small, the water flow is smooth, and blockage is not easy to occur, requiring less maintenance work.
5. The oxygen index in the material is high, and the pipeline has self extinguishing properties.
6. The expansion coefficient of the pipeline is small, usually 0.07mm/C, and the deformation is small due to the influence of temperature. At the same time, its thermal conductivity and elastic modulus are also small, and its frost resistance is better compared to cast iron drainage pipes.
7. The connection between pipes and fittings can be made by bonding, which is simple in construction, convenient in operation, and has good installation efficiency.
8. Whether PVC-U pipes are installed using adhesive or rubber ring connections, the pipes have good water tightness.
