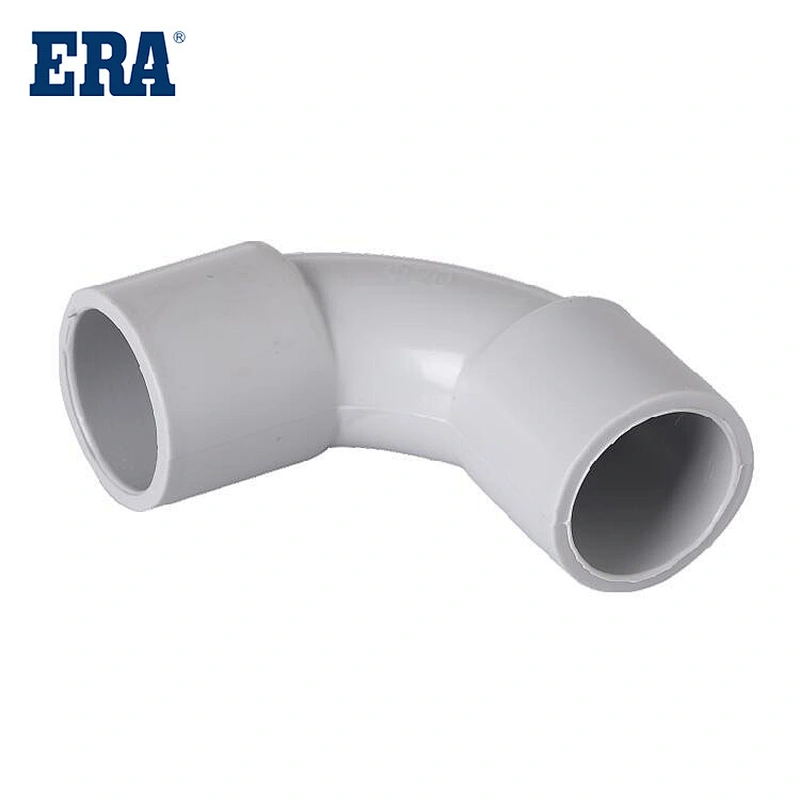

PVC-U CONDUIT ELBOW
PVC-U CONDUIT ELBOW
PVC-U CONDUIT ELBOW
PVC-U CONDUIT ELBOW
PVC-U CONDUIT ELBOW
PVC-U CONDUIT ELBOW
PVC-U CONDUIT ELBOW
PVC-U CONDUIT ELBOW
PVC-U CONDUIT ELBOW
PVC-U CONDUIT ELBOW
PVC-U CONDUIT ELBOW

PVC-U CONDUIT ELBOW

AED016
1. High strength, light weight, generally 1/6 of steel pipe and 1/10 of cement pipe. It is easy to transport and install without special equipment.
2. Good flexibility, not easy to break, good seismic resistance and resistance to uneven settlement, greatly superior to the traditional cement pipe and asbestos pipe.
3. Convenient construction: the socket connection is adopted, and the combined support and other accessories are convenient for pipe laying construction and installation, which can greatly shorten the construction period, and do not need to cast concrete protective layer. The overall project cost is low, and has significant economic benefits;
4. The core temperature of high voltage power cable with excellent heat resistance during normal operation varies with the voltage. For example, when the temperature of the cable core conveying 110kva voltage is transmitted to the bushing, the normal temperature is 65 ℃, and the overload temperature is 75 ℃. PV-C material has a thermal deformation temperature of more than 93 ℃, which can adapt to the high temperature environment, and it can work normally without deformation.
5. Excellent electrical performance: flame-retardant, flame-retardant, volume resistivity ≥ 1.0 × 1011 ☊. m, with good insulation performance and safe use.
PVC-U INSULATING ELECTRICAL PIPE AND FITTINGS
ERA PVC-U INSULATING ELECTRICAL PIPE AND FITTINGS, CONDUIT ELBOW, AED016,AS/NZS 2053,WATERMARK

ERA CO., LTD. a listed company, is the leading manufacturer in China specialized in PVC, PVC, CPVC, PE, PP piping systems
With an annual production capacity of 600,000 tons, ERA Co., ltd has more than 4000 employees in 12 factories covering 1332000 square meters in China.
Equipped with 900 injection machines, 300 extrusion machines and 12000 moulds, ERA reached a sales turnover of USD900,000,000 in 2019, including export sales covering 146 countries all over the world.

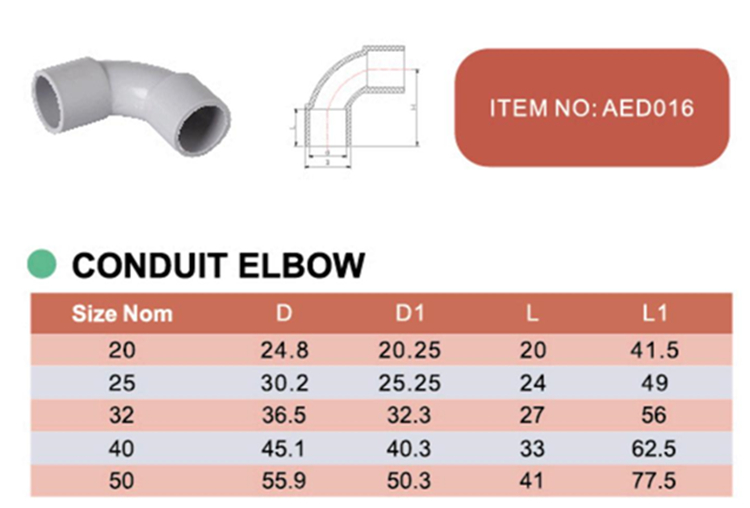

Specification：
Model NumberAED016MaterialPVC-U
DescriptionPVC-U CONDUIT ELBOWSize20-50MM
StandardAS/NZS 2053ColorGrey
Working Pressure    /TemperatureMax 60°C / 140°F
ConnectionSocket & ThreadCertificateWATERMARK


Main Products：
Performance characteristics：

1. Good impact resistance and heat resistance: PVC insulated electrical sleeve will not break under normal tamping impact in the process of mixing soil injection. And in the process of construction by condensation heat will not become soft.

2, the inner and outer walls are smooth, and the friction coefficient is small. Reduce the resistance of wires and cables in the pipeline.

3, moisture-proof acid and alkali resistance: PVC green electrical sleeve moisture-proof acid and alkali resistance is excellent, will not rust, the joints according to the provisions of PVC bonding liquid bond, waterproof penetration.

4, high compression performance :PVC green electrical casing medium can withstand more than 750N pressure, can be installed or laid in concrete, not damaged by pressure.

5, flame retardant :PVC green electrical sleeve from the fire to extinguish (leave the flame 20 seconds is self-extinguishing), the flame will not extend the spread of the pipeline.

6. No green :PVC no green electrical sleeve has excellent no green performance, AC2000V, 50HZ will not breakdown under the state of immersion. In order to prevent accidental electric shock, the international trend is better than ground green, and PVC green electrical sleeve can meet your requirements.

7, convenient construction :de32mm below the conduit with pipe cutter can be easily cut off, insert the corresponding special spring in the wire pipe, artificial bending into the required Angle at room temperature, with VC oh soon binder can quickly and easily connect the casing into the construction of the required shape of the pipeline.

8, anti-rat and insect :PVC insulation electrical casing added special additives, will not emit odor, attract rats and insects bite damage

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
