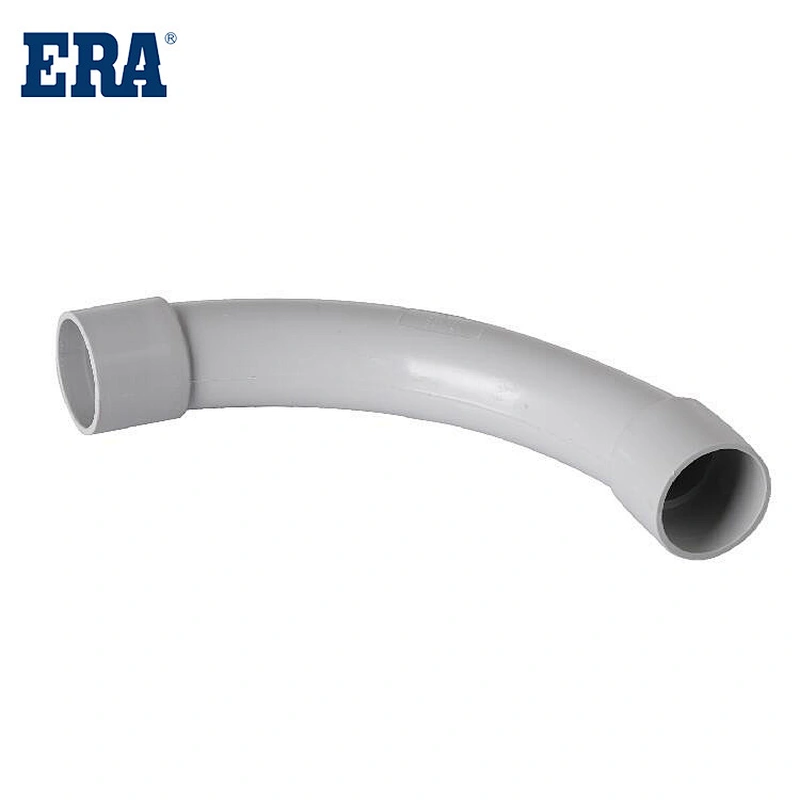

PVC-U STANDARD BEND 90°(HD)

Model NO.: AED014

1. The inner and outer walls of the casing are smooth and the friction coefficient is small. It can reduce the resistance of wires and cables in the pipeline.
2. High compression resistance, it can be installed in the concrete in the open or concealed way, and will not be damaged under pressure. Medium and heavy pipe series are suitable for concealed laying in the concrete.
3. The casing has good impact resistance and heat resistance. During concrete pouring, the casing can withstand normal tamping impact without cracking, and will not soften and deform under the effect of concrete setting.
4. The casing has good moisture resistance, acid and alkali resistance, will not rust, and is acid, alkali and oil resistant. All joints shall be bonded with PVC adhesive according to the regulations, which can prevent water from seeping into the pipe and has better moisture-proof effect. Therefore, it is suitable for use in corrosive environment.

Product Description

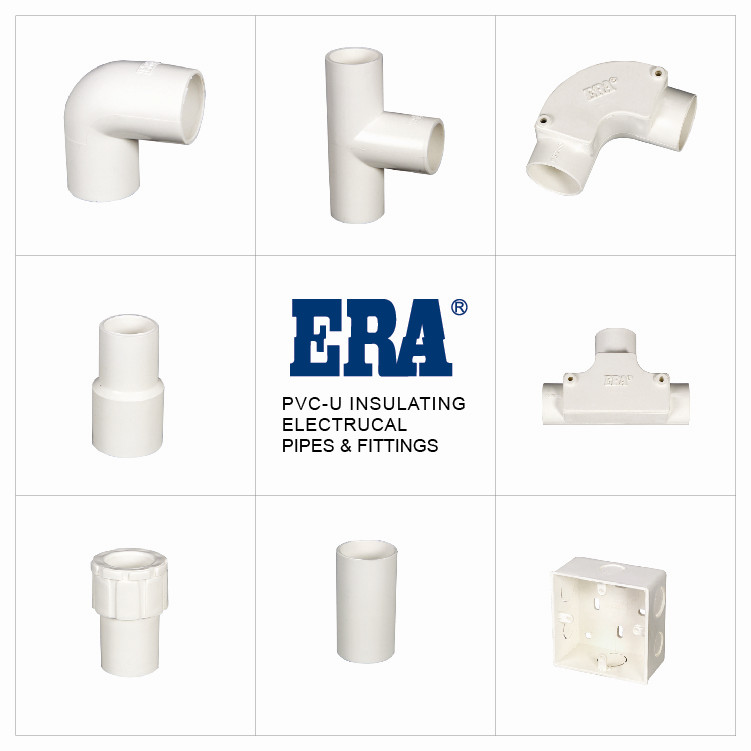

PVC-U INSULATING ELECTRICAL PIPE AND FITTINGS
ERA PVC-U INSULATING ELECTRICAL PIPE AND FITTINGS, STANDARD BEND 90°(HD), AED014,AS/NZS 2053,WATERMARK

ERA CO., LTD. a listed company, is the leading manufacturer in China specialized in PVC, PVC, CPVC, PE, PP piping systems
With an annual production capacity of 600,000 tons, ERA Co., ltd has more than 4000 employees in 12 factories covering 1332000 square meters in China.
Equipped with 900 injection machines, 300 extrusion machines and 12000 moulds, ERA reached a sales turnover of USD900,000,000 in 2019, including export sales covering 146 countries all over the world.

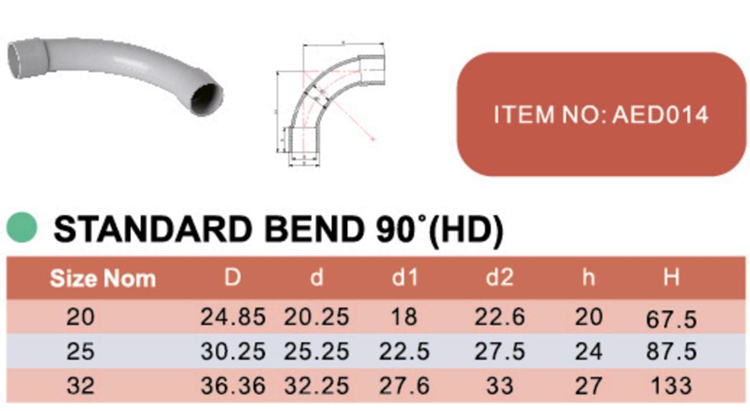

Specification：

Model Number	AED014	Material	PVC-U
Description	PVC-U STANDARD BEND 90°(HD)	Size	20-32MM
Standard	ISO3633	Color	Grey
Working Pressure	/	Temperature	Max 60°C / 140°F
Connection	Socket & Thread	Certificate	WATERMARK

Main Products：

PVC-U insulation inflammable electrical casing pipe and fittings are one of the traditional products of our company. After the continuous adjustment and improvement of Xiadu flexible cast pipe for more than ten years, its process and formula have been very mature, coupled with strict quality control system, so that our products have been located in the top of the whole industry.

1. Compression resistance: medium conduit and heavy conduit can withstand 750n and 1250n pressure respectively, so it can be installed or hidden in the concrete, will not be crushed, heavy pipe series is especially suitable for use in the concrete needs to tamp and vibration engineering.

2. Anti-impact and heat resistance: the conduit in the concrete pouring process, can withstand normal tamping impact without rupture, and under the action of concrete condensation, will not soften deformation.

3 Flame retardant: has a high oxygen index value, so the catheter is not easy to burn, and from the fire is self-extinguishing, the flame will not spread along the pipeline.

4. Corrosion resistance and insect control: pvc conduit has excellent acid and alkali resistance, will not rust, and does not contain plasticizer, no odor to attract insects and mice, so no insect pests.

5. Insulation: ac2000v and 50hz will not break down under the state of immersion, excellent insulation performance, so it can effectively prevent accidental leakage and electric shock accidents.

6. Convenient construction: It is convenient to cut off the catheter. The corresponding special spring is inserted into the catheter below d32, which can be bent to the required Angle at room temperature

FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.

2.What is your delievery time?
The time of delievery is around 30-45days.

3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
