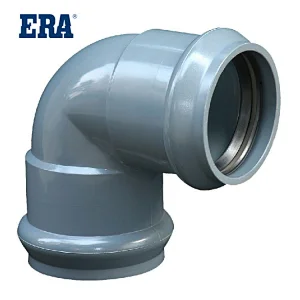

PVC FITTINGS TWO FAUCET 90°ELBOW

Model NO.: GP002

1. PVC pipe has good tensile and compressive strength
2. The wall of PVC pipe is very smooth, so the resistance of water flow is very small. Its water conveyance capacity is 20% higher than that of cast iron pipe with the same pipe diameter, and the water conveyance effect is very high.
3. The corrosion resistance and drug resistance of PVC pipe are also very good, with good acid, alkali and corrosion resistance. It is not affected by moisture and soil acidity and alkalinity, and has a long service life
Long life.
4. Pvc pipe also has good water tightness, which can maintain good water tightness whether the pipe is connected by adhesive or rubber ring.
5. Pvc pipe has good tensile and thermal stability, and can be used in different environments.
6. The hardness of PVC pipe is good, so it can be used as a drain pipe to prevent insect and ant erosion and has a longer service life.

Product Description

PVC PRESSURE FITTINS WITH GASKET
ERA Piping systems,PVC Pipe Fitting,TWO FAUCET 90° ELBOW, GP002，Pressure with gasket(ISO 1452),CE

System:

With High Performance Gasket.

Scope:

Gasketed pipe is required by many municipalities for public sewage systems，It is typically installed underground.

Specification:

DIN gaskets are designed specifically for DIN fittings.

Fields of application:

Piping networks for piping system in water treatment plant.

Specification:

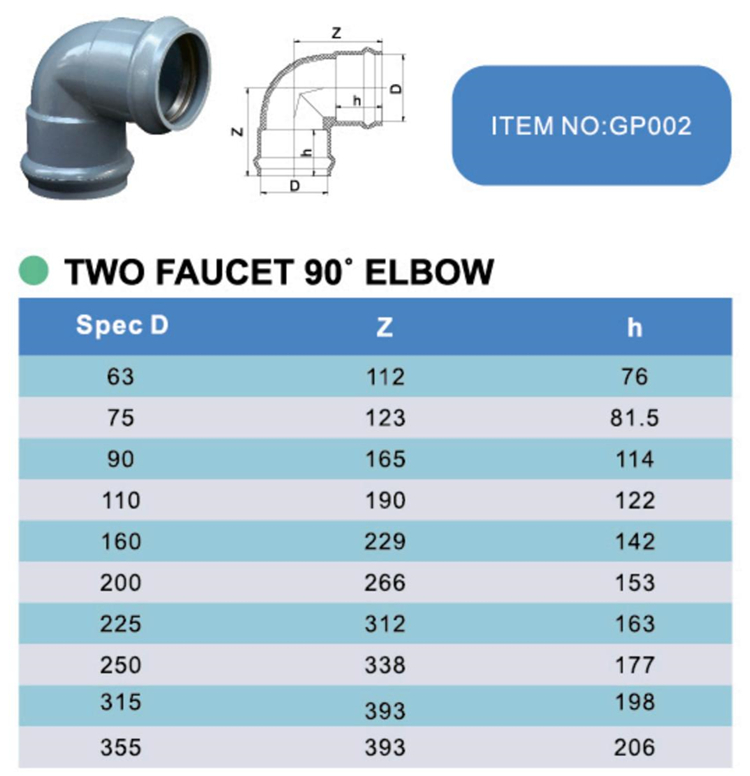

Model Number	GP002	Material	PVC
Description	PVC TWO FAUCET 90° ELBOW	Size	63-355MM
Standard	ISO 1452	Color	Light Grey
Working Pressure	PN10 10Bar,1.0Mpa	Temperature	Max 60°C / 140°F
Connection	GASKET	Certificate	CE

Main Products

Company introduction

Certificate exhibition

The 90° elbow made of pvc is a kind of connecting pipe commonly used in plumbing installation. It is connected at the bend of the pipe to change the direction of the pipe. Other names: 90° elbow, right-angle elbow, love and bend, stamping elbow, pressing elbow, mechanism elbow, welding elbow, etc.

Uses: Connect two pipes with the same or different nominal diameters, so that the pipes can be turned at 90 degrees and various degrees.
