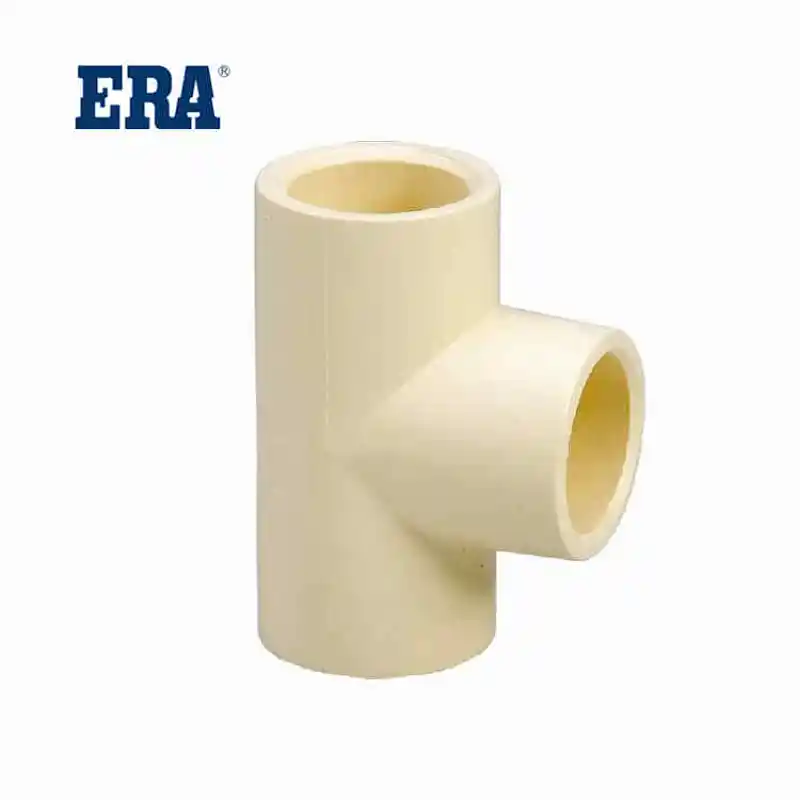

CPVC TEE ,CTS/ASTM D2846 STANDARD,PRESSURE PIPES AND FITTINGS FOR HOT AND COLD
CPVC TEE ,CTS/ASTM D2846 STANDARD,PRESSURE PIPES AND FITTINGS FOR HOT AND COLD
TEE
TEE
TEE
TEE
CPVC TEE ,CTS/ASTM D2846 STANDARD,PRESSURE PIPES AND FITTINGS FOR HOT AND COLD
TEE
TEE
TEE
TEE

TEE

CPA004
1. CPVC pipes are mainly made of PVC-C resin with excellent heat resistance and insulation properties. CPVC products are recognized as green and environmentally friendly products, and their excellent physical and chemical properties are attracting more and more attention in the industry.
2. The heat resistance temperature of CPVC pipe is 15 ℃ higher than that of ordinary UPVC double wall corrugated pipe, and it has sufficient strength.
3CPVC material, because its chlorine content is significantly higher than PVC, its flame retardancy and smoke density index are significantly improved
4CPVC pipe is light in weight, high in strength, simple in construction and laying method, convenient and fast in installation and connection, and good in connection and sealing performance.
5CPVC pipe material is corrosion resistant, anti-aging and has a service life of more than 50 years.
CPVC CTS PIPES AND FITTINGS
ERA Piping Systems, CPVC Pipe Fitting ,CPVC PRESSURE PIPES, TEE , CPA004, CTS (ASTM 2846) , NSF-pw & UPC

System:  CPVC Copper Tube Size (CTS) Hot and Cold Domestic Water Distribution

Specification:

It is lightweight, easy to assemble and install. Job-site erection of a leakproof joint can be made in only a minute with solvent cement, or by threading.

Technology:  In July,2014, Yonggao Research Institue was officially put into use with total investment of 35 million RMB, six-storey design of over 5000 square meters. Now Yonggao has set up independent research system in joint with Shanghai, Anhui,Guangdong ,and Tianjin branches.

ERA R&D department is the one of the strongest resesrch team naitionwide with the latest national laboratory equipment and high-tech talent.

Referenced Standards: CTS / ASTM D2846standard

Specification:

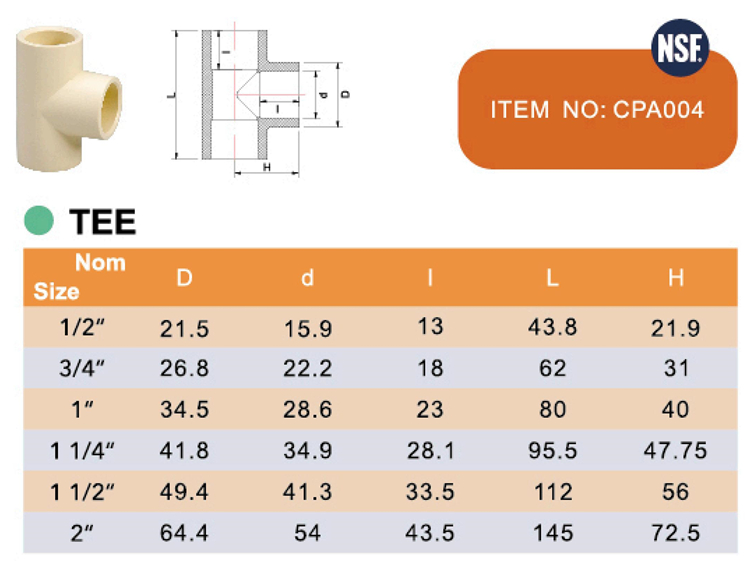

Model NumberCPA004MaterialCPVC
DescriptionCPVC TEESize1/2''-2''
StandardCTS / ASTM D2846ColorIvory color
BrandERATemperatureMax82.2°C / 180°F
ConnectionSocket or ThreadCertificateNSF、UPC
