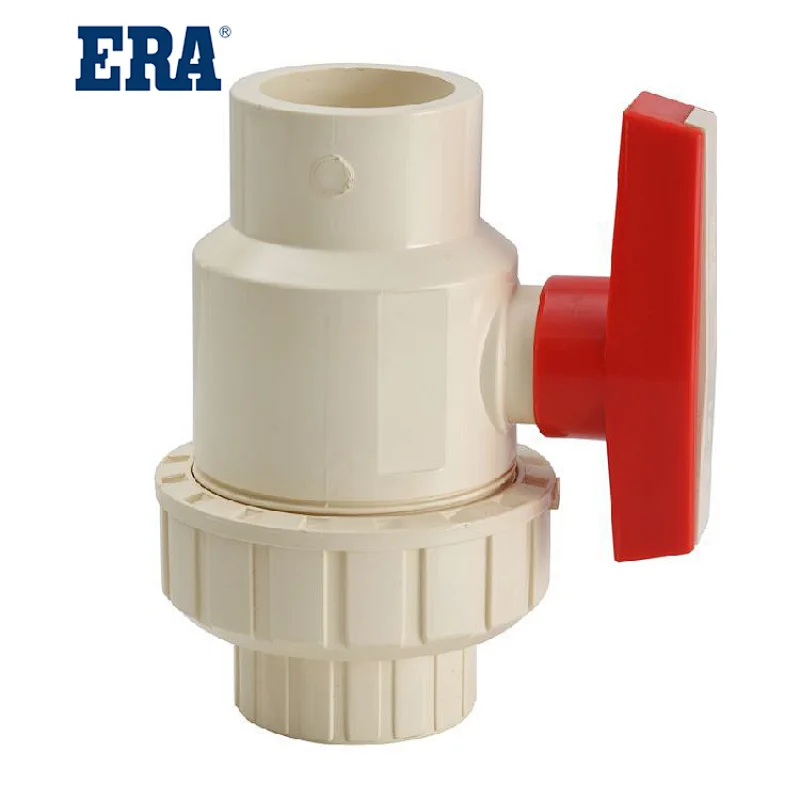

SINGLE UNION BALL VALVE
SINGLE UNION BALL VALVE
SINGLE UNION BALL VALVE
SINGLE UNION BALL VALVE
CPVC CTS AND ASTM D2846 STANDARD SINGLE UNION BALL VALVE,PIPES AND FITTINGS FOR HOT AND COLD
SINGLE UNION BALL VALVE
SINGLE UNION BALL VALVE
SINGLE UNION BALL VALVE
SINGLE UNION BALL VALVE

SINGLE UNION BALL VALVE

CPAC03
1. The tensile strength, bending strength, bending modulus and bearing capacity of CPVC are higher than those of PVC and PP
2. Chemical corrosion resistance, heat resistance and weather resistance are higher than PVC
3. The transportation of drinking water is not affected by chlorine in the water
4. Good flame retardancy, no dripping during combustion, slow combustion and diffusion, no toxic gas.
5. Good flexibility, easy installation, can be connected with solvent.
CPVC CTS PIPES AND FITTINGS
ERA Piping Systems, CPVC Pipe Fitting ,SINGLE UNION BALL VALVE, CPAC03, CTS (ASTM 2846) , NSF-pw & UPC

Specification:
The CTS plumbing products are made to copper tube outside diameter dimensions, in accordance with ASTM D-2846 specifications, and have an SDR 11 wall thickness.
The pressure ratings of the CTS SDR 11 systems are 400 psi (pounds per square inch) at 73 F and 100 psi at 180 F. CPVC plumbing pipe is sold in both straight lengths and (in small diameters) coils.

Multipul Customer Structure:

1. OEM Manufacturers.

2. Building material Supermarkets

3. Wholesalers and Distributors

4. Governmental project

Range of products:  covering overall pipe fields in housing, industry,agriculture and governmental use.

Variety of products:  covering overall types of water-supply, drainage, electricity,gas,heating, valves,etc.

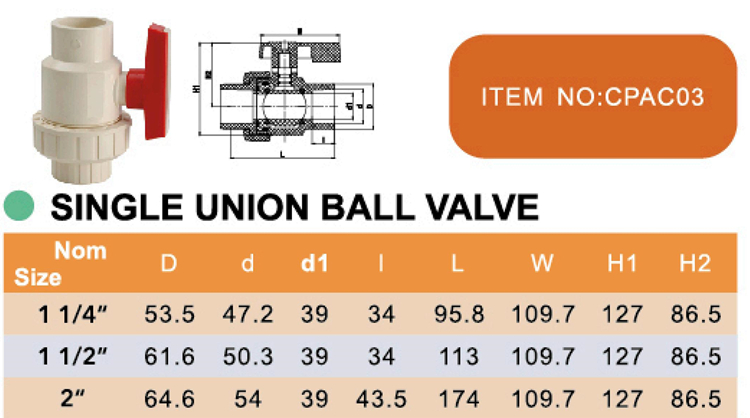

Specification:
Model NumberCPAC03MaterialCPVC
DescriptionSINGLE UNION BALL VALVESize1 1/4''-2''
StandardCTS / ASTM D2846ColorIvory color
BrandERATemperatureMax82.2°C / 180°F
ConnectionSocket or ThreadCertificateNSF、UPC
