ERA PVC/UPVC/Pressure Pipe fittings NSF Certificate SCH80 Stop Valve Type II with Professional China Plastic Manufacturer
ERA PVC/UPVC/Pressure Pipe fittings NSF Certificate SCH80 Stop Valve Type II with Professional China Plastic Manufacturer

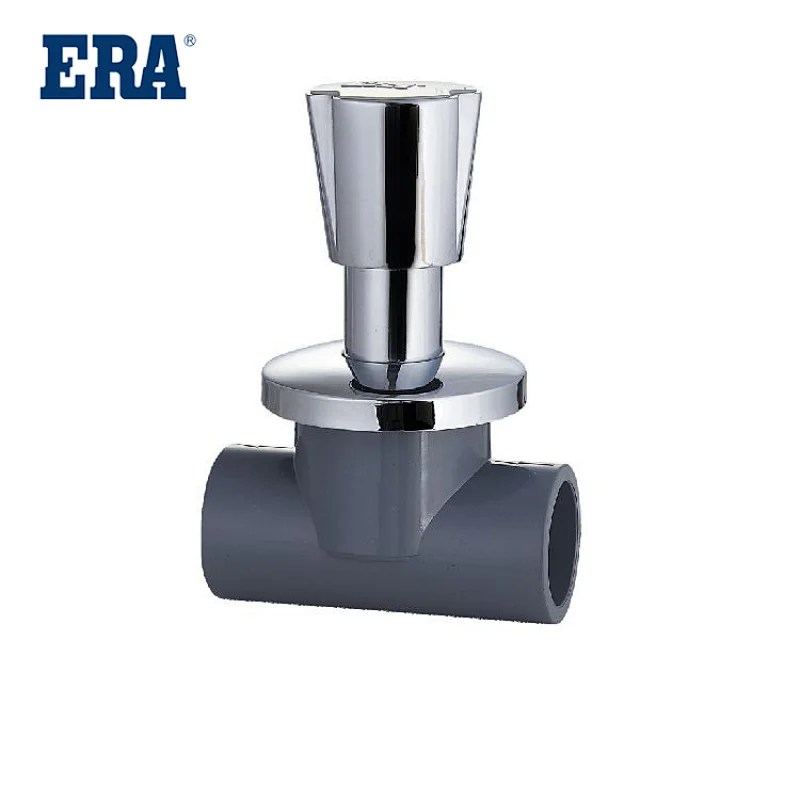

PVC Stop Valve Type II
PVC Stop Valve Type II
PVC Stop Valve Type II
PVC Stop Valve Type II
PVC Stop Valve Type II
ERA PVC/UPVC/Pressure Pipe fittings NSF Certificate SCH80 Stop Valve Type II with Professional China Plastic Manufacturer
PVC Stop Valve Type II
PVC Stop Valve Type II
PVC Stop Valve Type II
PVC Stop Valve Type II
PVC Stop Valve Type II

PVC Stop Valve Type II

UP8S013
ERA PVC/UPVC/Pressure Pipe fittings NSF Certificate SCH80 Stop Valve Type II with Professional China Plastic Manufacturer

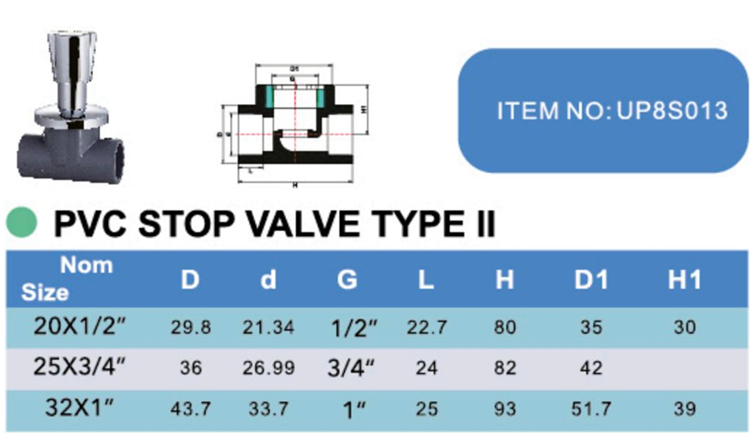

ERA Piping Systems, PVC Pressure Pipe, PVC Stop Valve Type II, UP8S013 , Schedule 80 (ASTM D2467), NSF-pw & UPC



Model Number:

UP8S013

Material

PVC

Description:

PVC Stop Valve Type II

Standard

SCH80 ASTM D2467

Temperature:

Max 60℃ /140℉

Working Pressure:

PN16 ,16Bar, 1.6Mpa

Size:

20*1/2''--32*1''

Certificate:

NSF UPC

Connection:

SOCKET OR THREAD

Color:

WHITE,BLACK,GREY

Scope: Both pipe brands and our molded and fabricated fittings are ideal for numerous applications including chemical delivery systems, potable water systems, water treatment systems, irrigation systems, vacuum lines, and many other industrial applications such as chilled water systems, industrial plating, and chemical drainage systems. We also offer custom dimensions and lengths.
This specification covers PVC Schedule 80 pipe and solvent Cement fittings for pressure applications.This system is Intended for pressure applications where the operating temperature will not exceed 140°F.
PVC Schedule 80 Pressure Pipe and Fitting System
Specification: PVC Schedule 80 Fittings, ASTM D2467, NSF/ANSI Standard 14, NSF/ANSI Standard 61, 2,000 psi at 73F, Maximum service temperature 140F, Socket connection.


FAQ

1.What is your MOQ?

 Our MOQ is usually 5 CTNS.

2.What is your delievery time?

 The time of delievery is around 30-45days.

3.What is the shipping port?

 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?

 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?

 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?

Our company is located in the Taizhou Zhejiang Province,China.

If you would like to have a visit, you are much welcome.

7.How about the samples?

We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?

1 Genuine produces with excellent quality and competitive price.

2 Cooperating with the customers all over the world and knowing the markets very well.

3 ERA is a listed company. Everything can be rest assured working with us.

4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
