CPVC PRESSURE PIPES AND FITTINGS,DIN STANDARD TEE 90° FOR HOT AND COLD
CPVC PRESSURE PIPES AND FITTINGS,DIN STANDARD TEE 90° FOR HOT AND COLD
TEE 90°
TEE 90°
TEE 90°
TEE 90°
CPVC PRESSURE PIPES AND FITTINGS,DIN STANDARD TEE 90° FOR HOT AND COLD
TEE 90°
TEE 90°
TEE 90°
TEE 90°

TEE 90°

CP003
PVC pipe is not only one of the earliest plastic pipes to be developed and applied, but also a synthetic material that is loved, popular and widely used in the world today. PVC-U (hard polyvinyl chloride) water supply and drainage pipe fittings are widely used in the building water supply and drainage industry due to their strong corrosion resistance, easy bonding, low price, and hard texture.
CPVC DIN PIPES AND FITTINGS

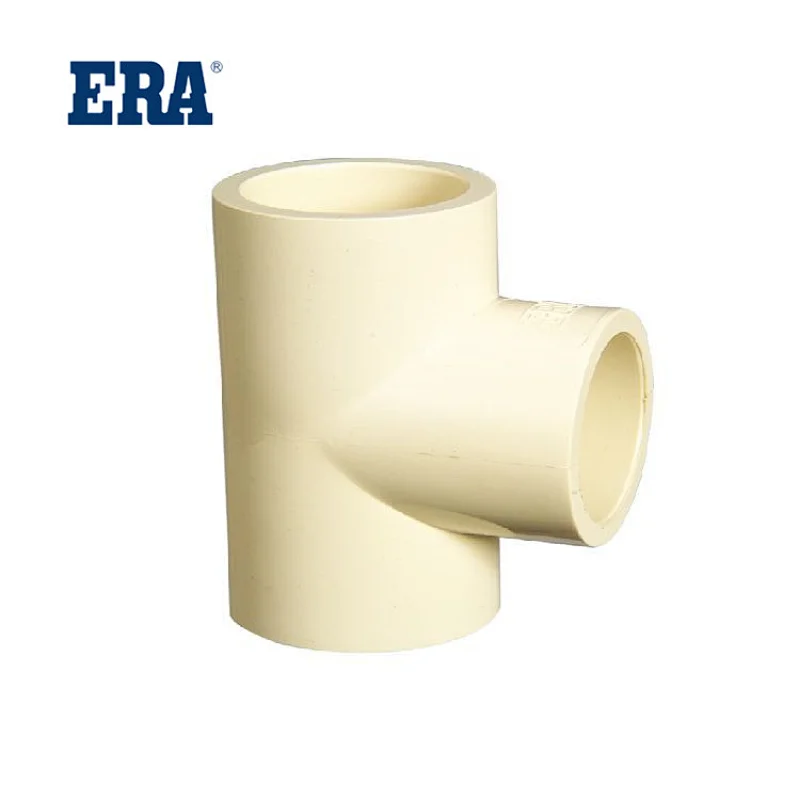

ERA Piping Systems, CPVC Pipe Fitting, TEE 90°, CP003, (DIN STANDARD), CE

System:  The ERA brand CPVC fittings is ideally suited for hot and cold water pressure distribution systems in residential and commercial applications.

Specification:  CPVC has an operational temperature range of 0°C - 80°C (32°F - 176°F), which is suitable for high temperature environments. The excellent mechanical characteristics, high tensile strength, stiffness, and impact strength are evident even at increased temperatures.

Fields of application:  Piping networks for transferring liquid in waste water treatment plant.

Hot Tags:  CPVC fittings tee 90°, China, manufacturers, suppliers, factory

CPVC is mainly used for the production of plates, bars, pipes to transport hot water and corrosive media. It can maintain sufficient strength when it does not exceed 100 ℃, and can be used for a long time under higher internal pressure. The weight of CPVC is 1/6 of copper and 1/5 of steel, and it has very low thermal conductivity. Therefore, the pipes made with CPVC are light in weight and have good thermal insulation, and do not need heat preservation.

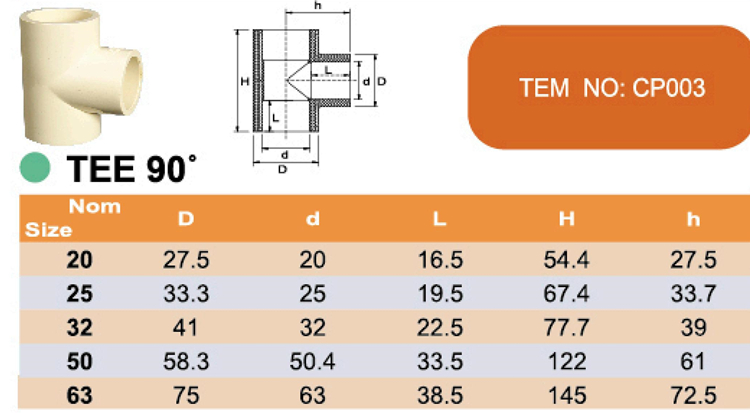

Specification:
Model NumberCP003MaterialCPVC
DescriptionTEE 90°Size20-63MM
StandardDIN8079ColorIvory color
BrandERATemperature40-50°C（104-122°F）
ConnectionSocket or ThreadCertificateCE


Main Products
Company introduction
Certificate exhibition
As a new type of pipeline, CPVC pipeline has excellent corrosion resistance. In recent years, it has been widely used in steel, metallurgy, petroleum, chemical industry, fertilizer, dye, pharmacy, electric power, environmental protection and sewage treatment and other industries. It is an ideal substitute for metal anti-corrosion materials.
