PR028
1. Non toxic and hygienic. It is not only used for cold and hot water pipes, but also for purified drinking water systems.
2. Heat preservation and energy conservation.
3. Good heat resistance, which can meet the use requirements of hot water system in building water supply and drainage specifications.
4. Long service life.
5. It is easy to install and firmly connected.
6. The materials can be recycled. Does not affect product quality
PPR DIN PIPES AND FITTINGS
ERA Piping Systems, PPR Pipe Fitting , PPR II FEMALE THREAD BUSH , PR028, (DIN8077/8088) , DVGW

System:  ERA PPR pipes, due to its high impact strengh and light weight makes it most reliable and sophisticated system to be employed in plumbing applictions and  water supply(hot and cold).

Scope:
PPR pipes and fittings are suitable for hot and cold water transfer in buildings, underfloor and central heating systems. They can also be used for air ducts in industry and agriculture.

Specification:
Pipe and fittings shall be manufactured from 100% new PPR raw material from Korea.

These PPR systems have a high temperature and pressure resistance and are suitable for drinking water.

PPR pipe has a smooth inner surface, thus not letting any calcification to happen inside the pipe.

PPR has been designed and produced as a piping system for hot and cold water supply as well as for heating applications.

Referenced Standards:  DIN 8077&DIN8078  DVGW examination certificate


Specification:

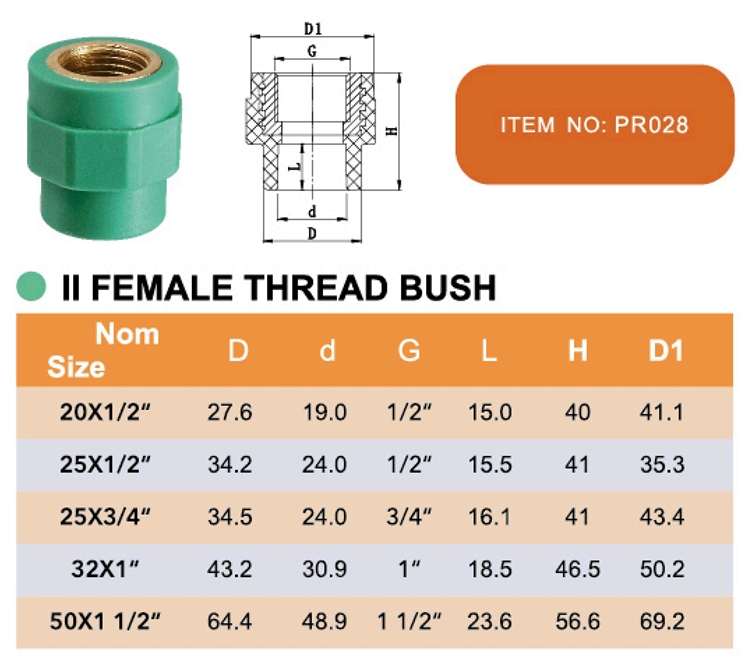

Model NumberPR028MaterialPPR
DescriptionPPR II FEMALE THREAD BUSHSize20x1/2''-50x1 1/2''
StandardDIN8077/8088ColorGREEN、GREY
BrandERATemperatureMax 95°C / 203°F
ConnectionSocket CertificateDVGW
