ERA PPR DIN8077/8088 STANDARD FEMALE THREAD ELBOW, PRESSURE FOR HOT AND COLD
ERA PPR DIN8077/8088 STANDARD FEMALE THREAD ELBOW, PRESSURE FOR HOT AND COLD

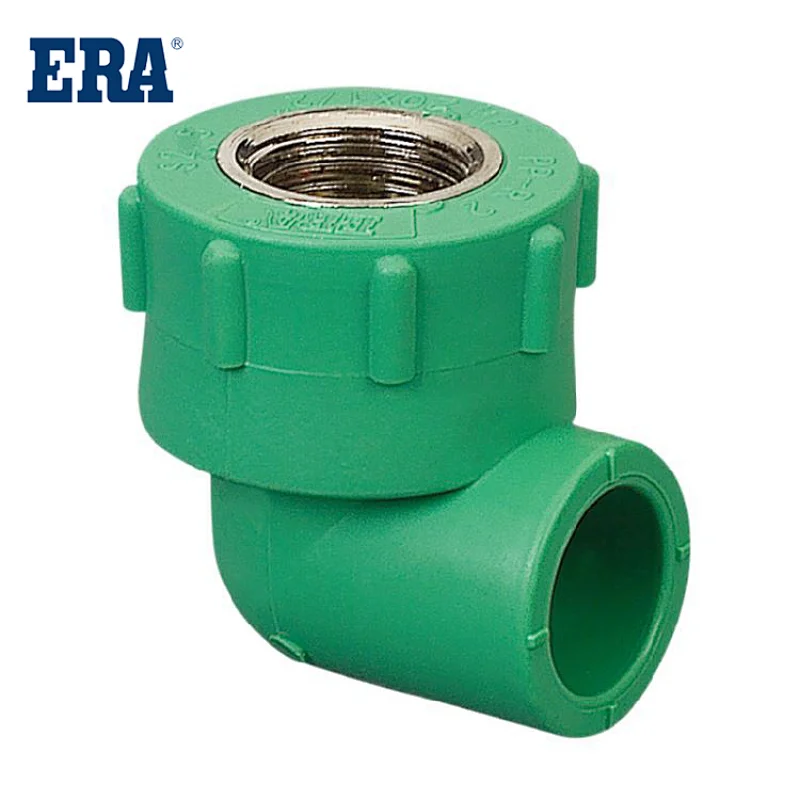

PPR FEMALE THREAD ELBOW
PPR FEMALE THREAD ELBOW
PPR FEMALE THREAD ELBOW
PPR FEMALE THREAD ELBOW
ERA PPR DIN8077/8088 STANDARD FEMALE THREAD ELBOW, PRESSURE FOR HOT AND COLD
PPR FEMALE THREAD ELBOW
PPR FEMALE THREAD ELBOW
PPR FEMALE THREAD ELBOW
PPR FEMALE THREAD ELBOW

PPR FEMALE THREAD ELBOW

PRE03
1. Hygiene: no chemical action, it is a green building material with reliable hygienic performance.
2. The installation is convenient, reliable and time-saving.
3. Heat preservation and energy saving, with little heat loss for hot water pipeline.
4. Light weight, high strength, good toughness and good impact resistance.
5. The inner and outer walls of the product are smooth, the flow resistance is small, and the energy consumption of the fluid conveying system is small.
6. Strong heat resistance
PPR DIN PIPES AND FITTINGS
ERA Piping Systems, PPR Pipe Fitting , FEMALE THREAD ELBOW , PN12.5/PN20/PN16/PN25, PRE03, (DIN8077/8088) , DVGW

System:  ERA PPR pipes, due to its high impact strengh and light weight makes it most reliable and sophisticated system to be employed in plumbing applictions and  water supply(hot and cold).

Scope:
ERA brand PPR pipes are suitable for transferring or discharging chemical media, such as industrial piping system.
ERA’s PPR is the ideal and above all cost-effective solution for piping installations in schools, hospitals, hotels, office blocks as well as in fields of modular construction.

Specification:
PPR is very economically placed in comparison to most of the alternative piping system.
PPR has been designed and produced as a piping system for hot and cold water supply as well as for heating applications.
These PPR systems have a high temperature and pressure resistance and are suitable for drinking water.

Referenced Standards:  DIN 8077&DIN8078  DVGW examination certificate


Specification:

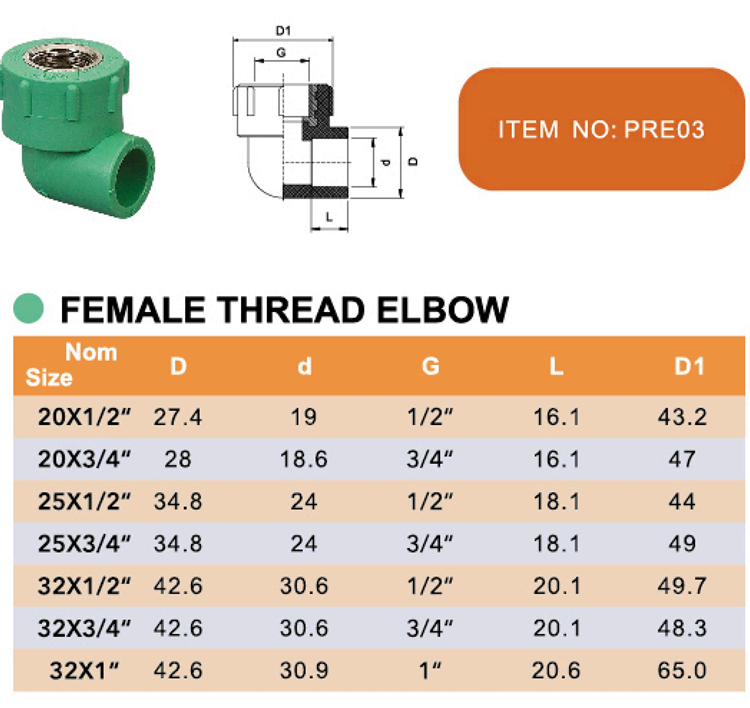

Model NumberPRE03MaterialPPR
DescriptionPPR FEMALE THREAD ELBOWSize20x1/2''-32x1''
StandardDIN8077/8088ColorGREEN、GREY
BrandERATemperatureMax 95°C / 203°F
ConnectionSocket CertificateDVGW
