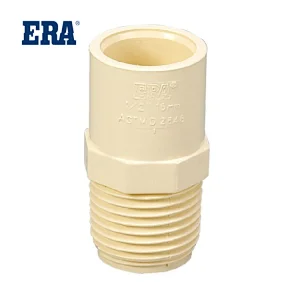

CPVC CTS STANDARD MALE ADAPTOR,ASTM D2846 PIPES AND FITTINGS FOR HOT AND COLD
CPVC CTS STANDARD MALE ADAPTOR,ASTM D2846 PIPES AND FITTINGS FOR HOT AND COLD
MALE ADAPTOR
MALE ADAPTOR
MALE ADAPTOR
MALE ADAPTOR
CPVC CTS STANDARD MALE ADAPTOR,ASTM D2846 PIPES AND FITTINGS FOR HOT AND COLD
MALE ADAPTOR
MALE ADAPTOR
MALE ADAPTOR
MALE ADAPTOR

MALE ADAPTOR

CPA005
CPVC power pipe has the advantages of corrosion resistance, aging resistance, no scaling, small activity resistance, low thermal conductivity, good insulation function, construction equipment and repair convenience, etc. It is widely used in electricity and optical cable protection, village building, agricultural drainage and irrigation and other construction, industry and agriculture.
CPVC CTS PIPES AND FITTINGS
ERA Piping Systems, CPVC Pipe Fitting , MALE ADAPTOR ,CPA005, CTS (ASTM 2846) , NSF-pw & UPC

System:
ERA CPVC has a rated working pressure of 100 PSI at 180 degrees Fahrenheit and 400 PSI at 73 degrees Fahrenheit.

Scope:
The CPVC pipe has comparable corrosion resistance to PVC pipe yet it is suitable for handling corrosive material at temps 40 to 60 deg F higher than PVC.

Specification:
The CTS plumbing products are made to copper tube outside diameter dimensions, in accordance with ASTM D-2846 specifications, and have an SDR 11 wall thickness.

Integration service:
Advances Technology: PVC-U pipe for water supply and drainage in nanometer, PPR bacterium-proof pipe in nanometer, CPVC piping system, Three-wall composite enhanced tubes for underground in polyethylene,and polypropylene.


Specification:

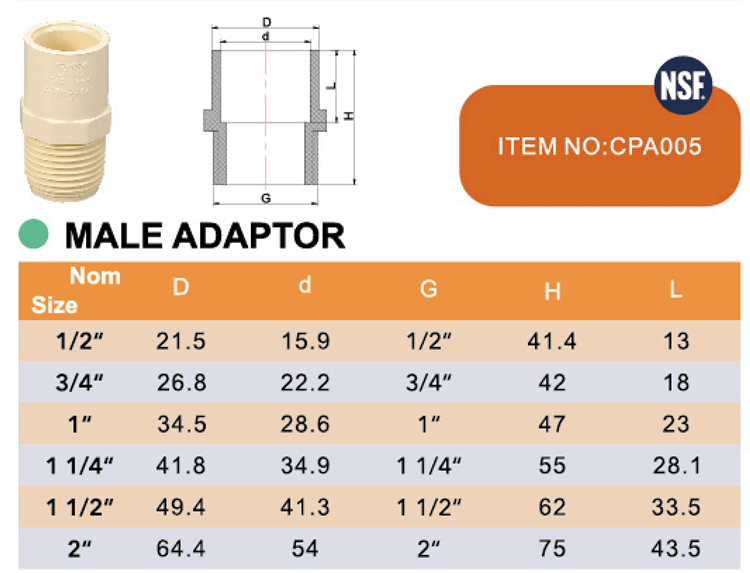

Model NumberCPA005MaterialCPVC
DescriptionMALE ADAPTORSize1/2''-2''
StandardCTS / ASTM D2846ColorIvory color
BrandERATemperatureMax82.2°C / 180°F
ConnectionSocket or ThreadCertificateNSF、UPC


Main Products
Company introduction
Certificate exhibition
Features:
1, excellent hardness and tensile strength, superior pipeline safety performance.
2, good quality, the service cycle can generally reach more than 50 years.
3, the pipeline is resistant to the corrosion of inorganic, alkali and salt, especially suitable for industrial sewage discharge and transportation.
4, smooth and flat surface friction is small, smooth water flow, not easy to plug, reduce maintenance costs.
5, the material oxygen index is high, will not burn, and self-extinguishable function.
