CPS007
1. High quality corrosion resistance.
2. Light weight, convenient transportation and installation.
3. The project construction is convenient and has obvious economic benefits.
4. The electric tube also has the advantages of strong compressive strength, high temperature resistance, long service life, etc., and basically has no thermal conductivity.

Product Description
ERA  FEMALE THREAD ELBOW CPVC SCH80 PIPES AND FITTINGS

Scope: CPVC can withstand corrosive water at temperatures greater than PVC,typically by 40-50°C（104-122°F）or higher,contributing to its popularity as a material for water-piping systems in residential and commercial construction.CPVC maximal operating temperature peaks at 200°F(93°C).
Specification: CPVC is readily workable,including machining,welding,and forming.Because of its excellent corrosion resistance at elevated temperatures,CPVC is ideally suited for self-supporting construction where temperatures up to 200°F(93°C) are present.The ability to bend,shape,andweld CPVC enables its use in a wide variety of precesses and applications.It exhibits fire-retardant properties.

Product Advantage:
1. Excellent surface hardness and tensile strength of pipe.
2. Good anti-aging, the normal service life can reach more than 50 years.
3. The pipeline has excellent corrosion resistance to inorganic acid, alkali and salt, suitable for industrial sewage discharge and transportation.
4. Small pipe friction coefficient, smooth water flow, not easy to jam, less maintenance workload.
5. The material has high oxygen index and self-extinguitionability.
6. The expansion coefficient of the pipeline is small, 0.07mm/℃, and the deformation is small under the influence of temperature. The thermal conductivity coefficient and elastic modulus are small, and the anti-freezing performance is excellent compared with the cast iron drainage pipe.
7. The pipe and pipe fittings can be connected by adhesive, the construction method is simple, the operation is convenient, and the installation efficiency is high.
8. Good watertightness: PVC-U pipe installation, whether using adhesive or rubber ring connection, has good watertightness.
Referenced Standards:  ASTM F439

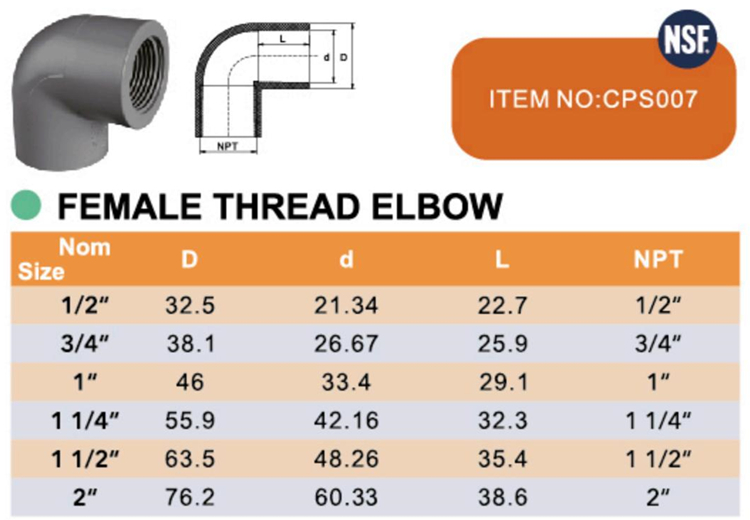

Products Description
Model NumberCPS007MaterialCPVC
DescriptionFEMALE THREAD ELBOWSize1/2''-2''
StandardSCH80、ASTM F439Colorlight grey
BrandERATemperature40-50°C（104-122°F）


Certifacate
