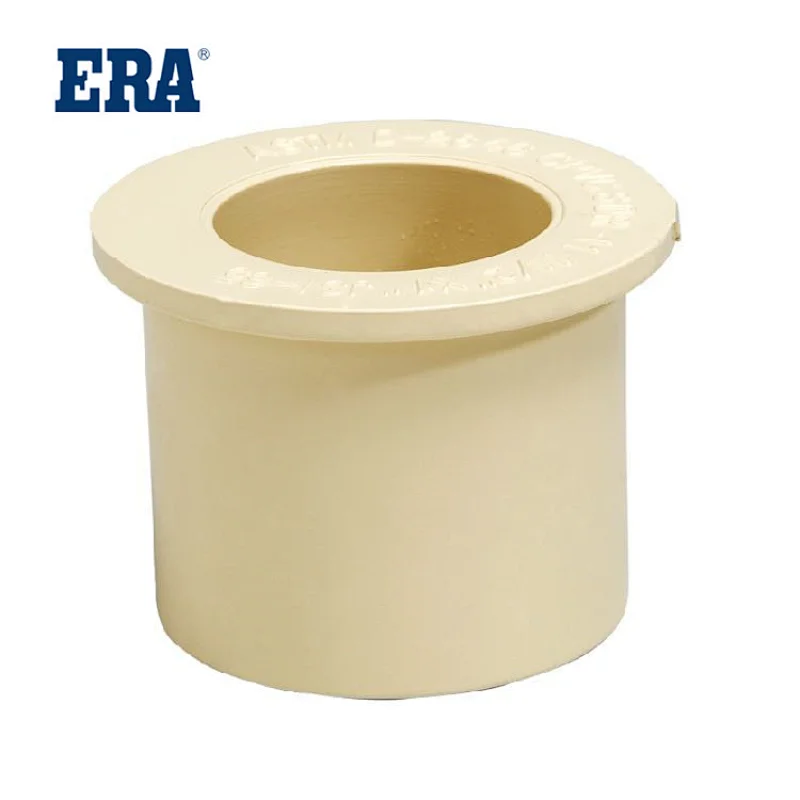

CPVC REDUCING BUSHES

Model NO.: CPA009

1. The tensile strength, bending strength, bending modulus and bearing capacity of CPVC are higher than those of PVC and PP
2. Chemical corrosion resistance, heat resistance and weather resistance are higher than PVC
3. The transportation of drinking water is not affected by chlorine in the water
4. Good flame retardancy, no dripping during combustion, slow combustion and diffusion, no toxic gas.
5. Good flexibility, easy installation, can be connected with solvent.

Product Description

CPVC CTS PIPES AND FITTINGS
ERA Piping Systems, CPVC Pipe Fitting ,REDUCING BUSHES ,CPA009, CTS (ASTM 2846) , NSF-pw & UPC

System:

Meets ASTM standard D2846 for hot and cold water distribution systems.

Meets NSF standard 61 for health effects of drinking water system components (NSF-pw G)

ERA CPVC will never pit or corrode like copper or other metal piping, ensuring a long lifespan without worry.

Scope:

The CPVC pipe has comparable corrosion resistance to PVC pipe yet it is suitable for handling corrosive material at temps 40 to 60 deg F higher than PVC.

CPVC fire sprinkler piping systems are approved for light hazard applications and for use in single and multifamily dwellings.

CPVC piping for potable hot and cold water distribution systems is recognized in all model plumbing codes.

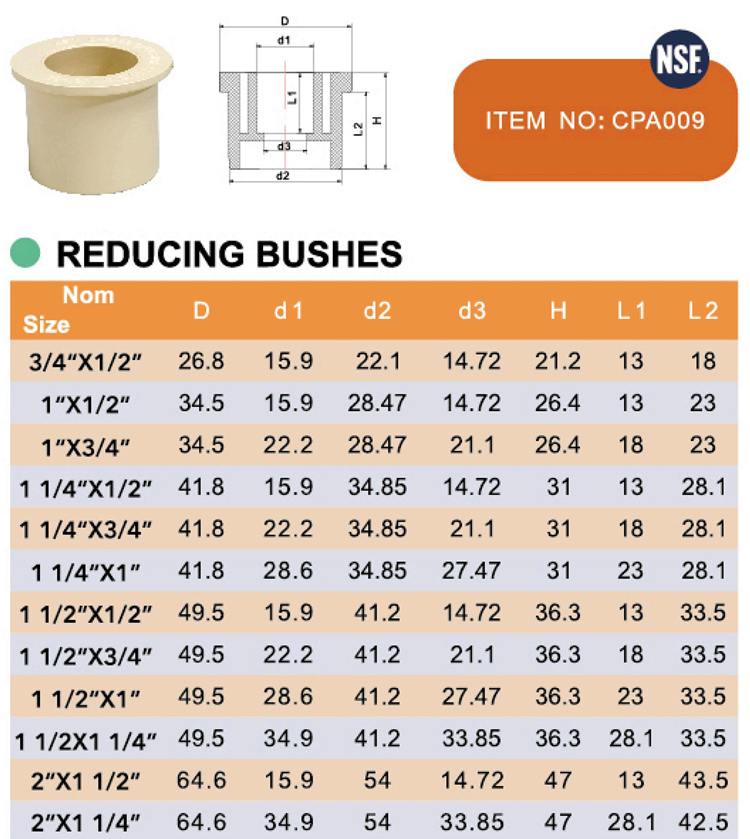

Specification:

Model Number	CPA009	Material	CPVC
Description	CPVC REDUCING BUSHES	Size	3/4''x1/2''-2''x1 1/4''
Standard	CTS / ASTM D2846	Color	Ivory color
Brand	ERA	Temperature	Max82.2°C / 180°F
Connection	Socket or Thread	Certificate	NSF、UPC

Main Products

Company introduction

Certificate exhibition

Features:

In addition to the general pvc drainage pipe light weight, corrosion resistance, scaling, long service life and other characteristics, but also has the following characteristics:

1, non-toxic, sanitary. Materials of molecular hydrogen, carbon, no toxic elements exist, sanitary and reliable, not only for hot and cold water pipes, but also can be used for pure drinking water systems.

2. Heat preservation and energy saving. pvc drainage pipe thermal conductivity 1/200 0.21w/mk, steel pipe.

3, good heat resistance. The softening point of the Vica pvc drain pipe is 131.5℃, and the highest working temperature can reach 95℃, which can meet the requirements of the building water supply and drainage standard hot water system.

4, long service life. Plastic pipe in the working temperature of 70℃, working pressure (P2) under the condition of 1.0mpa, the service life can reach 50 years; At room temperature (20℃), the service life can reach 100 years.

5, easy installation, reliable connection. pvc drainage pipe has good welding performance, pipe, pipe can be connected by hot melt and electric melt, easy installation, reliable connection, the strength of the connection is greater than the strength of dried vegetables themselves.

6. The use of recyclable materials. Plastic waste recycling cleaning, broken pipe, pipe fittings production. The recycled materials shall not exceed 10% of the total amount and shall not affect the product quality.
