ERA BRAND CPVC FITTINGS FEMALE ADAPTOR WITH BRASS INSERT,DIN STANDARD PRESSURE PIPES AND FITTINGS
ERA BRAND CPVC FITTINGS FEMALE ADAPTOR WITH BRASS INSERT,DIN STANDARD PRESSURE PIPES AND FITTINGS
CPVC FITTINGS FEMALE ADAPTOR WITH BRASS INSERT
CPVC FITTINGS FEMALE ADAPTOR WITH BRASS INSERT
CPVC FITTINGS FEMALE ADAPTOR WITH BRASS INSERT
CPVC FITTINGS FEMALE ADAPTOR WITH BRASS INSERT
ERA BRAND CPVC FITTINGS FEMALE ADAPTOR WITH BRASS INSERT,DIN STANDARD PRESSURE PIPES AND FITTINGS
CPVC FITTINGS FEMALE ADAPTOR WITH BRASS INSERT
CPVC FITTINGS FEMALE ADAPTOR WITH BRASS INSERT
CPVC FITTINGS FEMALE ADAPTOR WITH BRASS INSERT
CPVC FITTINGS FEMALE ADAPTOR WITH BRASS INSERT

CPVC FITTINGS FEMALE ADAPTOR WITH BRASS INSERT

CP021
1. CPVC can withstand higher pressure. At the same flow rate, compared with PP-R, PB and PEX pipes, CPVC pipes can use smaller pipe diameters.
2. It is easy to install without special tools, which is applicable to both surface and concealed installation.
3. CPVC is not easy to penetrate oxygen, so the metal parts in the system will not be corroded due to oxidation.
4. It has good flame retardancy, low combustion capacity, and can be extinguished immediately after leaving the fire. It will not produce fire droplets, and can inhibit the generation of smoke and toxic gases.
5. It is not affected by residual chlorine and will not have cracks and leaks.
6. CPVC has strong corrosion resistance to both acid and alkali, and can be used to transport HCL and NaOH liquids.
CPVC DIN PIPES AND FITTINGS
ERA Piping Systems, CPVC Pipe Fitting, FEMALE ADAPTOR WITH BRASS INSERT, CP021, (DIN STANDARD), CE

System:

CPVC DIN 8049 Hot and Cold Domestic Water Distribution

CPVC is used for higher temperature applications than PVC, especially for handling hot corrosive liquids. With similar chemical and corrosion resistance to PVC. Increased chlorine content gives CPVC superior thermal resistance. CPVC is not recommended for use with chlorinated or aromatic hydrocarbons, esters, or polar solvents such as ketones. ERA CPVC materials conform to ASTM Cell Classification 23447-B (formerly designated as Type IV, Grade 1). The maximum recommended service temperature of CPVC products is 93°C (200°F).

Scope:

For hot and cold water applications

Used to join straight lengths of CPVC tubing

Specification:

CPVC has an operational temperature range of 0°C - 80°C (32°F - 176°F), which is suitable for high temperature environments. The excellent mechanical characteristics, high tensile strength, stiffness, and impact strength are evident even at increased temperatures.

Metric Chlorinated Polyvinyl Chloride is corrosion-resistant, has a long service life in an aggressive and/or corrosive environment, and a high safety factor.

Referenced Standards:  DIN 8079 CPVC Plastic Hot and Cold Water Distribution System.


Specification:
Model NumberCP021MaterialCPVC
DescriptionCPVC FEMALE ADAPTOR WITH BRASS INSERTSize20x1/2''-63x2''
StandardDIN8079ColorIvory color
Working PressurePN16,16 Bar,1.6MpaTemperatureMax 82.2℃  / 180°F
ConnectionSocket or ThreadCertificateCE


Main Products
Company introduction
Certificate exhibition


Related Products
ERA BRAND PPR Compact Ball Valve,DIN8077/8088 STANDARD PPR FITTINGS

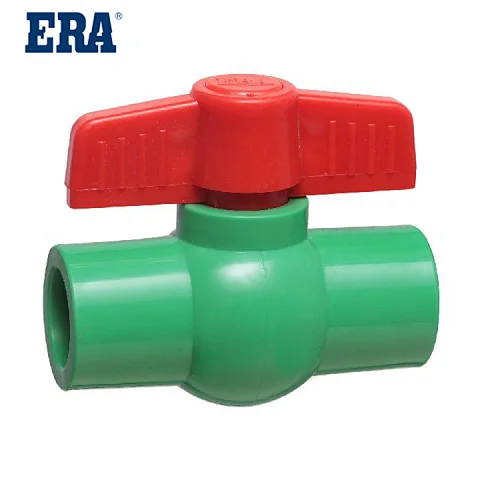

PPR Compact Ball Valve

1. Ppr pipe has good environmental protection and is also very sanitary. it can not only be used as a cold and hot water pipe, but also as a pure drinking water system. 2. Ppr pipe insulation energy saving effect is very good. 3. Ppr pipes have good heat resistance and can meet the requirements of hot water system in building codes. 4. Long service life of ppr pipes 5. Ppr pipes are easy to install and the joints are also very reliable.
ERA BRANDPPR PPR Stop Valve with Crom Handle,DIN8077/8088 STANDARD PPR FITTINGS

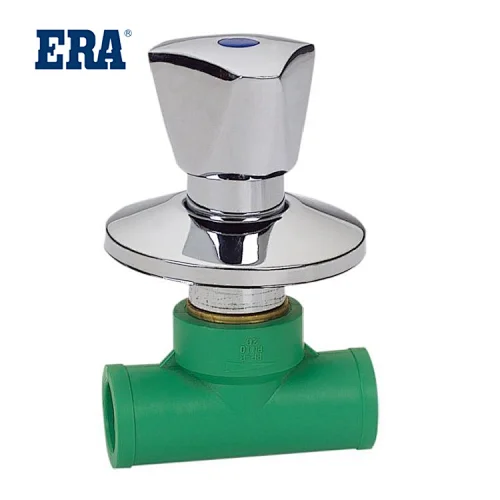

PPR Stop Valve with Crom Handle

1. Beautiful appearance and convenient installation; The product is white, soft in color and beautiful in shape; Smooth inner and outer walls, small fluid resistance 2. Good integrity and reliable quality; It is integrally processed with imported raw materials, and the interface is not easy to crack and leak. 3. During the opening and closing process, the friction between the valve disc and the valve body sealing surface is smaller than that of the gate valve, so it is wear-resistant. 4. The opening height is generally only 1/4 of the valve seat channel, so it is much smaller than the gate valve;   5. Generally, there is only one sealing surface on the valve body and disc, so the manufacturing process is better and it is easy to maintain;   6. The filler is generally a mixture of asbestos and graphite, so the temperature resistance is high. Generally, stop valves are used for steam valves.
ERA BRAND DIN8077/8088 STANDARD PPR Fitting Union Two Side Weld,PRESSURE FOR HOT AND COLD

PPR Fitting Union Two Side Weld

1. Hygiene: no chemical action, it is a green building material with reliable hygienic performance. 2. The installation is convenient, reliable and time-saving. 3. Heat preservation and energy saving, with little heat loss for hot water pipeline. 4. Light weight, high strength, good toughness and good impact resistance. 5. The inner and outer walls of the product are smooth, the flow resistance is small, and the energy consumption of the fluid conveying system is small. 6. Strong heat resistance
ERA BRAND DIN8077/8088 STANDARD PPR Fitting Reducing Socket,PRESSURE FOR HOT AND COLD

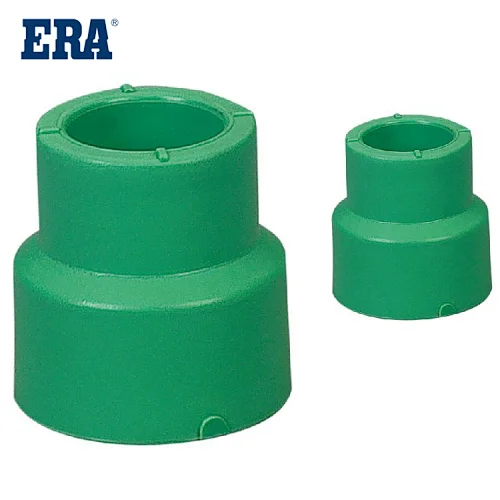

PPR Fitting Reducing Socket

1. Hygiene: no chemical action, it is a green building material with reliable hygienic performance. 2. The installation is convenient, reliable and time-saving. 3. Heat preservation and energy saving, with little heat loss for hot water pipeline. 4. Light weight, high strength, good toughness and good impact resistance. 5. The inner and outer walls of the product are smooth, the flow resistance is small, and the energy consumption of the fluid conveying system is small. 6. Strong heat resistance
PPR DIN STANDARD REDUCING TEE,DIN8077/8088 STANDARD FITTINGS

PPR Fitting REDUCING TEE

1. Non toxic and hygienic. It is not only used for cold and hot water pipes, but also for purified drinking water systems. 2. Heat preservation and energy conservation. 3. Good heat resistance, which can meet the use requirements of hot water system in building water supply and drainage specifications. 4. Long service life. 5. It is easy to install and firmly connected. 6. The materials can be recycled. Does not affect product quality
ERA PPR DIN8077/8088 STANDARD FEMALE THREAD BUSH, PRESSURE FOR HOT AND COLD

PPR FEMALE THREAD BUSH

1. Hygiene: no chemical action, it is a green building material with reliable hygienic performance. 2. The installation is convenient, reliable and time-saving. 3. Heat preservation and energy saving, with little heat loss for hot water pipeline. 4. Light weight, high strength, good toughness and good impact resistance. 5. The inner and outer walls of the product are smooth, the flow resistance is small, and the energy consumption of the fluid conveying system is small. 6. Strong heat resistance
ERA PPR DIN8077/8088 STANDARD FEMALE THREAD ELBOW, PRESSURE FOR HOT AND COLD

PPR FEMALE THREAD ELBOW

1. Hygiene: no chemical action, it is a green building material with reliable hygienic performance. 2. The installation is convenient, reliable and time-saving. 3. Heat preservation and energy saving, with little heat loss for hot water pipeline. 4. Light weight, high strength, good toughness and good impact resistance. 5. The inner and outer walls of the product are smooth, the flow resistance is small, and the energy consumption of the fluid conveying system is small. 6. Strong heat resistance
ERA PPR DIN8077/8088 STANDARDFEMALE THREAD ELBOW WALL PLATE, PRESSURE FOR HOT AND COLD

PPR FEMALE THREAD ELBOW WALL PLATE

1. Ppr pipe is environmentally friendly: ppr pipe is environmentally friendly. Its raw material molecules are only carbon and hydrogen, and there are no harmful and toxic elements. It is also very sanitary. It can not only be used as a cold and hot water pipe, but also as a pure drinking water system. 2. Thermal insulation and energy conservation of ppr pipe: the thermal conductivity of ppr pipe is 0.21w/mk, and the ratio to steel pipe is 1/200, which shows that its thermal insulation and energy conservation effect is very good. 3. Ppr pipe has good heat resistance: ppr pipe has good heat resistance, its Vicat softening point is 131.5 ℃, and its maximum working temperature can reach 95 ℃, which can meet the requirements of hot water system in building codes. 4. The service life of ppr pipe is long: ppr pipe can work at 70 ℃, and its service life can reach more than 50 years. Compared with other materials, its service life is longer. If it works at 20 ℃ at room temperature, its service life can reach more than 100 years. 5. Convenient installation of ppr pipes: because ppr pipes have good welding performance, pipes and pipe fittings can be connected by hot melting and electric melting. The installation is very convenient and the joints are very reliable.
