System: CPVC pipe System
Scope: CPVC can withstand corrosive water at temperatures greater than PVC,typically by 40-50°C（104-122°F）or higher,contributing to its popularity as a material for water-piping systems in residential and commercial construction.CPVC maximal operating temperature peaks at 200°F(93°C).
Specification: CPVC is readily workable,including machining,welding,and forming.Because of its excellent corrosion resistance at elevated temperatures,CPVC is ideally suited for self-supporting construction where temperatures up to 200°F(93°C) are present.The ability to bend,shape,andweld CPVC enables its use in a wide variety of precesses and applications.It exhibits fire-retardant properties.
Referenced Standards: ASTM F439
Products Description

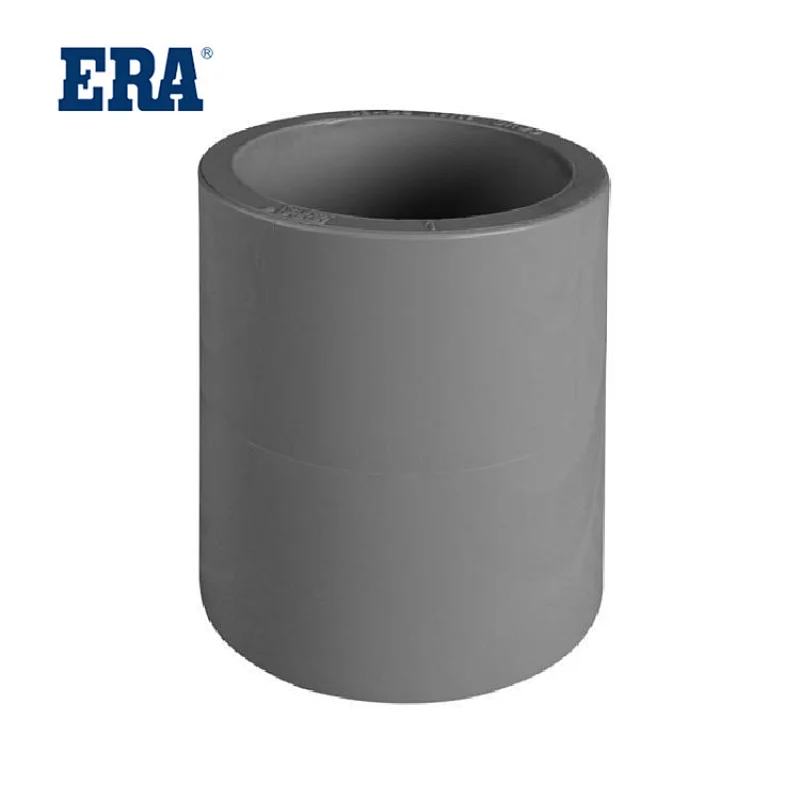

| Model Number | CPS003 | Material | CPVC |
| Description | COUPLING | Size | 1/2''-6'' |
| Standard | SCH80、ASTM F439 | Color | light grey |
| Brand | ERA | Temperature | 40-50°C（104-122°F） |
CPVC is a new type of engineering plastic with broad application prospects. The resin is made by chlorination modification of polyvinyl chloride (PVC) resin, which is a new type of engineering plastic. The product is white or light yellow tasteless, odorless, non-toxic loose particles or powder. PVC resin after chlorination, the molecular bond irregularity increases, the polarity increases, the solubility of the resin increases, the chemical stability increases, so as to improve the heat resistance of the material, acid, alkali, salt, oxidants and other corrosion. The mechanical properties of the hot deformation temperature of the resin are improved, the chlorine content is increased from 56.7% to 63-69%, the softening temperature of Veka is increased from 72-82 ℃ to 90-125 ℃, the maximum service temperature can reach 110 ℃, and the long-term service temperature is 95 ℃. Among them, the performance index of CORZAN CPVC is better.
