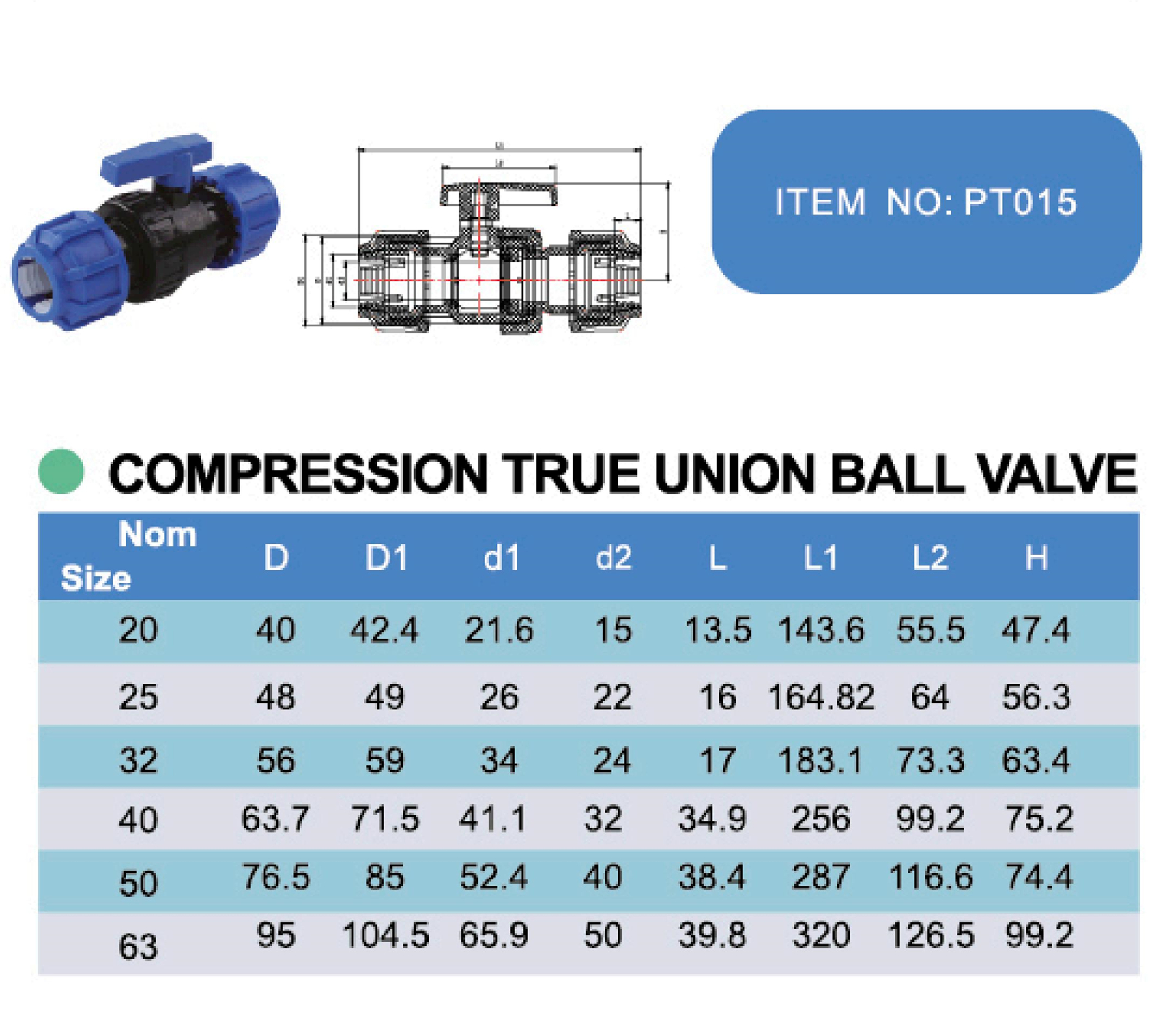

PT015
ERA Piping Systems, PP Thread Fitting , Compression True Union Valve , PT015 , (ENISO1587AS/NZS4129) , Watermark & WRAS More related products of PP THREAD FITTINGS TEE Production Process of PP THREAD FITTINGS TEE Company Introduction of PP THREAD FITTINGS TEE International Certificate of PP THREAD FITTINGS TEE FAQ of...

ERA Piping Systems, PP Compression Fitting Valves & Filters , PP Compression  Compression True Union Valve , PT015 , WRAS

Model Number:

PT015

Material

PP

Description:

 Compression True Union Valve

Standard

ENISO15874AS/NZS4129

Temperature:

Max 60℃ /140℉

Working Pressure:

PN16 ,16Bar, 1.6Mpa

Size:

20--63mm

Certificate:

WRAS; WATERMARK; CE

Connection:

Socket / BS Thread

Color:

BLACK BODY;BLUE CAP


ERA PN16 PP Compression Reducing tee Plastic Fitting
PP compression fittings
ERA Mechanical Compression Fitting is a fitting that connect piping elements which require physical force to develop a seal or
produce alignment. There are several materials of compression fittings, such as: Steel, Brass, Plastic. The most plastic material
used is PP, there are also PE or PVC compression fittings.
PP compression fittings are widely used in water supply and irrigation. ERA mechanical fittings are made by high quality PP
material with UV protection, both material and fittings are approved use with drinking water. The threaded version is BSP.
The high-quality material used in the product has an application in the area of water distribution, irrigation, swimming pools, and cable conduits.
Specification:
Moreover, our PP Compression Fitting has an optimum sealing which works under all the conditions.
With an adequate combination of these fittings it is possible to design and pressure piping application of fluide with PE pipes
Referenced Standards: EN ISO1587 ; AS/NZS4129

FAQ

1.What is your MOQ?

 Our MOQ is usually 5 CTNS.

2.What is your delievery time?

 The time of delievery is around 30-45days.

3.What is the shipping port?

 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?

 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?

 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?

Our company is located in the Taizhou Zhejiang Province,China.

If you would like to have a visit, you are much welcome.

7.How about the samples?

We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?

1 Genuine produces with excellent quality and competitive price.

2 Cooperating with the customers all over the world and knowing the markets very well.

3 ERA is a listed company. Everything can be rest assured working with us.

4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
