UTV01
ERA PVC compact 3-ways ball valve Plumbing Material Fitting Plastic

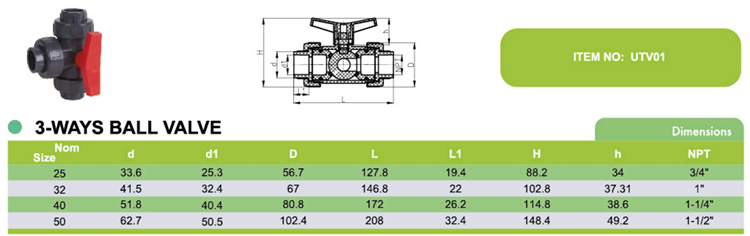

ERA Valves, 3-Ways Ball Valve , UTV01 , PN10 (F1970), NSF-pw & UPC

Model Number:

UTV01

Material

PVC

Description:

3-Ways Ball Valve

Standard

 F1970

Temperature:

Max 82.2℃ /180℉

Working Pressure:

PN10 ,10Bar, 1.0Mpa

Size:

25--50MM

Certificate:

NSF/UPC

Connection:

Socket or Thread

Color:

Light Grey

These  valves are ideal for the following applications:  water parks, fountains, aquariums, light-duty chemical and waste water.
This system is intended for pressure applications where the operating temperature will not exceed 140°F, and work pressure is 1.0 MPa (PN10)
Specification:
PVC valves shall conform to ISO 9393-1:2004. PVC valves shall be manufactured as a system and be the product of one manufacturer.
True union valves have a carrier that can be removed from the piping system when needed. This allows you to repair or replace the carrier without completely disassembling the system, saving time and money.
PVC flanges shall be manufactured from virgid PVC(polyvinyl chloride) vinyl
These discs create a tight seal when pressing two surfaces together using bolts, clamps, edges or a compressive force.

FAQ

1.What is your MOQ?

 Our MOQ is usually 5 CTNS.

2.What is your delievery time?

 The time of delievery is around 30-45days.

3.What is the shipping port?

 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?

 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?

 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?

Our company is located in the Taizhou Zhejiang Province,China.

If you would like to have a visit, you are much welcome.

7.How about the samples?

We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?

1 Genuine produces with excellent quality and competitive price.

2 Cooperating with the customers all over the world and knowing the markets very well.

3 ERA is a listed company. Everything can be rest assured working with us.

4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
