ERA PPR 90° ELBOW,DIN STANDARD FITTINGS FOR HOT AND COLD
ERA PPR 90° ELBOW,DIN STANDARD FITTINGS FOR HOT AND COLD

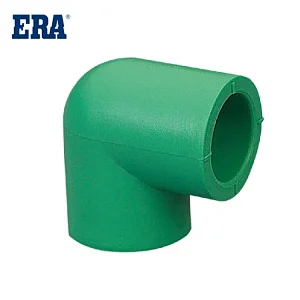

PPR 90° ELBOW
PPR 90° ELBOW
PPR 90° ELBOW
PPR 90° ELBOW
ERA PPR 90° ELBOW,DIN STANDARD FITTINGS FOR HOT AND COLD
PPR 90° ELBOW
PPR 90° ELBOW
PPR 90° ELBOW
PPR 90° ELBOW

PPR 90° ELBOW

PRE02
1. Hygiene: no chemical action, it is a green building material with reliable hygienic performance.
2. The installation is convenient, reliable and time-saving.
3. Heat preservation and energy saving, with little heat loss for hot water pipeline.
4. Light weight, high strength, good toughness and good impact resistance.
5 It is easy to install, and the strength of its connecting part is greater than that of the pipe itself.
6 Materials can be recycled.
PPR DIN PIPES AND FITTINGS
ERA Piping Systems, PPR Pipe Fitting , PPR 90° ELBOW , PRE02, (DIN8077/8088) , DVGW

System:  ERA PPR pipes, due to its high impact strengh and light weight makes it most reliable and sophisticated system to be employed in plumbing applictions and  water supply(hot and cold).

Machines & Moulds:  ERA Co,Ltd has developed over 10,000 sets of different moulds, with 900 advanced injection and over 210 extrusion machines.  Equipments' total value reaches nearly 100 million USD.

FIELDS OF APPLICATION
1. Dual Containment Piping Systems
2. Cooling Water
3. Barge loading and unloading Tank storage
4. For Industrial Gasses
5. Waste water
6. Process Water
7. Reserve osmosis plants

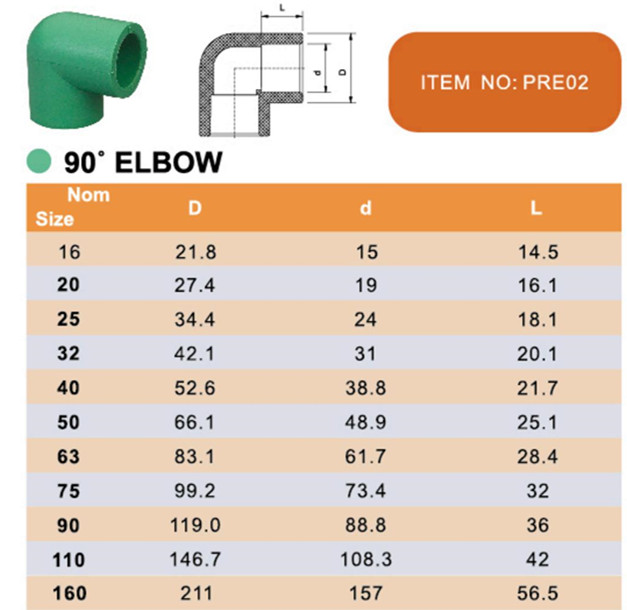

Specification:
Model NumberPR001MaterialPPR
DescriptionPPR 90° ELBOWSize20-160MM
StandardDIN8077/8088ColorGREEN、GREY
BrandERATemperatureMax 95°C / 203°F
ConnectionSocket CertificateDVGW


Main Products

Company introduction
Certificate exhibition
Compared with traditional cast iron pipe, galvanized steel pipe, cement pipe and other pipes, PPR pipe has the advantages of energy saving, environmental protection, light weight, high strength, corrosion resistance, smooth inner wall without scaling, easy construction and maintenance, long service life, etc. Widely used in building water supply and drainage, urban and rural water supply and drainage, urban gas, power and cable sheathing, industrial fluid transport agricultural irrigation and other construction, municipal, industrial and agricultural fields.
