CPVC NBR FITTINGS 45° ELBOW,ABNT NBR 15884 STANDARD PIPES AND FITTINGS
CPVC NBR FITTINGS 45° ELBOW,ABNT NBR 15884 STANDARD PIPES AND FITTINGS

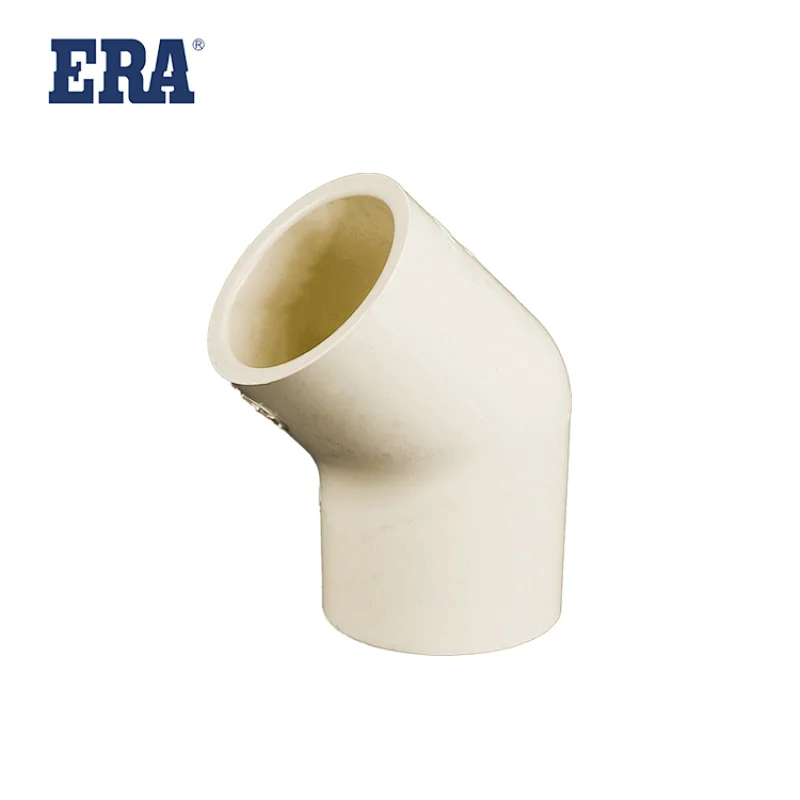

CPVC NBR FITTINGS 45° ELBOW
CPVC NBR FITTINGS 45° ELBOW
CPVC NBR FITTINGS 45° ELBOW
CPVC NBR FITTINGS 45° ELBOW
CPVC NBR FITTINGS 45° ELBOW,ABNT NBR 15884 STANDARD PIPES AND FITTINGS
CPVC NBR FITTINGS 45° ELBOW
CPVC NBR FITTINGS 45° ELBOW
CPVC NBR FITTINGS 45° ELBOW
CPVC NBR FITTINGS 45° ELBOW

CPVC NBR FITTINGS 45° ELBOW

CPB001
1. High strength, positive atmosphere, smoke suppression, heat resistance and long service life
2. Better performance price ratio
3. Light weight, convenient transportation and installation;
4. Convenient construction with significant economic benefits, reasonable design and convenient construction
5 Excellent corrosion resistance
6. Good flame retardancy, no dripping during combustion, slow combustion and diffusion, no toxic gas.
7. Good flexibility, easy installation, can be connected with solvent.
CPVC NBR PIPES AND FITTINGS
ERA Piping Systems, CPVC Pipe Fitting, 45° ELBOW , CPB001, NBR(ABNT NBR 15884) , NSF-pw & UPC

System:  ERA CPVC has a rated working pressure of 100 PSI at 180 degrees Fahrenheit and 400 PSI at 73 degrees Fahrenheit.Makes the job site safer by eliminating the need for an open flame to solder the joints together.

Scope:  The CPVC pipe has comparable corrosion resistance to PVC pipe yet it is suitable for handling corrosive material at temps 40 to 60 deg F higher than PVC.
CPVC fire sprinkler piping systems are approved for light hazard applications and for use in single and multifamily dwellings.

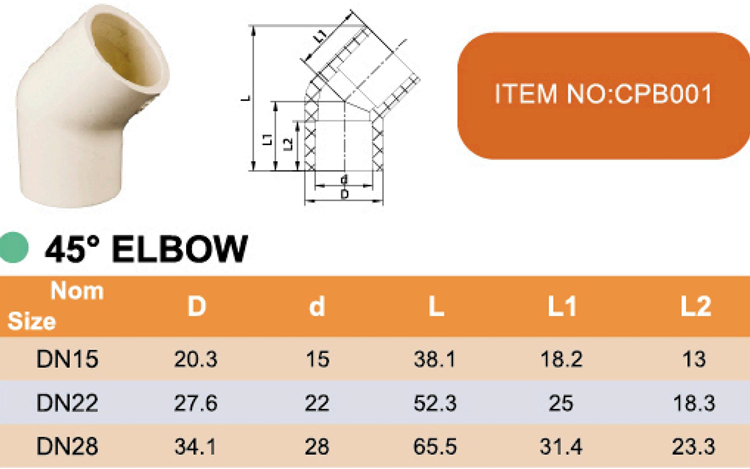

Specification
Model NumberCPB001MaterialCPVC
Description45° ELBOWSizeDN15-28
StandardNBR(ABNT NBR 15884)ColorIvory color
BrandERATemperatureMax82.2°C / 180°F
ConnectionSocket or ThreadCertificateNSF、UPC


Company introduction
Certificate exhibition
CPVC pipe is used in civil water supply, hot water system, pipe direct drinking water system, commercial pure water system, deionized water system for electronic industry, pure water system for medical kidney washing, cold and hot water system for air conditioning and other fields. In recent years in our country civil building water supply system especially in hot water system also obtains more and more applications.
