ERA BRANDPPR Stop Valve (screw End),DIN8077/8088 STANDARD PPR FITTINGS
ERA BRANDPPR Stop Valve (screw End),DIN8077/8088 STANDARD PPR FITTINGS

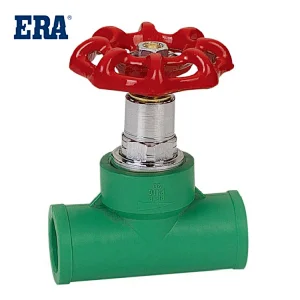

PPR Stop Valve (screw End)
PPR Stop Valve (screw End)
PPR Stop Valve (screw End)
PPR Stop Valve (screw End)
ERA BRANDPPR Stop Valve (screw End),DIN8077/8088 STANDARD PPR FITTINGS
PPR Stop Valve (screw End)
PPR Stop Valve (screw End)
PPR Stop Valve (screw End)
PPR Stop Valve (screw End)

PPR Stop Valve (screw End)

PR011
1. PPR pipe is light in weight, corrosion resistant, non scaling, long in service life and convenient in installation. PP-R has good welding performance. Pipes and pipe fittings can be connected by hot melting and electric melting. The device is convenient, and the strength of the connection part is greater than the strength of the pipe itself.
2. PPR pipe insulation and energy saving. Its thermal conductivity is 0.21w/mk, which is only 1/200 of that of steel pipe. Vicat softening point of PPR pipe is 131.5 ℃. The maximum working temperature can reach 95 ℃, which can meet the application requirements of hot water system in building water supply and drainage standards.
3. PPR tube is non-toxic and sanitary. The raw material molecules of PP-R are only carbon and hydrogen, and there are no harmful and toxic elements. They are sanitary and can be used not only for cold and hot water pipes, but also for pure drinking water systems.
4. PPR pipe materials can be recycled for application. PP-R waste is recycled and used for pipe and pipe fittings consumption after cleaning and crushing. The amount of recycled materials shall not exceed 10% of the total amount, which will not affect the output and quality.
PPR pipes are widely used in building water supply and drainage, urban and rural water supply and drainage, urban gas, electric power and optical cable sheath, industrial fluid escort, agricultural irrigation and other construction, municipal, industrial and agricultural areas.
PPR DIN PIPES AND FITTINGS
ERA Piping Systems, PPR Pipe Fitting ,STOP VALVE,PR011,(DIN8077/8088) , DVGW

PPR pipe is non-decaying and non-deforming and even frost proof due to very little heat losses from the pipe surface. PPR pipe is non-decaying and non-deforming and even frost proof due to very little heat losses from the pipe surface.

This raw material is recommended for the production of pressure pipes including potable water transfer lines, hot and cold water transfer lines, floor heating and also for chemical industry application.

Scope:

ERA brand PPR pipes are suitable for transferring or discharging chemical media, such as industrial piping system.

It can use for hot and cold water system in residential, commercial, industial and other projects.

No gradual descrution of the material by any chemical which makes it Non corrosive in nature.

Specification:

PPR has been designed and produced as a piping system for hot and cold water supply as well as for heating applications.

These PPR systems have a high temperature and pressure resistance and are suitable for drinking water.

Referenced Standards:  DIN 8077&DIN8078  DVGW examination certificate

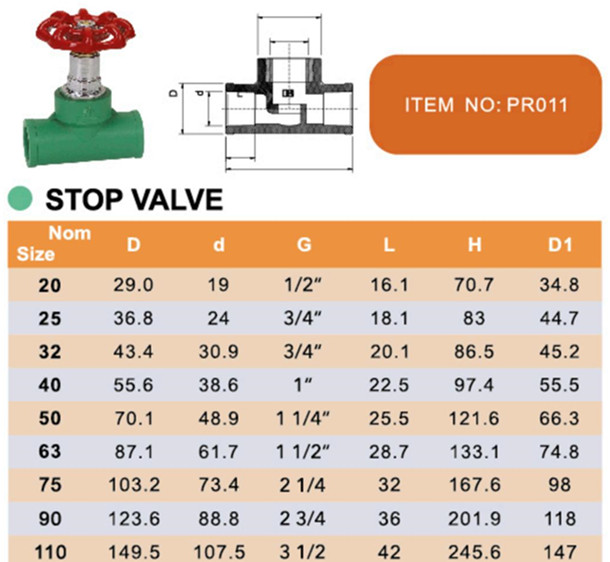

Specification:
Model NumberPR011MaterialPPR
DescriptionPPR STOP VALVESize20-110MM
StandardDIN8077/8088ColorGREEN、GREY
BrandERATemperatureMax 95°C / 203°F
ConnectionSocket CertificateDVGW

Main Products

Company introduction
Certificate exhibition
Compared with traditional cast iron pipe, galvanized steel pipe, cement pipe and other pipes, PPR pipe has the advantages of energy saving, environmental protection, light weight, high strength, corrosion resistance, smooth inner wall without scaling, easy construction and maintenance, long service life, etc. Widely used in building water supply and drainage, urban and rural water supply and drainage, urban gas, power and cable sheathing, industrial fluid transport agricultural irrigation and other construction, municipal, industrial and agricultural fields.
