UTB01
ERA Valves, PVC TRUE UNION BALL VALVE, UTB01, PN10 (F1970), NSF-pw & UPC System: Ball valve has dual o-ring stem design. May be installed on Sch. 40 or 80 PVC pipe These valves are ideal for the following applications: water parks, fountains, aquariums, light-duty chemical and waste water....

ERA check valve, PVC TRUE UNION BALL VALVE, UTB01, PN10 (F1970), NSF-pw & UPC System: PVC VALVE has dual o-ring stem design. May be installed on Sch. 40 or 80 PVC pipe These valves are ideal for the following applications: water parks, fountains, aquariums, light-duty chemical and waste water....
ERA PVC VALVE,  PVC  TRUE UNION BALL VALVE, UTB01, PN10 (F1970), NSF-pw & UPC
Ball valve has dual o-ring stem design. May be installed on Sch. 40 or 80 PVC VALVE pipe These  valves are ideal for the following applications:  water parks, fountains, aquariums, light-duty chemical and waste water.
Specification:
Our true union ball valves,check valve are made from durable dark gray PVC and have an easy-to-grip red handle that turns with minimal effort.
This allows you to repair or replace the carrier without completely disassembling the system, saving time and money.
PVC check valve shall be manufactured from virgid PVC(polyvinyl chloride) vinyl compounds.
Scope:
Ball valve/check valve has dual o-ring stem design. May be installed on Sch. 40 or 80 PVC pipe.
Full port allowing maximum flow and minimum pressure drop or turbulence

Charaterisitic: The valve body has light weight, strong corrosion resistance, compact and beautiful appearance, light weight and easy installation, strong corrosion resistance, wide application range, sanitary and non-toxic material, wear resistance, easy disassembly, simple and easy maintenance.

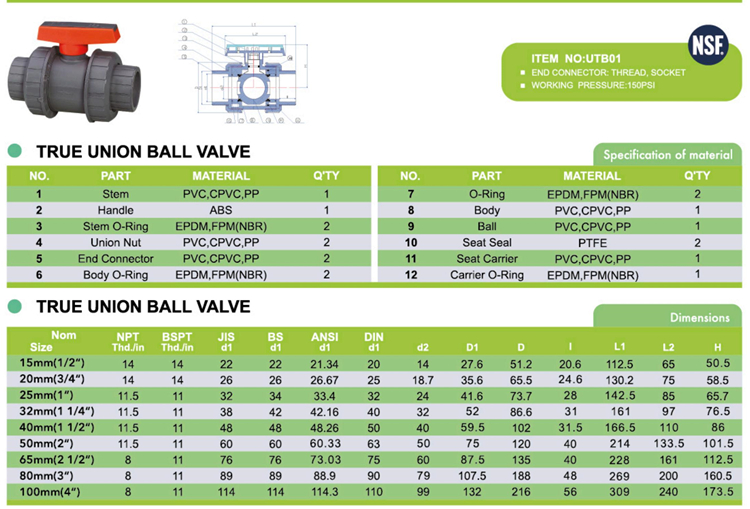

Products Description

Model Number:

UTB01

Material

PVC

Description:

BALL CHECK VALVE

Standard

F1970

Temperature:

Max 82.2℃ /180℉

Working Pressure:

PN10 ,10Bar, 1.0Mpa

Size:

1/2’’—4’’

Certificate:

NSF/UPC

Connection:

Socket or Thread

Color:

Light Grey
