ERA PVC VALVE, PVC True Union Ball Valve Ⅲ, UTB03, PN10 (F1970), NSF-pw & UPC Scope: True Union Ball Valve have a carrier that can be removed from the piping system when needed. Our true union ball valves are made from durable dark gray PVC VALVE and have an easy-to-grip red handle that turns with...
Our True Union Ball Valve are made from durable dark gray PVC VALVE and have an easy-to-grip red handle that turns with minimal effort
Scope:
True Union Ball Valve have a carrier that can be removed from the piping system when needed.

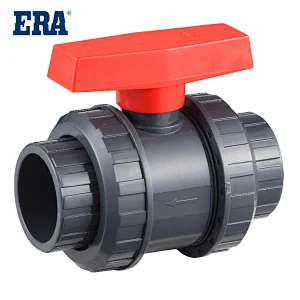

Our True Union Ball Valve are made from durable dark gray PVC VALVE and have an easy-to-grip red handle that turns with minimal effort.
PVC valves shall conform to ISO 9393-1:2004. PVC VALVE shall be manufactured as a system and be the product of one manufacturer.
System:
For use with distribution of pressurized liquids, which are chemically compatible with piping materials
Our True Union Ball Valve are not only durably and made from a heavy duty material - but also a very affordable and economic option to your project or service need.

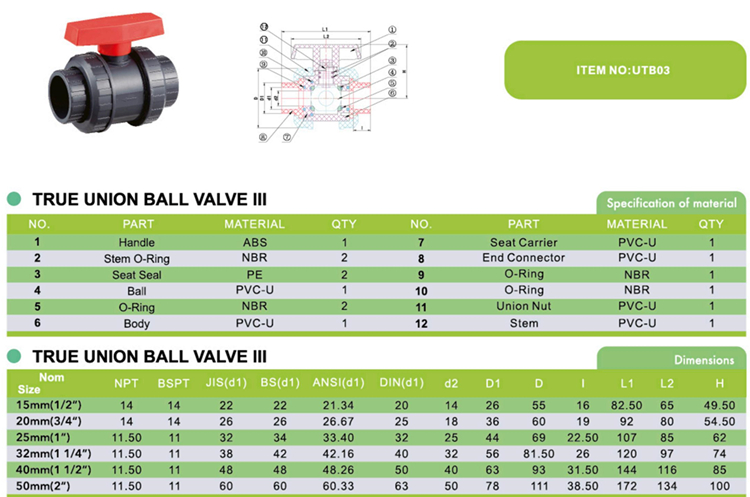

Specification:
Full port allowing maximum flow and minimum pressure drop or turbulence
Easy turn handle means no pliers or breakage while turning on/off, and it's replaceable!
Model Number: | UTB03 | Material | PVC |
Description: | PVC True Union Ball Valve Ⅲ | Standard | F1970 |
Temperature: | Max 82.2℃ /180℉ | Working Pressure: | PN10 ,10Bar, 1.0Mpa |
Size: | 1/2’’—2’’ | Certificate: | NSF/UPC |
Connection: | Socket or Thread | Color: | Light Grey |
Product Certificate
