USU01
ERA Valves, PVC SINGLE UNION BALL VALVE,USU01, PN10 (F1970), NSF-pw & UPC System: A quarter-turn of the handle fully opens or closes the valve for quick shutoff. Easy turn handle means no pliers or breakage while turning on/off, and it's repla A quarter-turn of the handle fully opens or...

ERA PVC VALVE, PVC SINGLE UNION BALL VALVE,check valve,USU01, PN10 (F1970), NSF-pw & UPC System: A quarter-turn of the handle fully opens or closes the valve for quick shutoff. Easy turn handle means no pliers or breakage while turning on/off, and it's repla A quarter-turn of the handle fully opens or...
ERA PVC VALVE, check valve,PVC SINGLE UNION BALL VALVE,USU01, PN10 (F1970), NSF-pw & UPC

System:
A quarter-turn of the handle fully opens or closes the valve for quick shutoff.
Easy turn handle means no pliers or breakage while turning on/off, and it's repla
A quarter-turn of the handle fully opens or closes the check valve for quick shutoff.
Specification:
Please note - as temperature increases, working pressure decreases, the optimal working pressure for PVC VALVE is 150 psi at 73°F (22°C).
For use with distribution of pressurized liquids, which are chemically compatible with piping materials
Scope:
This allows you to repair or replace the carrier without completely disassembling the system, saving time and money.
Our check valve /true union ball valves are made from durable dark gray PVC VALVE and have an easy-to-grip red handle that turns with minimal effort.

Charaterisitic: The valve body has light weight, strong corrosion resistance, compact and beautiful appearance, light weight and easy installation, strong corrosion resistance, wide application range, sanitary and non-toxic material, wear resistance, easy disassembly, simple and easy maintenance.

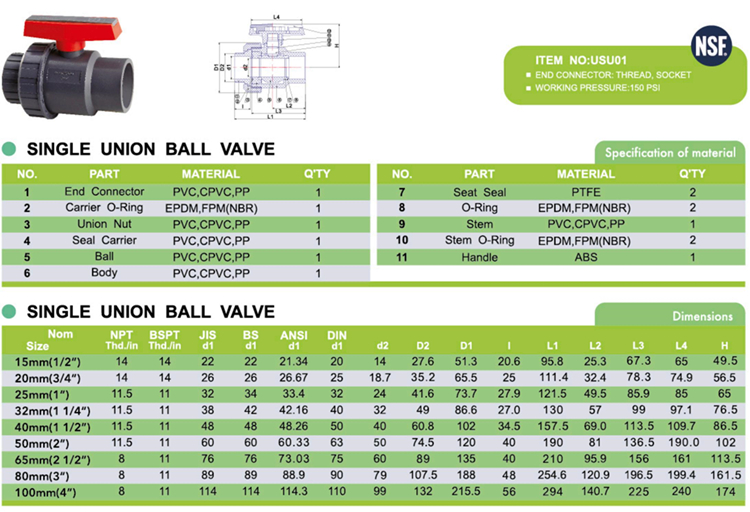

Products Description

Model Number:

USU01

Material

PVC

Description:

PVC Single Union Ball Valve

Standard

 F1970

Temperature:

Max 82.2℃ /180℉

Working Pressure:

PN10 ,10Bar, 1.0Mpa

Size:

1/2’’—4’’

Certificate:

NSF/UPC

Connection:

Socket or Thread

Color:

Light Grey

Product Certificate


Our Services:

1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder
