ERA PVC VALVE, PVC MALE Single Union Ball Vale, USU04, PN10 (F1970), NSF-pw & UPC Scope: This allows you to repair or replace the carrier without completely disassembling the system, saving time and money. Our true union ball valves are made from durable dark gray PVC and have an easy-to-grip...
ERA PVC VALVE, Single Union Ball Vale,PVC SINGLE UNION BALL VALVE,USU01, PN10 (F1970), NSF-pw & UPC
This allows you to repair or replace the carrier without completely disassembling the system, saving time and money.
Our true union ball valves are made from durable dark gray PVC and have an easy-to-grip red handle that turns with minimal effort
System:
A quarter-turn of the handle fully opens or closes the valve for quick shutoff.
Easy turn handle means no pliers or breakage while turning on/off, and it's repla
A quarter-turn of the handle fully opens or closes the check valve for quick shutoff.
Specification:
Please note - as temperature increases, working pressure decreases, the optimal working pressure for PVC VALVE is 150 psi at 73°F (22°C).
For use with distribution of pressurized liquids, which are chemically compatible with piping materials
Scope:
This allows you to repair or replace the carrier without completely disassembling the system, saving time and money.
Our Single Union Ball Vale/true union ball valves are made from durable dark gray PVC VALVE and have an easy-to-grip red handle that turns with minimal effort.
Serve
1.Any inquiries will be replied within 24 hours.
2.Professional manufacturer.
3.OEM is available.
4.High quality,standard designs,reasonable&competitive price,fast lead time.
5.Faster delivery:Sample will be prepared in 2-3days.
6.Shipping:We have strong cooperation with DHL,TNT,UPS,MSK,China Shipping,etc.
7.You can also choose your own shipping forwarder.

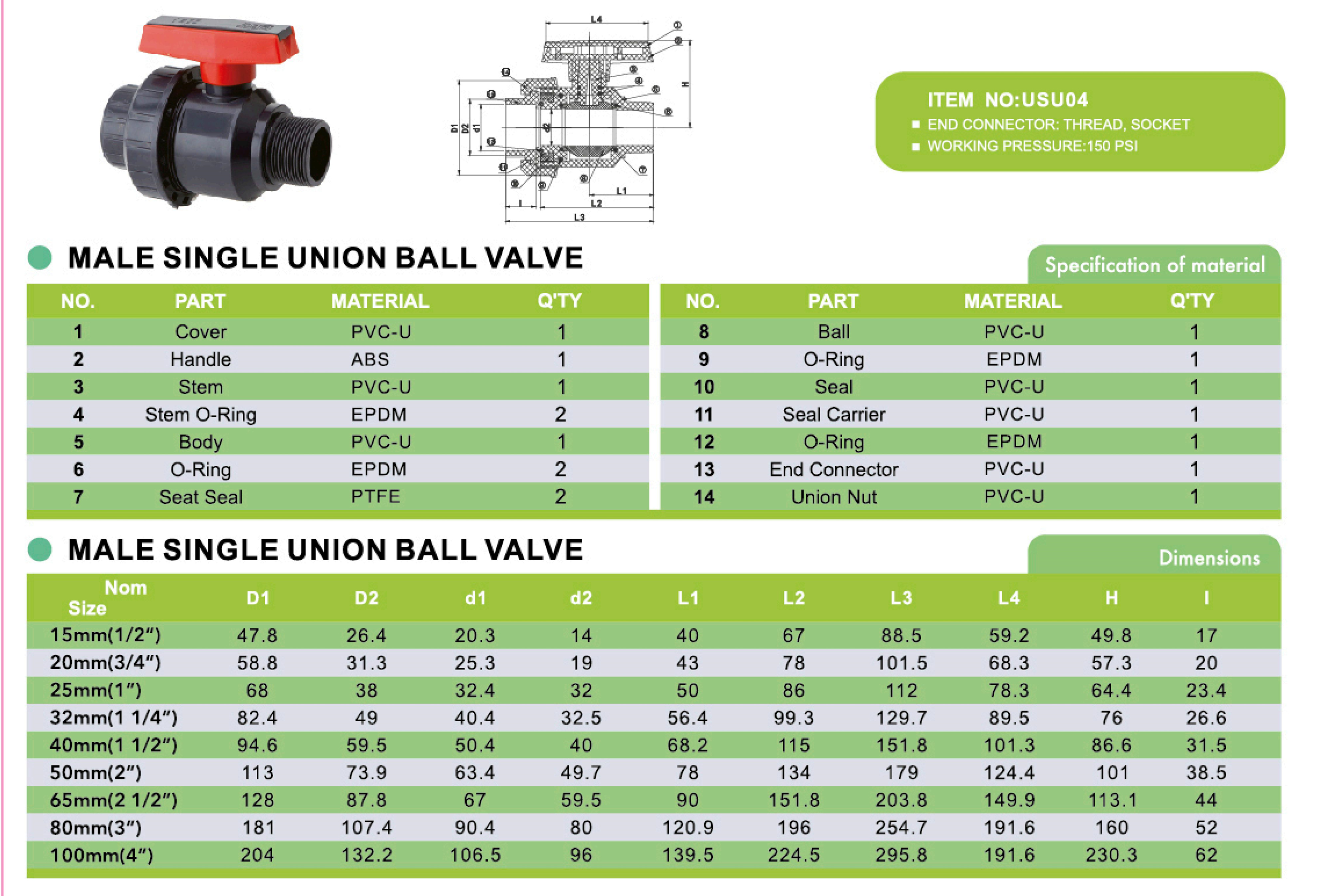

Products Description
Model Number: | USU04 | Material | PVC |
Description: | PVC Male Single Union Ball Valve | Standard | F1970 |
Temperature: | Max 82.2℃ /180℉ | Working Pressure: | PN10 ,10Bar, 1.0Mpa |
Size: | 1/2’’—4’’ | Certificate: | NSF/UPC |
Connection: | Socket or Thread | Color: | Light Grey |
Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
