System: PVC VALVE System ,PLASTIC VALVES AND FITTINGS
Scope: This specification covers PVC ball valve for pressure applications. This system is Intended for pressure applications where the operating temperature will not exceed 140°F, and work pressure is 1.0 MPa (PN10)
Please note - as temperature increases, working pressure decreases, the optimal working pressure for PVC valves is 150 psi at 73°F (22°C).
These ball valve are ideal for the following applications: water parks, fountains, aquariums, light-duty chemical and waste water.
Specification: PVC VALVES shall be manufactured from virgid
PVC(polyvinyl chloride) vinyl compounds.
PVC VALVES shall conform to ISO 9393-1:2004. PVC VALVES shall be manufactured as a system and be the product of one manufacturer.
Characterisitic:The valve body has light weight, strong corrosion resistance, compact and beautiful appearance, light weight and easy installation, strong corrosion resistance, wide application range, sanitary and non-toxic material, wear resistance, easy disassembly, simple and easy maintenance.
Referenced Standards: ISO 9393-1:2004.
Products Description

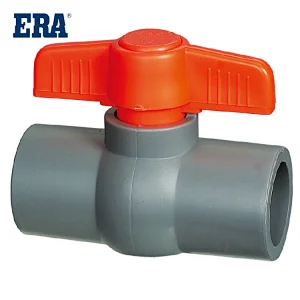

Model Number: | UCB01 | Material | PVC |
Description: | COMPACT BALL VALVE | Standard | NSF |
Temperature: | Max 82.2℃/180℉ | Working Pressure: | PN10 ,10Bar, 1.0Mpa |
Size: | 1/2’’—6’’ | Certificate: | NSF/UPC |
Connection: | Socket or Thread | Color: | Light Grey |
