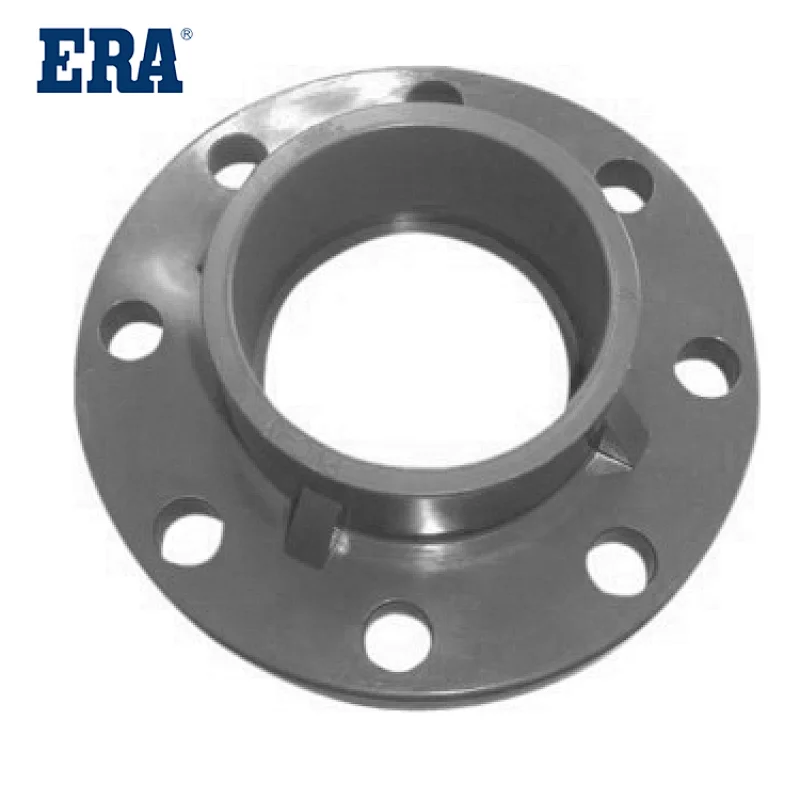

ERA Valves, CPVC TS FLANGE, CTF01, (ASTM F1970), NSF-pw & UPC
System:
Do not use or test with compressed air or other gases
A CPVC ball valve is an excellent tool for easy open and closed control of water flow, as well as other liquids.
Scope:
Our TUBVs are top quality with easy-to-remove union ends for valve servicing.
The CPVC Solvent-Weld Ball Valve can be used for various applications such as: water supply, building, housing, factory and marine equipment, water and waste treatment, chemical plants, agriculture, irrigation, and multiple industrial uses.
Specification:
CPVC valves shall conform to ISO 4422-4. ASTM F1970-05. CPVC valves shall be manufactured as a system and be the product of one manufacturer.
Excellent flow characteristics. Seats: PTFE. Seals: EPDM. Suitable for hot water systems.
Model Number: | CTF01 | Material | CPVC |
Description: | TS Flange | Standard | ASTM F1970 |
Temperature: | Max 82.2℃ /180℉ | Working Pressure: | PN10 ,10Bar, 1.0Mpa |
Size: | 1/2’’—4’’ | Certificate: | NSF/UPC |
Connection: | Socket or Thread | Color: | Light Grey |
Features:
1, the valve light weight, corrosion resistance is strong, is used in many fields, such as pure water and raw drinking water piping system, drainage and sewage piping system, salt water and seawater piping system, acid and alkali and chemical solution system and other industries.
2. Compact and beautiful appearance.
3. The body is light and easy to install.
4, strong corrosion resistance, wide application range.
5, the material is hygienic and non-toxic.
6, wear resistance, easy disassembly, easy maintenance.
