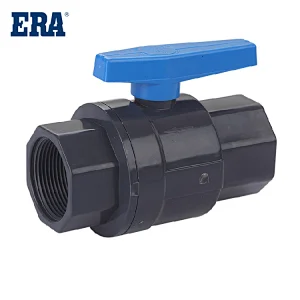

PVC Two Pcses Ball Valve

PVC Two Pcses Ball Valve

ERA Valves, PVC TWO PCSES BALL VALVE, UCB05, PN10 (F1970), NSF-pw & UPC Scope: Easy turn handle means no pliers or breakage while turning on/off, and it's replaceable! For use with distribution of pressurized liquids, which are chemically compatible with piping materials This...

Send Inquiry
Product Details

ERA  Valves,   PVC TWO PCSES BALL VALVE, UCB05, PN10 (F1970), NSF-pw & UPC


Scope:

Easy turn handle means no pliers or breakage while turning on/off, and it's replaceable!

For use with distribution of pressurized liquids, which are chemically compatible with piping materials

This specification covers PVC valves for pressure applications. This system is Intended for pressure applications where the operating temperature will not exceed 140°F, and work pressure is 1.0 MPa (PN10)

Specification:

PVC valves shall be manufactured from virgid PVC(polyvinyl chloride) vinyl compounds.

True union valves have a carrier that can be removed from the piping system when needed. This allows you to repair or replace the carrier without completely disassembling the system, saving time and money.

Our true union ball valves are made from durable dark gray PVC and have an easy-to-grip red handle that turns with minimal effort.

Referenced Standards:  ISO 9393-1:2004.
